APLEX AEx Series. ATEX Certified Panel PCs

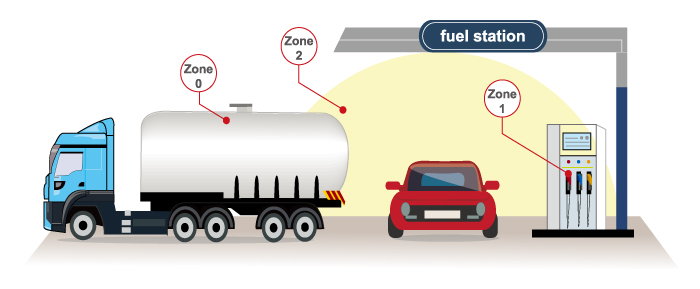

In a potentially volatile atmosphere, an explosion can occur when various elements exist: flammable and combustible/comburent substances and a source of ignition.

ATEX Certified Panel PCs

In a potentially volatile atmosphere, an explosion can occur when various elements exist: flammable and combustible/comburent substances and a source of ignition. In these atmosphere’s, electrical or electronics-based equipment needing to be operational are required to strictly adhere to high levels of safety with relevant certifications in place

ATEX Certified Panel PCs

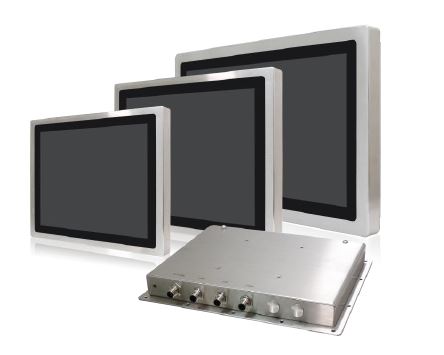

ATEX approved & certified Panel PCs are now available from BVM in 15”, 15.6”, 19”, 21.5” TFT LCD size and support projected capacitive touch screens with 7H anti-scratch surfaces. The AEx series is provided with a different level of computing performance, possessing a high safety certification to ensure that every element of the PC operates safely with any environment where an intrinsically safe device is required for deployment.

ATEX Certified Panel PCs

The AEx series are explosion-proof solutions that possesses Class 1 Division 2, ATEX Zone 2/IECEx C1 D2 certification.

EnvironmentATEX Certified Panel PCs

The AEx series adopt stainless steel SUS316, IP66 dust and water-proof enclosures with M12 connectors, additionally providing the following features :-

  • Wide range power input (9V~36V DC)
  • Sunlight readability, up to 1000 nits brightness with AR/AG/Anti-UV glass
  • Operation with a wide temperature range (-20℃~60℃)

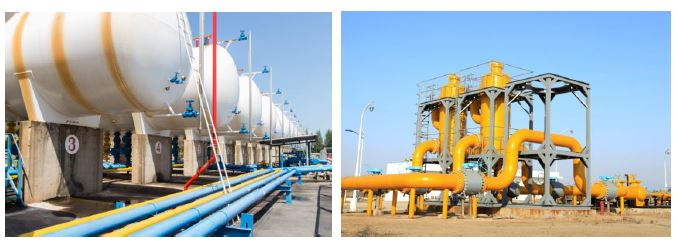

The AEx series is also capable of withstanding vibration, shock & corrosion and can be utilised in the harshest of environments where the presence of volatile gases or vapour substances are unavoidable.

Depending on the complexity of your application, the AEx series provides for high performance and entry-level system solutions to address your needs. The AEx-9XXAP series and AEx-2411 are powered by 6th Gen. Intel Core i3/i5/i7 processors (Skylake) with 1 x DDR4 SO-DIMM slot up to 16GB; AEx-8XXP and AEx-2410 are powered by Intel N2930 (Celeron) processors with onboard 4GB DDR3L (with an option for 8GB, too).

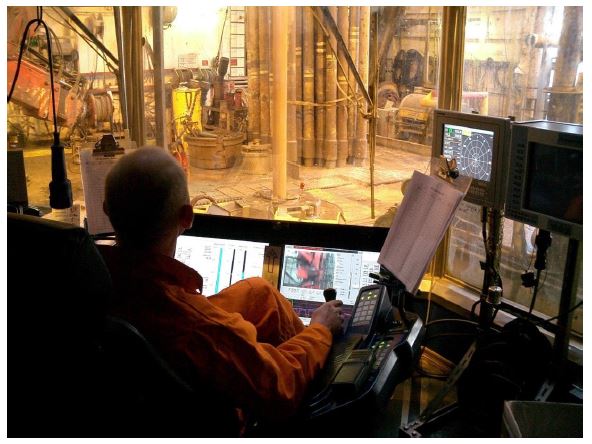

From collecting data, asset monitoring and inspection, real-time control with communication and notifications, to operation in a central control room, the AEx series guarantees a higher performance and brilliant graphical experience for SCADA based applications.

ATEX Certified Panel PCs

Modular Design Reduces Costs and Downtime

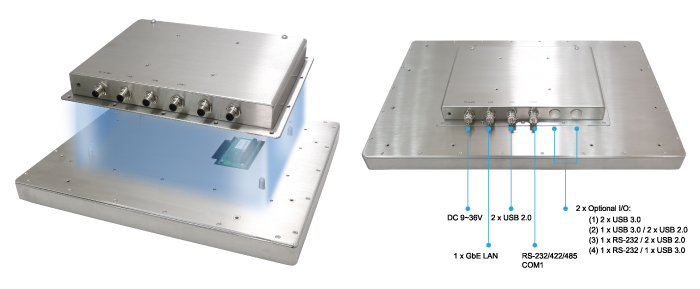

The AEx series utilises a modular design which comprises of a display and system PC for easy assembly. The two-piece modular design enables easy change out of key components parts providing for  minimum of downtime and consequent reduction in maintenance costs.

Multi-functionality with a Variety of I/O Interface

The AEx series provides for flexible I/O options including standard external interfaces as well as an optional I/O selection to meet all your application requirements in areas such as oil & gas, mining & quarrying.

Main Features

ATEX Certified Panel PCs

  • 6th Intel Core i3/i5 Processor (AEx-9XXAP)
  • Intel Celeron N2930 Processor (AEx-8XXP)
  • SUS316 Stainless Steel
  • IP66 Grade with M12 Waterproof Connector
  • Variety of I/O – standard and optional
  • Wide range DC9~36V Power Input
  • Supports Panel Mount & VESA Mount application
  • Supports Projected Capacitive Touch
  • Full Flat Bezel and Fanless Design
  • ATEX Zone 2, IECEx and C1D2 Certification.
