Commell LP-177 Pico-ITX Embedded – Apollo Lake

• Commell LP-177 – Pico-ITX Embedded Intel Apollo Lake EBC – Celeron – N4200 N3350
• CPU: Intel Apollo Lake series Processor N3350 / N4200 / x7-E3950, FCBGA1296 package.
• Memory: One DDR3L (support 1.35V) 1866 SO-DIMM up to 8GB
• Integrated Graphics: Intel integrated HD Graphics
• LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V / +5V supply
• Serial ATA: Support 1 x SATA3 with 600MB/s (6Gb/s) transfer rate
• Audio: Realtek ALC262 HD Audio
• LAN Interface: 2 x Intel I210-AT Gigabit LAN
• Extended interface: One PCIE mini card socket or mSATA.

Compare

Description

  • CPU: Intel Apollo Lake series Processor N3350 / N4200 / x7-E3950, FCBGA1296 package.
  • Memory: One DDR3L (support 1.35V) 1866 SO-DIMM up to 8GB
  • Integrated GraphicsIntel integrated HD Graphics
  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V / +5V supply
  • Serial ATA: Support 1 x SATA3 with 600MB/s (6Gb/s) transfer rate
  • AudioRealtek ALC262 HD Audio
  • LAN Interface2 x Intel I210-AT Gigabit LAN
  • Extended interface: One PCIE mini card socket or mSATA.
  • Internal I/O: 1 x SATA3, 1 x LVDS, 1 x LCD inverter, 1 x PS/2, 2 x RS232, 1 x LPC, 1 x SMBUS, 1 x Audio, 2 x USB2.0,  1 x DC Out
  • Rear I/O: 2 x RJ45, 2 x USB 3.0, 1 x HDMI, 1 x Display Port(Optional)
  • Power: DC input 5V ± 5%

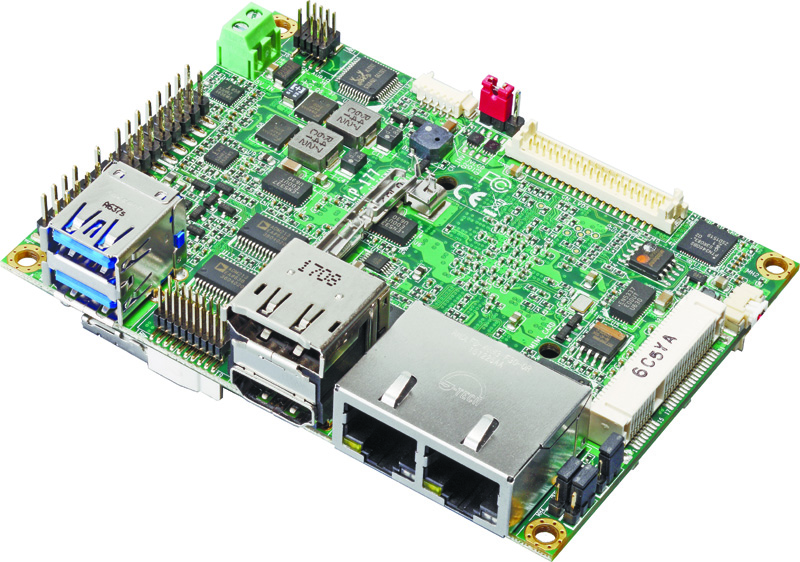

LP-177-3D8

Overview



Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Pico-ITX form factor LP-177 consists of the Intel Apollo Lake Series, combined with the Intel  Express chipset, Integrated Intel integrated HD Graphics Technology with integrated memory. The COMMELL LP-177 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defence, transportation and industrial automation application.

The LP-177 Pico-ITX Motherboard is designed for Intel Apollo Lake series processors supporting one DDR3L SO-DIMM up to 8GB and running 1866 MHz No ECC function. The platform is based on Intel integrated HD Graphics Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LP-177 integrated optional Display port, HDMI, LVDS for Triple display supports to provide its advanced solutions for imaging, machine vision and digital signage applications.

LP-177 offers lots of features including high-speed data transfer interfaces such as 2 x USB 3.0equipped with one Gigabit Ethernet, and it comes with PS/2 Keyboard and Mouse port, 2 x RS232, 2 x USB2.0, Intel High Definition Audio,  one PCIE Mini card socket or mSATA.



Specification

Form Factor Pico-ITX Motherboard
CPU Intel Pentium Core processor N4200, 2.50 GHz  ( LP-177N4  series )
Intel Celeron Core processor N3350, 2.40 GHz  ( LP-177N3  series )
Intel Atom x7-E3950  processor , 2.00 GHz  ( LP-177E  series )
Memory 1 x 204-pin DDR3L (support 1.35V) 1866 SO-DIMM up to 8GB
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset internal timer for 1min/s ~ 255min/s
Integrated Graphics Intel integrated HD Graphics
LVDS Interface Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/ +5V supply
Serial ATA Interface 1 x SATA3 with 600MB/s (6Gb/s) transfer rate
Audio Interface Realtek ALC262 HD Audio
LAN Interface 2 x Intel I210-AT Gigabit LAN
Expansion Interface 1 x PCIE Mini card or mSATA
Internal I/O 1 x SATA3, 1 x LVDS, 1 x LCD inverter, 1 x PS/2, 2 x RS232, 1 x LPC, 1 x SMBUS, 1 x Audio, 2 x USB2.0, 1 x DC Out
Rear I/O 1 x RJ45, 2 x USB 3.0, 1 x HDMI, 1 x Display Port(Optional)
Power Requirement DC input 5V ± 5%
Size & Thickness 100mm x 72mm (L x W)
 Temperature Operating within 0°C ~ 60°C (32°F~140°F)
Storage within -20°C~ 80°C (-4°F~176°F)
(For LP-177 N3350/N4200 Series)
Operating within -40°C ~ 85°C (-40°F~185°F)
Storage within -40°C~ 85°C (-40°F~185°F)
(For LP-177 x7-E3950 Series)
Relative Humidity  10%~90%, non-condensing



Ordering Information
LP-177PN4S Intel Pentium Core Processor N4200 + Heat spreader,   support HDMI, LVDS, DP
LP-177TN4S Intel Pentium Core Processor N4200 + Heat spreader,   support HDMI, LVDS, Header for VGA/ 2nd LVDS (Note)
LP-177PN3S Intel Celeron Core Processor N3350 + Heat spreader,   support HDMI, LVDS, DP
LP-177TN3S Intel Celeron Core Processor N3350 + Heat spreader,   support HDMI, LVDS, Header for VGA/ 2nd LVDS (Note)
LP-177PN4F Intel Pentium Core Processor N4200 + Cooler Fan,  support HDMI, LVDS, DP
LP-177TN4F Intel Pentium Core Processor N4200 + Cooler Fan, support HDMI, LVDS, Header for VGA/ 2nd LVDS (Note)
LP-177PN3F Intel Celeron Core Processor N3350 + Cooler Fan,  support HDMI, LVDS, DP
LP-177TN3F Intel Celeron Core Processor N3350 + Cooler Fan, support HDMI, LVDS, Header for VGA/ 2nd LVDS (Note)
LP-177PEF Intel Atom x7-E3950 Processor + Cooler Fan,  support HDMI,LVDS, DP
LP-177TEF Intel Atom x7-E3950 Processor + Cooler Fan, support HDMI,LVDS, Header for VGA/ 2nd LVDS (Note)
 ADP-3355 NB DP to VGA Adapter, without bracket
ADP-3460 DP to LVDS Adapter (For 2nd LVDS)
DC-DC6 DC 12V to DC 5V, 40W Converter Module with Heat spreader, Terminal block, provides 12V connector for LCD inverter
LP-177P(T)N4S-8G Same as  LP-177P(T)N4S, but with DDR3L/8G
LP-177P(T)N3S-8G Same as  LP-177P(T)N3S, but with DDR3L/8G
LP-177P(T)N4F-8G Same as  LP-177P(T)N4F, but with DDR3L/8G
LP-177P(T)N3F-8G Same as  LP-177P(T)N3F, but with DDR3L/8G
    Note: There are two modules (ADP3355,ADP3460), and you can choose one to support   VGA / 2nd LVDS
