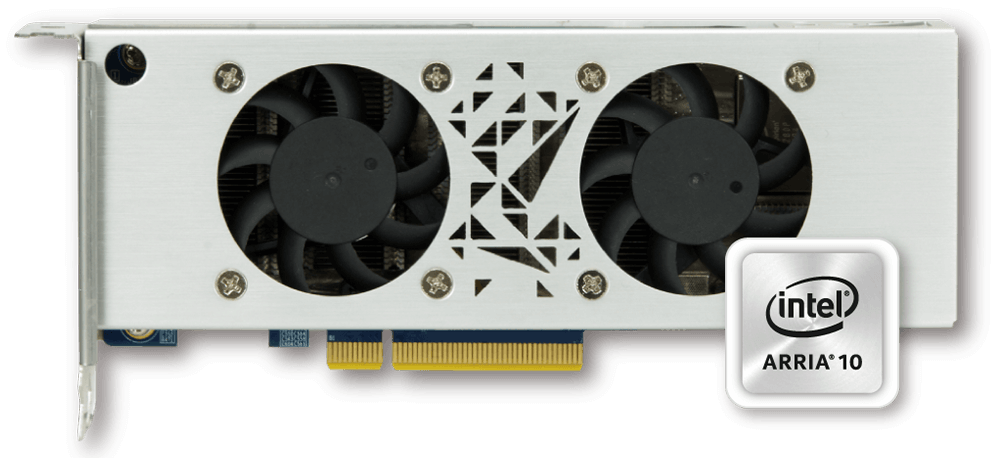

IEI Mustang-F100-A10 – FPGA Accelerator Card
• IEI – Mustang-F100-A10 – FPGA Accelerator Card
• PCIe FPGA Highest Performance Accelerator Card with Arria 10 1150GX support DDR4 2400Hz 8GB, PCIe Gen3 x8 interface
• Half-Height, Half-Length, Double-Slot.
• Power-efficiency, low-latency.
• Supported OpenVINO toolkit, AI edge computing ready device.
• FPGAs can be optimized for different deep learning tasks.
• Intel FPGAs supports multiple float-points and inference workloads.
Description
Mustang-F100-A10
Accelerate To The Future
Intel Vision Accelerator Design with Intel Arria 10 FPGA.
A Perfect Choice for AI Deep Learning Inference Workloads
Powered by Open Visual Inference & Neural Network Optimization (OpenVINO) toolkit
- Half-Height, Half-Length, Double-Slot.
- Power-efficiency, low-latency.
- Supported OpenVINO toolkit, AI edge computing ready device.
- FPGAs can be optimized for different deep learning tasks.
- Intel FPGAs supports multiple float-points and inference workloads.
OpenVINO toolkit
OpenVINO toolkit is based on convolutional neural networks (CNN), the toolkit extends workloads across Intel hardware and maximizes performance.
It can optimize pre-trained deep learning model such as Caffe, MXNET, Tensorflow into IR binary file then execute the inference engine across Intel-hardware heterogeneously such as CPU, GPU, Intel Movidius Neural Compute Stick, and FPGA.
Applications
 |
 |
| Machine Vision | Smart Retail |
 |
 |
| Surveillance | Medical Diagnostics |
Features
- Operating Systems
- Ubuntu 16.04.3 LTS 64bit, CentOS 7.4 64bit (Support Windows 10 in the end of 2018 & more OS are coming soon)
- OpenVINO toolkit
- Intel Deep Learning Deployment Toolkit
- Model Optimizer
- Inference Engine
- Optimized computer vision libraries
- Intel Media SDK
- *OpenCL graphics drivers and runtimes.
- Current Supported Topologies: AlexNet, GoogleNet, Tiny Yolo, LeNet, SqueezeNet, VGG16, ResNet (more variants are coming soon)
- Intel FPGA Deep Learning Acceleration Suite
- High flexibility, Mustang-F100-A10 develop on OpenVINO toolkit structure which allows trained data such as Caffe, TensorFlow, and MXNet to execute on it after convert to optimized IR.
*OpenCL is the trademark of Apple Inc. used by permission by Khronos
Specifications
| Model Name | Mustang-F100-A10 |
| Main FPGA | Intel Arria 10 GX1150 FPGA |
| Operating Systems | Ubuntu 16.04.3 LTS 64-bit, CentOS 7.4 64-bit (Support Windows 10 in the end of 2018 & more OS are coming soon) |
| Voltage Regulator and Power Supply | Intel Enpirion Power Solutions |
| Memory | 8G on board DDR4 |
| Dataplane Interface | PCI Express x8 |
| Compliant with PCI Express Specification V3.0 | |
| Power Consumption | < 60W |
| Operating Temperature | 5°C~60°C (ambient temperature) |
| Cooling | Active fan |
| Dimensions | Standard Half-Height, Half-Length, Double-Slot |
| Operating Humidity | 5% ~ 90% |
| Power Connector | *Preserved PCIe 6-pin 12V external power |
| Dip Switch/LED indicator | Identify card number |
*Standard PCIe slot provides 75W power, this feature is preserved for user in case of different system configuration.
Ordering Information
| Part No. | Description |
| Mustang-F100-A10-R10 | PCIe FPGA Highest Performance Accelerator Card with Arria 10 1150GX support DDR4 2400Hz 8GB, PCIe Gen3 x8 interface |
