Commtron - MCA / MCP Series Tablets

MCA / MCP Series Tablets




  • High Performance CPU
  • Drop Resistant
  • 4G/Dual-band WIFI
  • Powerful Battery
  • Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported



Applications:

Amusement and Entertainment Device, KIOSK, Self-service Terminal, Interactive Digital Signage, Gambling Machine, E-desk, etc.



MCA0522


MCA0522 with abundant functions is an 5.2" Android rugged mobile computer.



Datasheet

  • 5.2" IPS 1080P Screen
  • Android GMS Certified
  • 4G/Dual-band WIFI
  • 5000mAh Powerful Battery
  • IP65/IP67 Sealing
  • 1.8m Drop Proof




MCP0522


MCP0522 handheld computer is a two-in-one device for real-time data collection and printing of receipt.



Datasheet

  • 5.2" IPS 1080P Screen
  • High Performance CPU
  • Android GMS Certified
  • High Security
  • 4G/Dual-band WIFI
  • 8000mAh Powerful Battery



MCP0522L

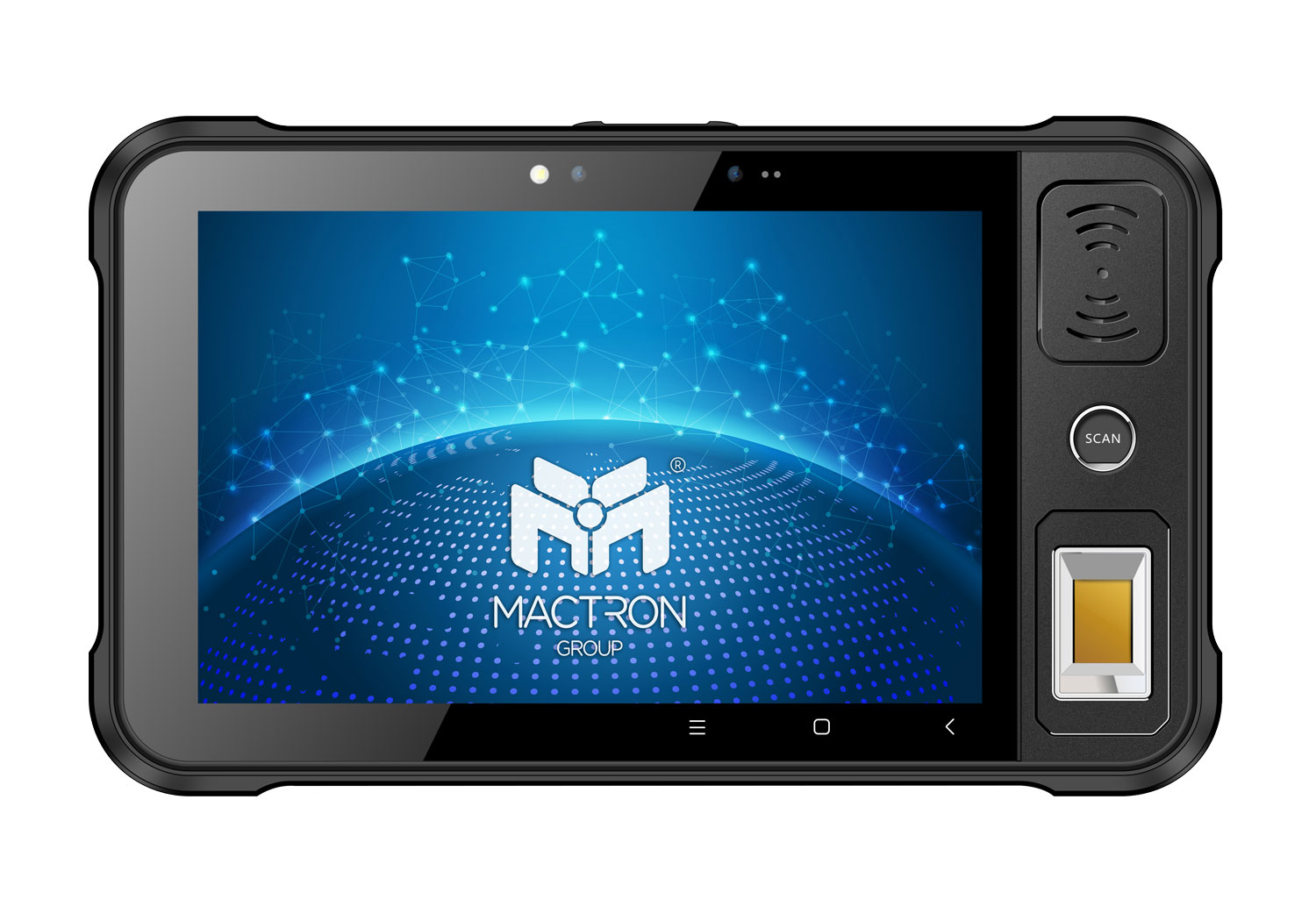

MCA0802


MCA0802 with abundant functions is an Android 7.1 rugged tablet.

With its powerful Qualcomm CPU, 8 inch high-definition screen.

Datasheet

  • 8" IPS 1920x1200 Screen
  • Android 7.1 OS, Android GMS Certified
  • High Performance CPU
  • 4G/Dual-band WIFI
  • 8000mAh Powerful Battery
  • IP65 Sealing




MCA0804


MCA0804 with abundant functions is an Android 7.1 rugged tablet.

With its powerful Qualcomm CPU, 8 inch high-definition screen.

Datasheet

  • 8" IPS 1920x1200 Screen
  • Android 7.1 OS
  • High Performance CPU
  • 4G/Dual-band WIFI
  • 8000mAh Powerful Battery
  • IP65 Sealing








Specification


Display MCA0522   Display MCP0522
Display Type 5.2" IPS FHD   Display Type 5.2" IPS FHD
Resolution 1920 x 1080   Resolution 1920 x 1080
Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported   Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Main System     Main System
OS Support Android 6.0   OS Support Android 6.0
CPU Cortex-A53 Quad-core 1.45GHz   CPU Cortex-A53 Quad-core 1.45GHz
Memory 2GB   Memory 2GB
Storage 16GB, Supports up to 128 GB Micro SD card   Storage 16GB, Supports up to 128 GB Micro SD card
Communication WLAN: IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna   Communication WLAN: IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
  2G/3G/4G     2G/3G/4G
  Bluetooth 4.0, BLE     Bluetooth 4.0, BLE
  GPS     GPS

Physical     Physical
Expansion Slot 1 x SIM card, 1 x SIM or TF card, 3 choice 2   Expansion Slot 2 PSAM slots at most (ISO7816 protocol), 1 slot for SIM card, 1 slot for SIM or TF card
Interfaces USB 2.0 Type-C, OTG   Interfaces USB 2.0 Type-C, OTG
Audio Speaker, 2 microphones   Audio Speaker, 2 microphones
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key   Keypad 1 power key, 2 scan keys, 1 multifunctional key, numeric keyboard
Sensors Gravity sensor, light sensor, proximity sensor, vibration motor   Sensors Gravity sensor, light sensor, proximity sensor, vibration motor
Camera Rear: 13MP Autofocus with flash   Thermal Printer Rate: 85mm/s
  Front: 5MP camera     Image Size (pixel): 384 dots
Battery Li-ion, rechargeable, built-in 5000mAh     Paper Width: 58mm
Operating Temp. -20°C to 50°C (-4°F to 122°F)     Paper Diameter: 3cm
Storage Temp. -40°C to 70°C (-40°F to 158°F)   Camera 13MP Autofocus with flash
Humidity 5%RH - 95%RH non condensing   Battery Li-ion, rechargeable, 8000mAh
Drop Specification Multiple 1.8m/5.9ft drops (at least 20 times) to the concrete across the operating temperature range   Operating Temp. -20°C to 50°C (-4°F to 122°F)
Tumble Specification 1000 x 0.5m/1.6ft falls at room temperature   Storage Temp. -40°C to 70°C (-40°F to 158°F)
Sealing IP65/IP67 per IEC sealing specifications   Humidity 5%RH - 95%RH non condensing
ESD ±15KV air discharge, ±6KV conductive discharge   Drop Specification Multiple 1m/3.28ft drops (at least 20 times) to the concrete across the operating temperature range
Dimensions 164.2mm x 78.8mm x 17mm   ESD ±15KV air discharge, ±6KV conductive discharge
Weight 288g   Dimensions 186.89 x 83.99 x 35.04 - 49.49mm
Data Collection 1D/2D Scanner, NFC,   Weight 507g
  optional: Iris, HF, UHF, InfraRed, Fingerprint, PSAM   Data Collection 1D/2D Scanner, NFC,
        optional: Iris




Display MCA0802   Display MCA0804
Display Type 8" IPS LTPS   Display Type 8" IPS LTPS
Resolution 1920 x 1200   Resolution 1920 x 1200
Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported   Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Main System     Main System
OS Support Android 7.1   OS Support Android 7.1
CPU Qualcomm 2.0GHz Octa-core   CPU Qualcomm 1.8GHz Octa-core
Memory 3GB   Memory 2GB
Storage 32GB, Supports up to 128 GB Micro SD card   Storage 16GB, Supports up to 128 GB Micro SD card
Communication WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna   Communication WLAN: IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
  2G/3G/4G     2G/3G/4G
  Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR     Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
  GPS     GPS

Physical     Physical
Expansion Slot 1 slot for SIM card, 1 slot for TF card, 2 optional slots for PSAM cards (ISO7816 T=0, T=1 protocol)   Expansion Slot 1 slot for SIM card, 1 slot for TF card, 2 optional slots for PSAM cards (ISO7816 T=0, T=1 protocol)
Interfaces USB 3.0 Type-C, OTG   Interfaces USB 3.0 Type-C, OTG
Audio Speaker, microphones   Audio Speaker, microphones
Keypad 1 front key, 1 volume key, 1 power key   Keypad 1 front key, 1 volume key, 1 power key
Sensors Gravity sensor   Sensors Gravity sensor
Camera Rear: 13MP Autofocus with flash   Camera Rear: 13MP Autofocus with flash
  Front: 8MP camera     Front: 8MP camera
Battery Li-ion, rechargeable, 8000mAh   Battery Li-ion, rechargeable, 8000mAh
Operating Temp. -20°C to 50°C (-4°F to 122°F)   Operating Temp. -20°C to 50°C (-4°F to 122°F)
Storage Temp. -40°C to 70°C (-40°F to 158°F)   Storage Temp. -40°C to 70°C (-40°F to 158°F)
Humidity 5%RH - 95%RH non condensing   Humidity 5%RH - 95%RH non condensing
Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range   Drop Specification Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 500 x 0.5m/1.64ft falls at room temperature   Tumble Specification 500 x 0.5m/1.64ft falls at room temperature
Sealing IP65 per IEC sealing specifications   Sealing IP65 per IEC sealing specifications
ESD ±15KV air discharge, ±8KV conductive discharge   ESD ±15KV air discharge, ±8KV conductive discharge
Dimensions 250.8mm x 152mm x 15mm   Dimensions 250.8mm x 152mm x 15mm
Weight 700g   Weight 700g
Data Collection NFC,   Data Collection NFC,
  optional: 1D/2D Scanner, Iris, HF RFID, UHF RFID, InfraRed, Fingerprint, PSAM     optional: 1D/2D Scanner, Iris, HF RFID, UHF RFID, InfraRed, Fingerprint, PSAM

Options

MCA0522
5.2" IPS 1080P Screen Android GMS Certified
Please contact us for pricing
MCP0522
5.2" IPS 1080P Screen Android GMS Certified
Please contact us for pricing
MCA0802
8" IPS 1920x1200 Screen Android 7.1 OS, Android GMS Certified
Please contact us for pricing
MCA0804
8" IPS 1920x1200 Screen Android 7.1 OS
Please contact us for pricing
