IEI Mustang-M2AE-MX1 – Vision Accelerator Card

Compare

• IEI – Mustang-M2AE-MX1 – Vision Accelerator Card

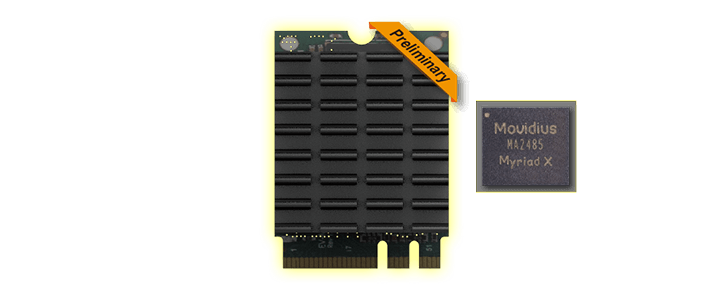

• Computing Accelerator Card with 1 x Intel® Movidius™ Myriad™ X MA2485 VPU,M.2 AE key interface, 2230, RoHS
• Compact size M.2 2230 card. (22 x 30mm)
• Low power consumption ,approximate 5W for one Intel Movidius Myriad X VPU.
• Supported OpenVINO toolkit, AI edge computing ready device

Description

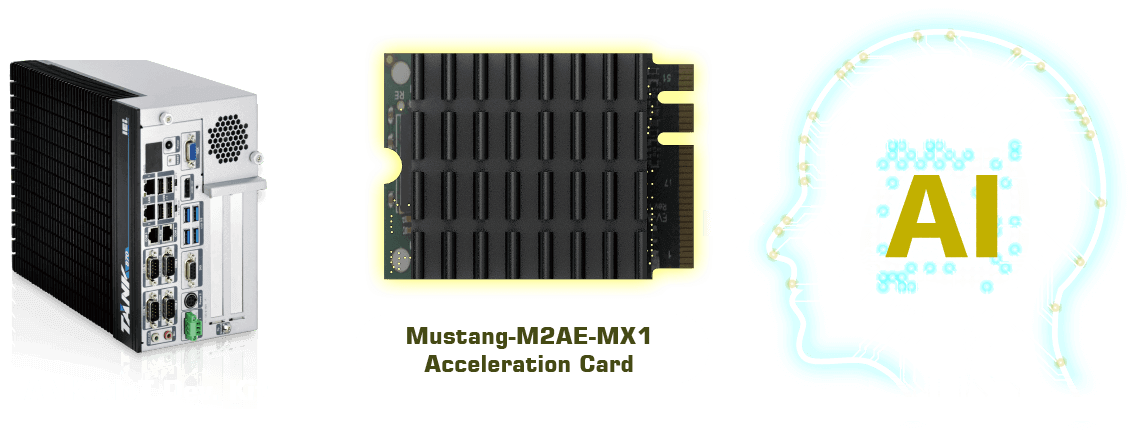

Mustang-M2AE-MX1

Intel Vision Accelerator Design with Intel Movidius VPU

A Perfect Choice for AI Deep Learning Inference Workloads

Powered by Open Visual Inference & Neural Network Optimization (OpenVINO) toolkit

  • Compact size M.2 2230 card. (22 x 30mm)
  • Low power consumption ,approximate 5W for one Intel Movidius Myriad X VPU.
  • Supported OpenVINO toolkit, AI edge computing ready device

Intel® Distribution of OpenVINO™ toolkit

Intel® Distribution of OpenVINO™ toolkit is based on convolutional neural networks (CNN), the toolkit extends workloads across multiple types of Intel® platforms and maximizes performance.

It can optimize pre-trained deep learning models such as Caffe, MXNET, and ONNX Tensorflow. The tool suite includes more than 20 pre-trained models, and supports 100+ public and custom models (includes Caffe*, MXNet, TensorFlow*, ONNX*, Kaldi*) for easier deployments across Intel® silicon products (CPU, GPU/Intel® Processor Graphics, FPGA, VPU).

toolkit process pic pc 1

Features

  • Operating Systems
    Ubuntu 16.04.3 LTS 64bit, CentOS 7.4 64bit, Windows® 10 64bit
  • OpenVINO™ toolkit
    • Intel® Deep Learning Deployment Toolkit
      • – Model Optimizer
      • – Inference Engine
    • Optimized computer vision libraries
    • Intel® Media SDK
  • Current Supported Topologies: AlexNet, GoogleNetV1/V2, MobileNet SSD, MobileNetV1/V2, MTCNN, Squeezenet1.0/1.1, Tiny Yolo V1 & V2, Yolo V2, ResNet-18/50/101
    * For more topologies support information please refer to Intel® OpenVINO™ Toolkit official website.
  • High flexibility, Mustang-M2AE-MX1 develop on OpenVINO™ toolkit structure which allows trained data such as Caffe, TensorFlow, MXNet, and ONNX to execute on it after convert to optimized IR.

Applications

application-scenario-1.png application-scenario-2.png
Machine Vision Smart Retail
application-scenario-3.png application-scenario-4.png
Surveillance Medical Diagnostics



Specification

Model Name Mustang-M2AE-MX1
Main Chip 1 x Intel Movidius Myriad X MA2485 VPU
Operating Systems Ubuntu 16.04.3 LTS 64bit, CentOS 7.4 64bit, Windows 10 64bit
Dataplane Interface M.2 AE Key
Power Consumption Approxinate 5W
Operating Temperature 0°C~55°C (In TANK AIoT Dev. Kit)
Cooling Passive Heatsink
Dimensions 22 x 30 mm
Support Topology AlexNet, GoogleNetV1/V2, Mobile_SSD, MobileNetV1/V2, MTCNN, Squeezenet1.0/1.1, Tiny Yolo V1 & V2, Yolo V2, ResNet-18/50/1015% ~ 90%
Operating Humidity 5% ~ 90%

*Standard PCIe slot provides 75W power, this feature is preserved for user in case of different system configuration



Ordering Information

Part No. Description
Mustang-V100-MX8-R10 Computing Accelerator Card with 8 x Movidius Myriad X MA2485 VPU, PCIe Gen2 x4 interface, RoHS
Mustang-V100-MX4-R10 Computing Accelerator Card with 4x Intel Movidius Myriad X MA2485 VPU, PCIe Gen 2 x 2 interface, RoHS
Mustang-MPCIE-MX1 Deep learning inference accelerating miniPCIe card with 2 x Intel Movidius Myriad X MA2485 VPU, miniPCIe interface 30mm x 50mm, RoHS
Mustang-M2AE-MX1 Computing Accelerator Card with 1 x Intel Movidius Myriad X MA2485 VPU,M.2 AE key interface, 2230, RoHS
Mustang-M2BM-MX2-R10 Deep learning inference accelerating M.2 BM key card with 2 x Intel Movidius Myriad X MA2485 VPU, M.2 interface 22mm x 80mm, RoHS

Datasheet

Download
