IEI uIBX-250-BW Ultra Compact Fanless PC

• IEI uIBX-250-BW – Ultra Compact Fanless PC
• Fanless system with Intel Celeron N3160 processor
• Dual display
• Two RS-232/422/485
• Full-size PCIe Mini slot for expansion
• Four USB 3.0 ports
• Two GbE LAN ports

Compare

Description

Ultra Compact Celeron N3160 Fanless PC uIBX-250-BW | BVMUltra Compact Celeron N3160 Fanless PC uIBX-250-BW | BVM

Ultra Compact Celeron N3160 Fanless PC uIBX-250-BW | BVMUltra Compact Celeron N3160 Fanless PC uIBX-250-BW | BVM

Overview

  • Fanless system with Intel Celeron N3160 processor
  • Dual display
  • Two RS-232/422/485
  • Full-size PCIe Mini slot for expansion
  • Four USB 3.0 ports
  • Two GbE LAN ports

Specification

Spec Item Description
Form factor
SBC Form Factor CPU:Intel® Celeron® N3160
(up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W)
Chipset:SoC
System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM
(system max: 8 GB) Pre-installed 2 GB
I/O Interface
I/O Ports 4 x USB 3.0
Ethernet:
2 x RJ-45 PCIe GbE by Intel® I211 controller
2 x RJ-45 RS-232/422/485
1 x HDMI, 1 x VGA
1 x Line-out, 1 x Line-in
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini card (support mSATA, colay with SATA)
*uIBX-250-BW-QGW-R20 has no PCIe mini slot*
System

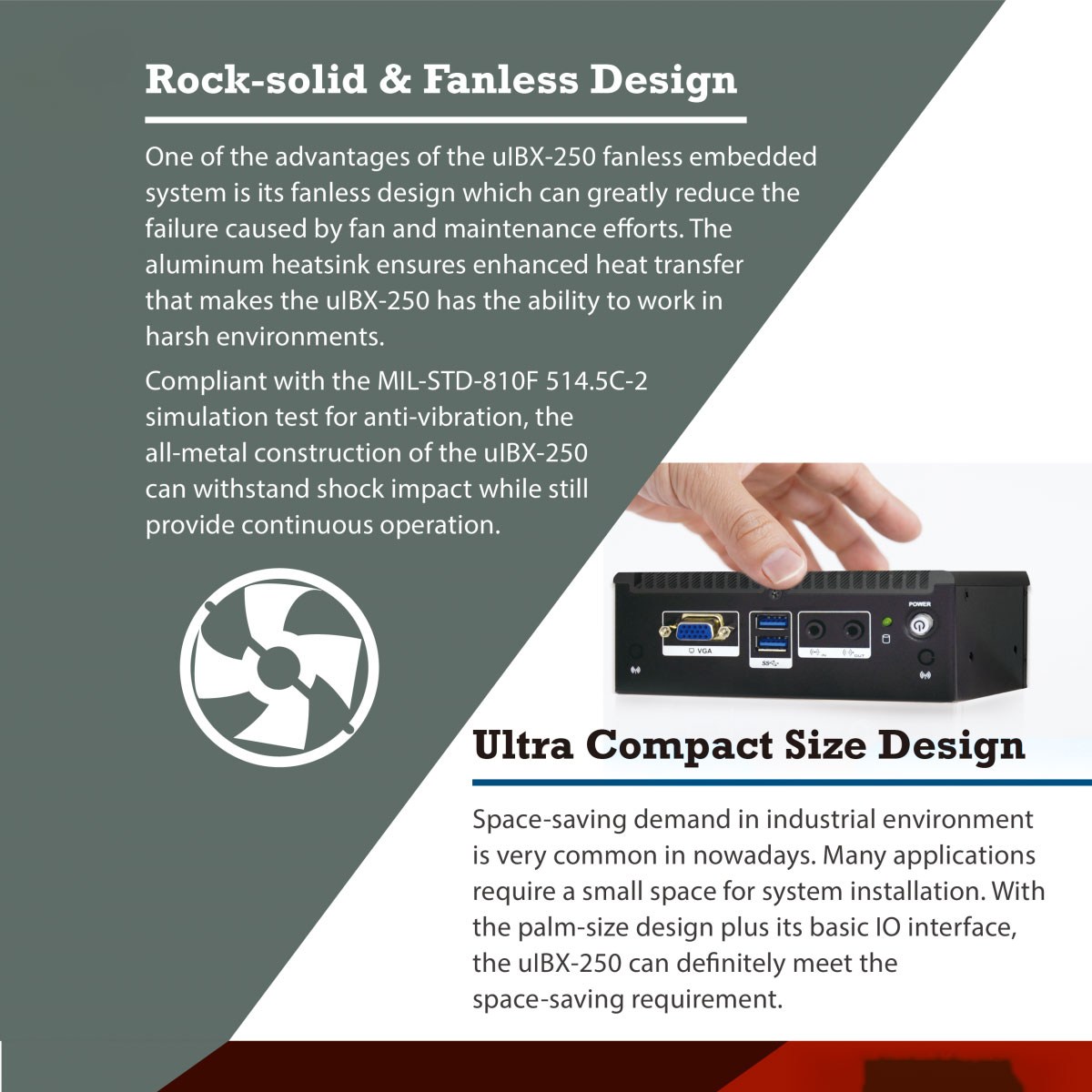

Cooling method / System Fan Fanless
Drive Bays 1 x 2.5′ SATA 6Gb/s HDD/SSD drive bay
Indicator & Buttons
Buttons 1 x Power button, 1 x AT/ATX switch
Indicators HDD
Colour
Colour Black
Dimensions
Dimensions 136.6 x 102.4 x 52
Weight
Weight 470 g/1.4 kg
Environment

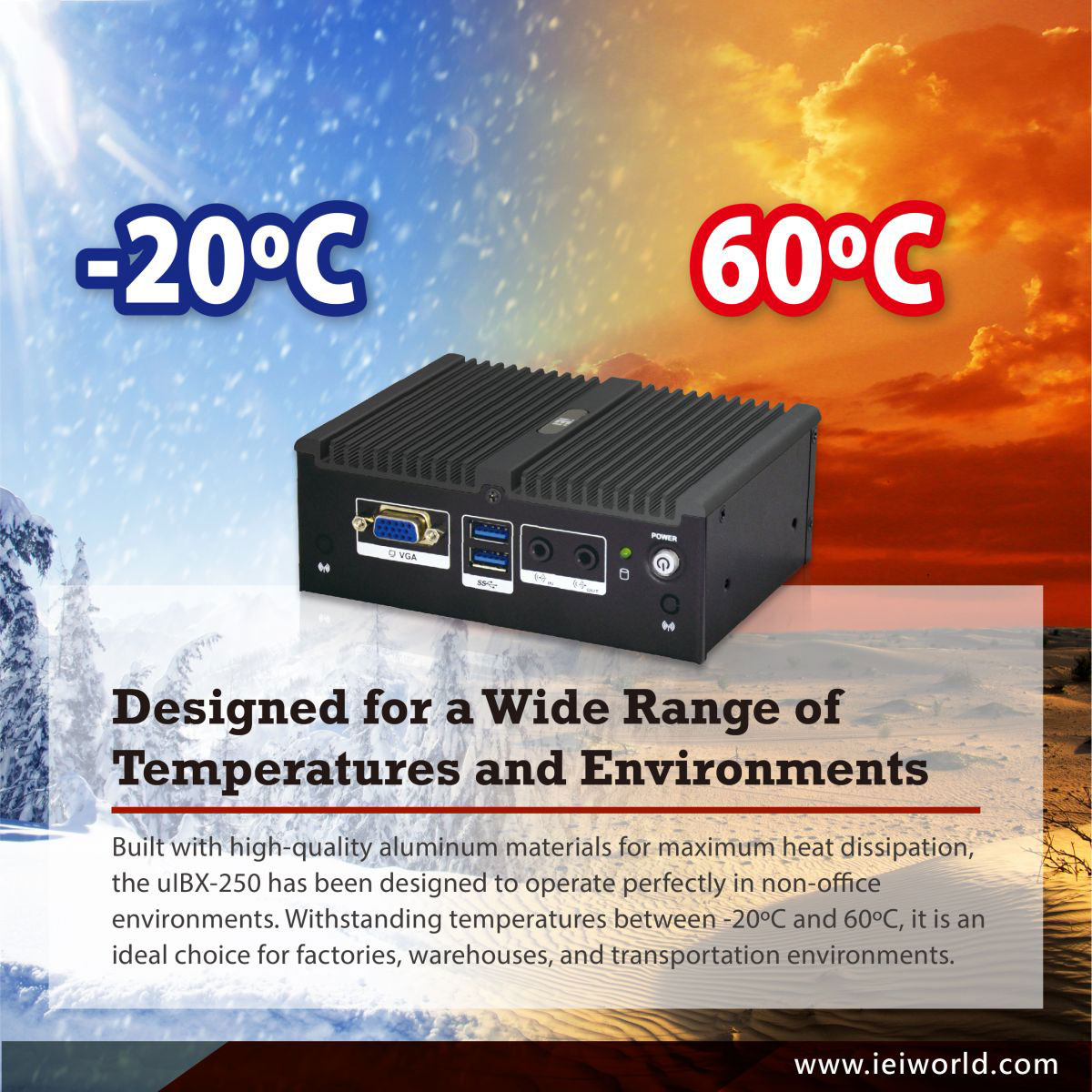

Operating Temperature -20°C ~ 60°C with air flow
Humidity 10% ~ 95%, non-condensing
Item No. Description
uIBX-250-BW-N3/2G-R20 Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS





BVM Customisation Service

If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.



If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements.

Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.

Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.



Design | Develop | Test | Manufacture

With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality



Here’s a selection of our design, manufacturing & associated services: –

Design to Order Banner

Design to Order: OEM/ODM Embedded Product Design Services

For customers designing a brand-new product from scratch or working with an existing prototype.

Build to Order Banner

Build to Order: Embedded Computer Design and Customisation Services​

Take an existing system and we can:

Build to Order: Racks and Towers, Peli Case PCs and Mini-ITX PCs

Embedded Software Banner

Embedded Software Services : Configuration, Integration and Deployment

Porting, Integration & Deployment



ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:

Testing

Testing

Lifecycle

Materials Management

Logistics

Logistics and Tracking

Manufacturing

External Manufacturing

• Burn in Test
• Temp / Thermal Testing
• Environmental Testing
• Safety Testing
• Software Compatibility Test
• Vendor Selection and Component Procurement
• Product Traceability
• Obsolescence, End of Life and Last Time Procurement Management
• Simple to use on-line RMA System
• Traceability of Shipments
• Product Labelling
• OEM/Branded Packaging
• System Branding
• Custom Labels
• Surface Mount: – High Speed Placement
• Conventional Through Hole Insertion & Assembly
• Automated Optical Inspection
• Bespoke PCB Test

Manufacturer : IEI

CPU

  • Powered By : Intel
  • CPU Family : Celeron
  • CPU Generation :
  • CPU Model : N3160
  • CPU Speed : 2.4Ghz
  • CPU Cores : Quad Core

Memory

  • Memory Installed : 2Gb
  • Memory Slots : 1
  • Memory Type : DDR3

I/O and Expansion

  • Expansion Slots : Mini PCIe, SATA
  • LAN Ports : 2
  • Serial Ports : 2
  • USB 2 Ports :
  • USB 3 Ports : 4
  • USB 3.1 Ports : 4
  • Video Output : HDMI, VGA
  • Multi Display : Dual Display
  • Wireless Connectivity :

Operating System

  • OS : Windows

Certifications

  • Certifications :

Industry

  • Industry : Harsh Environments, Industrial Automation and Control

Features

  • 24/7 Use :
  • 4G-GPS :
  • Artificial Intelligence Use :
  • ATEX :
  • High Performance :
  • Industrial :
  • In-Vehicle :
  • IoT : Yes
  • IP Rating :
  • Low Powered :
  • Mini-ITX :
  • Multi Displays : Dual
  • NUC :
  • Other Features :
  • PoE :
  • Rugged :
  • Ryzen :
  • System Type : Box PC
  • Touchscreen :
  • Whiskey Lake :
  • Wide Temp : Yes
