IEI In-vehicle Computer for Transportation Video Surveillance i5-6300U

Compare

IEI – IVS-300-ULT3-i5/4G-R10 – In-vehicle PC for Transportation Video Surveillance – iCore – i5-6300U – 2.4Ghz – Dual Core – 4Gb – 2133MHZ DDR4 – Mini PCIe SATA – VGA HDMI

ADD TO QUOTE
SKU: IVS-300-ULT3-i5/4G-R10 Categories: , , Tags: , , , , , , , , , , , , , , , , ,

Description

IEI smart transportation helps enterprises to improve efficiency of fleet and asset management by analyzing the data collected from various sensors and transmitting to a cloud for precise prediction.

Overview

  • Intel Skylake ULT /Baytrail processor
  • 4 x PoE IEEE802.3af
  • 2x Hot-swappable 2.5″” drive bay
  • Optional 3G/Wi-Fi
  • 2 x RS-232, 1 x Isolated RS-422/485
  • 4 x DI/DO
  • 1 x HDMI (lockable), 1 x VGA

In-Vehicle Computer : IVS Series

The IVS series in-vehicle computer is designed with reliable performance for harsh environments. Rich I/O ports are provided to connect with multiple peripheral devices in vehicle for different applications.

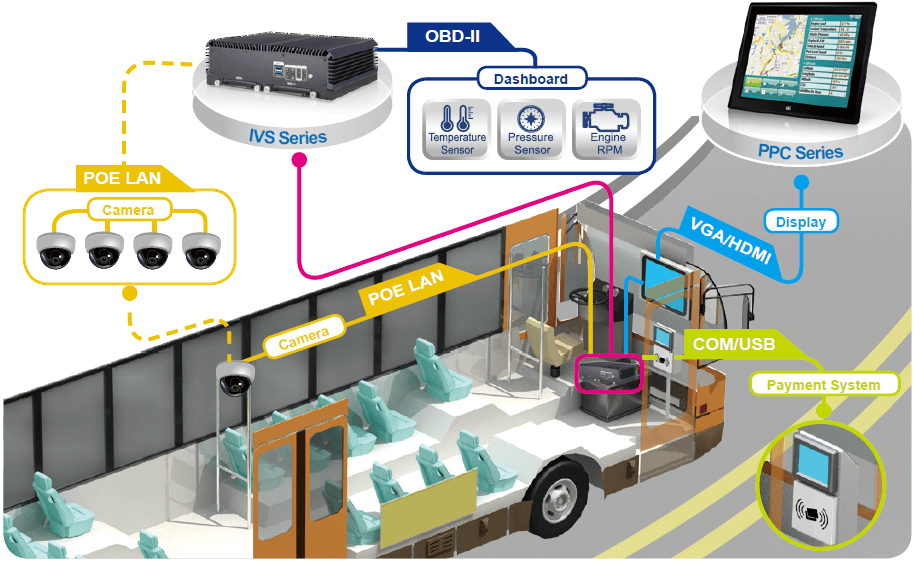

in-vehicle-computer-for-public-transportation-video-surveillence

Wide Range Temperature

IEI fanless product series has leading-edge thermal design and has been tested under extreme temperature conditions in order to ensure that IEI fanless products can work in any harsh environment.

ivs-in-vehicle-computer-operating-temperature
in vehicle box pc with e-mark

E-mark Certification

All vehicles, vehicle parts, and electronic products for the car must be enforced EMC testing. IEI IVS and IKARPC In-Vehicle series product all get E-Mark certification which are required for the European market.

Vibration and Shock Resistance

In-vehicle systems must be able to withstand the shock and vibration that comes with driving a vehicle. IEI transportation series meet the requirement for different environments and has passed particular verification dependent on MILSTD-810G 514.5 standard, EN61373 for railway market, EN60721 for in-vehicle market.

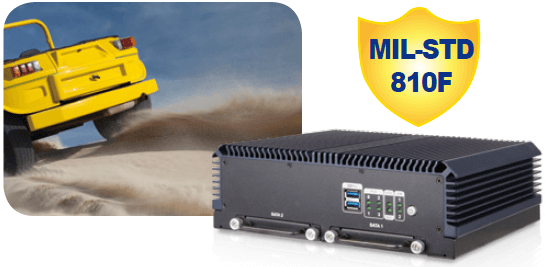

MIL-STD-810F IEI vehicle box pc
MIL-STD-810F IEI vehicle box pc-2

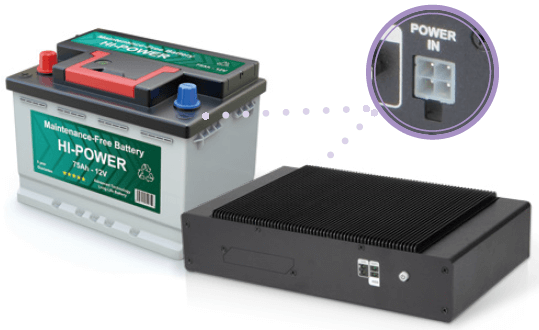

in-vehicle-box-pc-power-management

Particular Power Solution

We design wide power input to prevent surge when starting engine. We develop power management for users. For in-vehicle market, we design wide DC input and ACC power to ensure users can operate the system well.

vehicle box pc power management solution

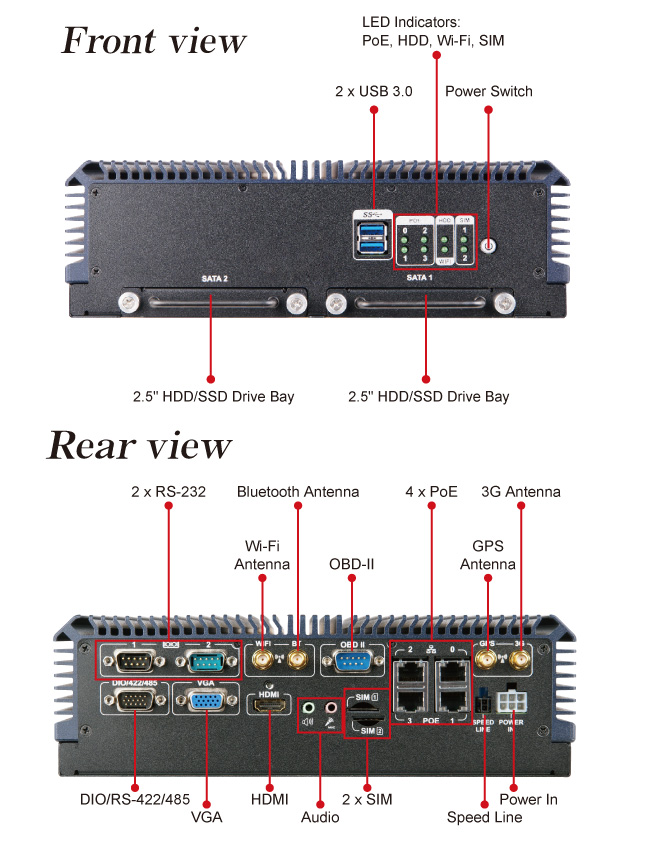

Fully Integrated I/O

IVS-invehicle-box-pc fully integrated IO Port

Specification

Spec Item
 Description
Form factor
SBC Form Factor CPU: Intel® Skylake ULT /Baytrail processor
Chipset: SoC
System Memory:2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed
I/O Interface
I/O Ports 2 x USB3.0
4 x PoE IEEE802.3af (one port max 15.4W)
2 x DB-9 RS-232
1 x DB-15 isolated RS-422/485
Isolated 8-bit digital I/O (4-bit input, 4-bit output)
1 x DB9 CAN-Bus/OBD-II
1 x VGA
1 x HDMI
1 x Mic in, 1 x Line out
2 x SIM slot
Expansion Slots
Expansion Slots 1 x Half-size PCIe Mini (reserved for Wi-Fi)
1 x Full-size PCIe Mini (reserved for 3G)
1 x Full-size PCIe Mini (only for skylake platform)
System
Cooling method / System Fan Fanless
Drive Bays 2 x 2.5″” SATA 3Gb/s HDD/SSD drive bay
Indicator&Buttons
Indicators 8 x LED (4 PoE, 1 HDD, 1 Wi-Fi, 2 SIM)
Color
Color Blue C
Dimensions
Dimensions 255 x 80 x 185
Weight
Weight 3kg/4.5kg
Environment
Operating Temperature -20°C ~ 60°C with air flow
Humidity 5% ~ 95%, non-condensing
Ordering Info.
Item No. Description
IVS-300-BT-J1/4G-R10 Fanless embedded system with Intel® Celeron® Processor J1900 (10W) Processor with 4GB DDR3L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5″ removable SATA HDD bay, RoHs
IVS-300-ULT3-i5/4G-R10 Fanless embedded system with Intel® Core™ i5-6300U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5″ removable SATA HDD bay, RoHs
IVS-300-ULT3-i7/4G-R10 Fanless embedded system with Intel® Core™ i7-6600U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5″ removable SATA HDD bay, RoHs

Datasheet

Download

If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can design a new product from start to finish.



Design | Develop | Test | Manufacture

Here’s a selection of our design, manufacturing

& associated services: –



Design to Order: OEM/ODM Embedded Product Design Services

For customers designing a brand-new product from scratch or working with an existing prototype.DesignToOrder

  • FREE Pre-design / Pre-sales advise
  • Prototyping – Custom PC Design, Custom Panel PC, Custom Racks or Custom Peli Case PC
  • Prototyping pre checks (chargeable one-time fee for existing prototype)
    • Hardware compatibility
    • Thermal testing
    • Software compatibility
  • Custom PCB / Board Design
  • Custom Chassis Design
  • Custom Cables
  • Custom Back Panels and Faceplates
  • Custom Cooling
  • Custom Metal Work (internal brackets, mounting brackets)
  • Touchscreen Integration and Display Enhancements
  • Software – Custom OS Image

Build to Order: Embedded System Integration and Customisation Services​

Take an existing system and we can:BuildToOrder

  • Custom specification (CPU, Ram, I/O, Storage)
  • Chassis customisation and branding
  • Custom BIOS
  • Software – Custom OS Image
  • Custom Packaging and branding
  • Integrating newly designed or existing hardware into a larger system

Build to order Racks and Towers, Peli Case PCs and Mini-ITX PCs

Windows IoT and Windows 10 Embedded: Integration and Embedded Software Services

Porting, Integration & DeploymentEmbeddedSoftware

  • Windows image capture from customers HDD
  • Linux image capture from customers HDD
  • Windows / Linux Deployment from customers image
  • Custom Windows images, create and deploy
  • Update management
  • Custom Linux and Android images?
  • Custom BIOS

Manufacturer : IEI

CPU

  • Powered By : Intel
  • CPU Family : iCore
  • CPU Generation :
  • CPU Model : i5-6300U
  • CPU Speed : 2.4Ghz
  • CPU Cores : Dual Core

Memory

  • Memory Installed : 4Gb
  • Memory Slots : 2
  • Memory Type : 2133MHZ DDR4

I/O and Expansion

  • Expansion Slots : Mini PCIe, SATA
  • LAN Ports : 4
  • Serial Ports : 2
  • USB 2 Ports :
  • USB 3 Ports : 2
  • USB 3.1 Ports : 2
  • Video Output : HDMI, VGA
  • Multi Display : Dual Display
  • Wireless Connectivity : Wireless

Operating System

  • OS : Windows

Certifications

  • Certifications : EN60721, EN61373, MILSTD-810G 514.5

Industry

  • Industry : Harsh Environments, Industrial Automation and Control, Transport - Road, Transport and Smart City

Features

  • 24/7 Use :
  • 4G-GPS : Yes
  • Artificial Intelligence Use : Artificial Intelligence, Machine Vision
  • ATEX :
  • High Performance :
  • Industrial :
  • In-Vehicle : Yes
  • IoT :
  • IP Rating :
  • Low Powered :
  • Mini-ITX :
  • Multi Displays : Dual
  • NUC :
  • Other Features :
  • PoE : Yes
  • Rugged : Yes
  • Ryzen :
  • System Type : Box PC
  • Touchscreen :
  • Whiskey Lake :
  • Wide Temp : Yes
