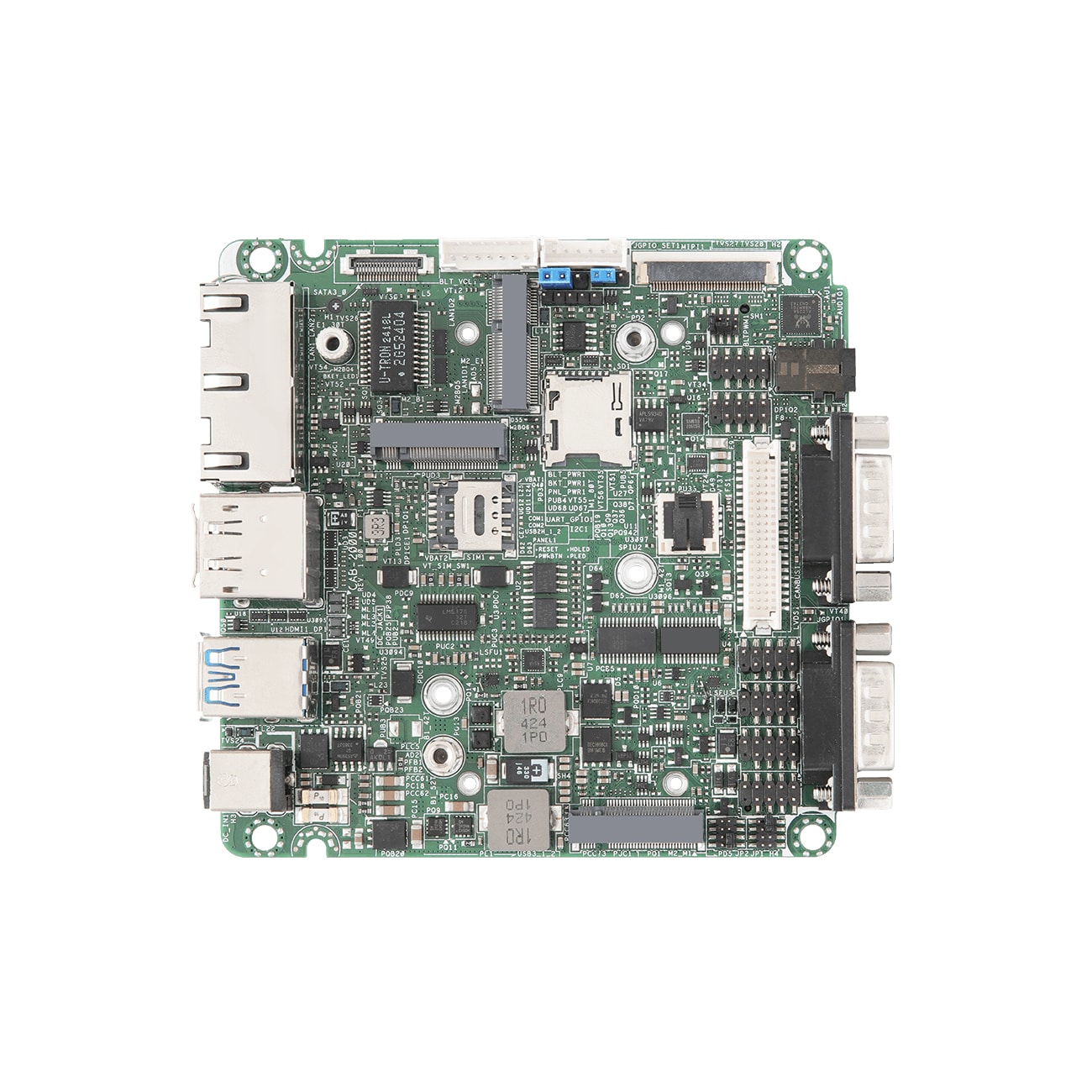

ASRock Industrial CAB-202 Pico-ITX Carrier Board

  • Product Name: Asrock Industrial CAB-202
  • Motherboard Form Factor: Pico-ITX Carrier Board
  • CPU: N/A
  • RAM: N/A
  • Expansion: 1 x DisplayPort, 1 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x MIOe
  • Other features: 12V DC-in
ADD TO QUOTE
Compare
SKU: CAB-202 Category: Tags: , , , ,

Description

Introducing the ASRock Industrial CAB-202 Pico-ITX Carrier Board, your gateway to compact and powerful computing. This carrier board supports Pico-ITX modules, offering a versatile platform for various applications.

Connectivity is streamlined with 1 x DisplayPort, 1 x USB 3.2 Gen2, and 2 x USB 2.0 ports, ensuring efficient data transfer and peripheral connectivity. Expansion options abound with 1 x M.2 Key E, 1 x M.2 Key M, and 1 x MIOe slot, providing flexibility for customization.

Power your system reliably with the 12V DC-in input, offering stability and compatibility for diverse environments. Compact yet feature-packed, the ASRock Industrial CAB-202 is designed to meet the demands of modern computing in a Pico-ITX form factor. Elevate your computing experience with this versatile carrier board that combines performance and flexibility seamlessly.

Key Features

  • Supports Pico-ITX module
  • 1 x DisplayPort
  • 1 x USB 3.2 Gen2, 2 x USB 2.0
  • 1 x M.2 Key E, 1 x M.2 Key M
  • 1 x MIOe
  • 12V DC-in

Specification

Form Factor
Dimensions mini-ITX (6.7-in x 6.7-in x 1.46-in, 17.0 cm x 17.0 cm x 3.71 cm)
Graphics
DisplayPort Display Port 1.4a, DP++
Max resolution up to 4096×2160@60Hz
Expansion Slot
M.2 1 x M.2 (Key E, 2230) with PCIe x1
MIO 1 (DP++, 1 x USB 3.2 Gen2, 1 x USB 2.0, 3 x PCIe x1, eSPI bus, SBMus)
Audio
Interface Realtek ALC122 HD, High Definition Audio
Ethernet
Controller/ Speed 1 x slot 10/100/1000 Mbps
Connector 1 x RJ-45
Rear I/O
DisplayPort 1 x DP 1.4a
Ethernet 1 x 1 Gigabit LAN
USB 1 x USB 3.2 Gen2
Audio 3 (Line-in, Line-out, Mic-in)
DC Jack 1 x DC in
Internal Connector
USB 2 x USB 2.0 (1×2.54 pitch header)
GPIO 4 x GPI, 4 x GPO
Speaker Header 1 x 3W Speaker Header
Storage
M.2 1 x M.2 (Key M, 2242/2280) with PCIe x1
Power Requirements
Input PWR 12V DC-in
Power On AT/ATX Supported
– AT : Directly PWR on as power input ready
– ATX : Press button to PWR on after power input ready
Environment
Operating Temp 0ºC ~ 70ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%

Datasheet

Download
