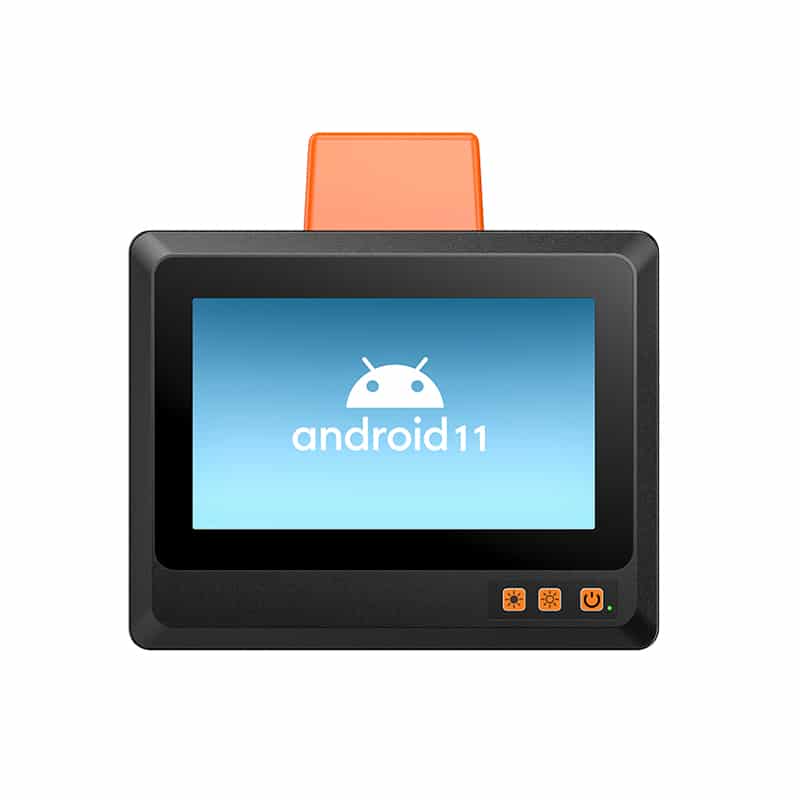

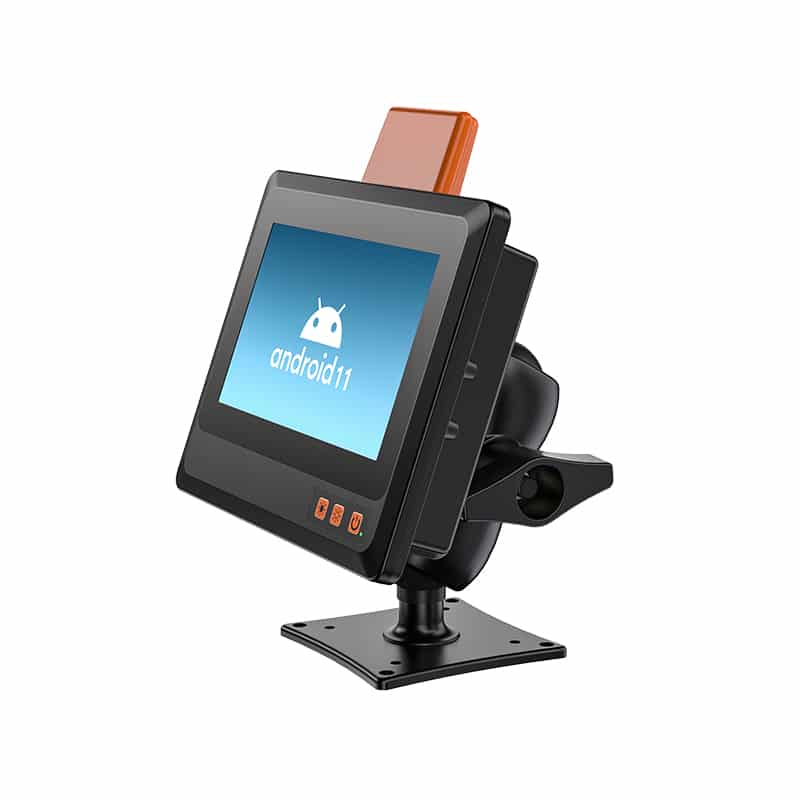

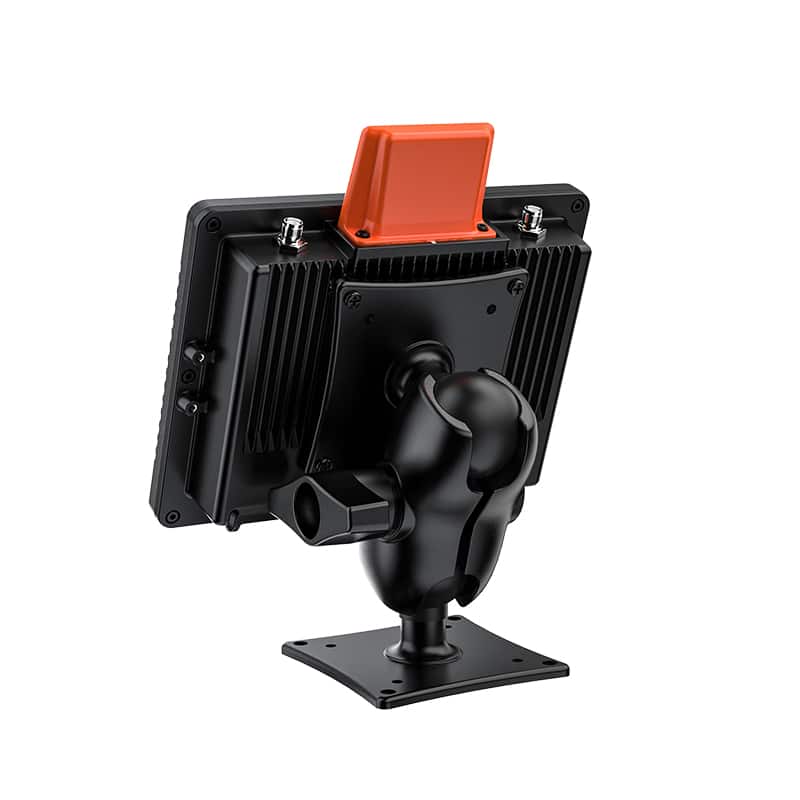

Darveen VT Series 10.1″ – 15″ Android Vehicle Mount Computers
- Product Name: Darveen VT Series
- Screen Size: 7″ to 12.1″ TFT-LCD with projective capacitive touchscreen
- CPU: Rockchip RK3588 / RK3399, dual core A72 + quad core A53
- RAM: DDR4 1866MHz (expandable, depending on model)
- Expansion: Supports Wi-Fi 5, Bluetooth 4.2, LTE/5G, and GNSS
- Other features: IP65-rated aluminium enclosure, MIL-STD-810G vibration compliance, 8–36VDC power input with ignition control
Description
The Darveen VT Series is a compact, rugged line of vehicle-mounted computers designed for use in trucks, buses, forklifts, and a variety of industrial applications. Running on Android (or Windows), the VT Series is powered by a high-performance 6-core processor and features integrated 7″ to 12.1″ TFT LCD displays with projective capacitive touchscreens for improved user interaction. Built-in Wi-Fi 5, Bluetooth 4.2, 4G LTE/5G, and GNSS modules enable reliable real-time communication. The VT-640A model features a fanless design for silent, efficient cooling, along with wide temperature tolerance and flexible DC power input. MIL-STD compliance and an IP65 rating ensure resistance to water, dust, and harsh environmental conditions.
Key Features
- 7″ – 12.1″ TFT-LCD with projective capacitive touchscreen
- Rugged aluminium enclosure and fanless design
- IP65 protection against water and dust
- Compliant with MIL-STD-810G vibration testing standards
- Wide range 8-36VDC power input with ignition control
- Flexible expansion capability for Wi-Fi 5, Bluetooth 4.2, LTE/5G, GNSS
Specification
| Display | |
| Size | 8 inch (16:10) VT-640A – See datasheets for other models |
| Touch Type | Projected capacitive multi touch |
| Display Type | TFT LCD |
| Resolution | 1280 x 720 |
| Luminance | 750 nits |
| Contrast Ratio | 1000: 1 |
| View Angles | 85 (left), 85 (right), 85 (up), 85 (down) |
| Colour | 16.2M |
| System | |
| CPU | Rockchip RK3399, dual core A72 + quad core A53 (1.8 GHz) |
| Memory | 4GB DDR4-1866 on board |
| Storage | 32GB EMMC on board |
| Keypad & Keyboard | |
| Keypad | Power On/off Brightness and volume adjustment 0-9 numeric, enter and backspace F1-F6 user-defined function keys |
| I/O Ports | |
| USB | 1x USB 3.0/OTG (Type A) 1x USB 2.0 (Type A) |
| Serial | 1x RS-232 (DB9) |
| Ethernet | 1x GbE LAN (RJ45) |
| SIM Card Slot | 1x Nano SIM socket |
| TF Card Slot | 1x TF Socket (up to 128GB) |
| Antenna | 2-4x TNC connector for external antenna (Wi-Fi, Bluetooth, WWAN, GPS) |
| RF Communication | |
| Wi-Fi | Wi-Fi 5: 802.11a/b/g/n/ac, 2.4G/5G |
| Cellular | 4G LTE 5G, NSA/SA (optional) |
| Bluetooth | Bluetooth 4.2 |
| GNSS | GPS, GLONASS, Galileo, BeiDou |
| Audio | |
| Speaker | 8Ω/2W, mono speaker |
| Power | |
| DC Input | 8 to 36VDC |
| Power Consumption | 12W (Typ.) |
| Power Mode | ATX (default), AT |
| Operating System | |
| Android | Android 11 |
| Mechanical | |
| Dimensions (W x D x H) | 240 x 190 x 53 mm (9.45 x 7.48 x 2.08 inches) |
| Weight (N.W.) | 1.8 kg (3.96 lbs) |
| Mounting Mode | VESA 75 and 100 |
| Material | Die-casting aluminium with heavy duty metal |
| Environment | |
| Operating Temperature | -20 to 60℃ (-4 to 140°F) |
| Storage Temperature | -40 to 70℃ (-40 to 158°F) |
| Relative Humidity | 95% @ 70°C (158°F), non-condensing |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP Rating | IP65 compliant (I/O interface must be closed) |
| Certification | |
| EMC | CE, FCC |
| VT-760A – ANDROID 11 | VT-762A – ANDROID 12 | FMT-G632 – ANDROID 13 |
 |
 |
 |
Ordering Information
See datasheets for full specifications
- VT-840A 12.1″ Android 11 Vehicle Mount Computer with RK3399 Processor
- VT-762A 10.1″ Android 12 Vehicle Mount Computer with RK3588 Processor
- VT-540A 7″ Android 11 Vehicle Mount Computer with RK3399 Processor
- VT-640A 8″ Android 11 Vehicle Mount Computer with RK3399 Processor
- VT-740A 10.4″ Android 11 Vehicle Mount Computer with RK3399 Processor
- VT-760A 10.1″ Android 11 Vehicle Mount Computer with RK3399 Processor
- VT-862A 12.1″ Android 12 Vehicle Mount Computer with RK3588 Processor
- FMT-G632 8″ Android 13 Fleet Management Terminal with RK3562 Processor
- FMT-615A 8″ Android 11 Fleet Management Terminal with Rockchip RK3568 Processor
- FMT-715A 10.1″ Android 11 Fleet Management Terminal with Rockchip RK3568 Processor
BVM Customisation Service
If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.
If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements. Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.
Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.
Design | Develop | Test | Manufacture
With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality
Here’s a selection of our design, manufacturing & associated services: –
|
|
|
ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:
 Testing |
 Materials Management |
 Logistics and Tracking |
 External Manufacturing |
| • Burn in Test • Temp / Thermal Testing • Environmental Testing • Safety Testing • Software Compatibility Test |
• Vendor Selection and Component Procurement • Product Traceability • Obsolescence, End of Life and Last Time Procurement Management • Simple to use on-line RMA System |
• Traceability of Shipments • Product Labelling • OEM/Branded Packaging • System Branding • Custom Labels |
• Surface Mount: – High Speed Placement • Conventional Through Hole Insertion & Assembly • Automated Optical Inspection • Bespoke PCB Test |
Click here to find out more.
Manufacturer : Darveen
Screen
- Screen Size : 10.1", 10.4", 12.1", 7", 8"
- Screen Resolution :
- Screen Brightness :
CPU
- Powered By : ARM
- CPU Family : ARM
- CPU Generation : ARM Cortex
- CPU Model : RK3399K
Memory
- Memory Slots :
- Memory Type : 1866Mhz DDR4
I/O and Expansion
- Expansion Slots :
- LAN Ports :
- Serial Ports :
- USB 2 Ports :
- USB 3 Ports :
- USB 3.X / USB C / USB 4.0 Ports :
- Video Output :
- Multi Display :
Certifications
- Certifications :
Features
- IP Rating :
- Rugged : Yes
- System Type : Panel PC
- Wide Temp : Yes
Categories : In-Vehicle Panel PCs | Vehicle Mount Touchscreen Computers, Industrial Panel PCs and Touchscreen Computers - All
