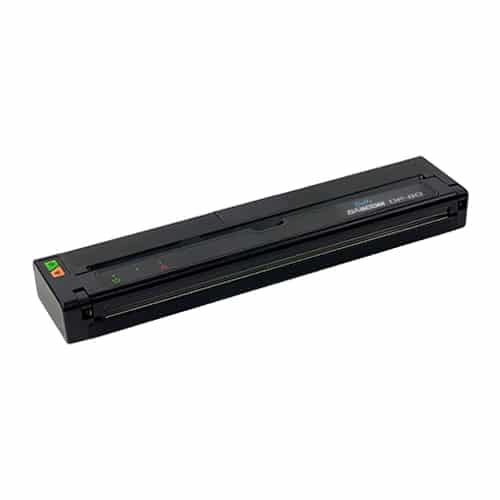

DASCOM 8″ Mobile Printer DP-80

• Dascom – DP-8 – In Vehicle Printer – Dual serrated tear edges for clean crisp tear off of your documents

• The DP-80 series printers are the latest in reliable, compact, and innovative thermal printing.

Clear

Description

EN DP 80 2

Dascom’s DP-80 series printers are the latest in reliable, compact, and innovative thermal printing. This small, full-page printer is rated at 11ppm, and is capable of using continuous roll, perforated rolls, or single sheet thermal paper.

This printer features USB, Bluetooth or Wi-Fi connectivity, and is compatible with Windows, Android, and iOS Bluetooth operating systems to provide a wide range of connections. The DP-80 is a true drop-in replacement and fits most mounting systems available for in-vehicle printing. Compatible USB cables, and in-vehicle power adaptors make this printer the perfect addition to any public safety vehicle whether you are outfitting a new fleet or updating your current one.

Mobile Printer DP-80

Technology Direct thermal
Print speed up to 50 mm/sec.
Resolution 203 dpi
Interfaces 1x USB
Optional Bluetooth or WiFi
Emulations ESC/POS, ZPL II, CPCL
PostScript, PDF
Print width 210 mm

Highlights at a glance

  • Dual serrated tear edges for clean crisp tear off of your documents
  • Large function buttons on top cover
  • Easy and smooth opening door, with auto loading of paper
  • 2 ips / 11 ppm print speeds
  • Windows, Android, and iOS Bluetooth compatible
  • Small foot print design for efficient mounting options
  • 12/24V vehicle battery cable and 12V cigarette style charger available

Models

  • DP-80 standard model with USB interface
  • DP-80 BT model with Bluetooth interface
  • DP-80 WiFi model with WiFi interface

Specification

Print speed Up to 2 inch/sec (50 mm/sec)
Resolution 203 dp (8 dots/mm)
Lifetime print head 50 km
Memory 256 MB FLASH, 512 MB DRAM
Print width Up to 210 mm
Interfaces Standard USB 2.0 (Typ Mini)
Interfaces Optional Bluetooth (4.0) or WiFi (802.11 b/g/n)
Bluetooth Compatible Bluetooth 4.0 Stack
Administration Internal Website
Emulations ESC/POS, ZPL II, CPCL, PostScript
Media Direct Thermal Roll, Fanfold and Cut Sheet
Weight 0,6 kg
Dimensions 255 x 55 x 30 mm (W x D x H)
Voltage 12-15 V in-vehicle power adapter 100-200 V wall adapter
Temperature -18° to +50° C (printing); -20° bis 60° C (storage)
Humidity 10% to 90% rel. humidity
MTBF 10.000 hours
Drivers Windows 7/8/10;
Windows Mobile; Android; iOS
Certifications CE, FCC Class B, UL, E1

Models, options and consumables

Model overview
  • DP-80 standard model (Part-No. 28.867.6190)
  • DP-80 BT Bluetooth model(Part-No. 28.867.6271)
  • DP-80 WiFi W-LAN model model (Part-No. 28.867.6299))

Options

  • USB cable (Part-No. 093 232)
  • DC converter cable unterminated (Part-No. 092 8631)
  • In-vehicle adapter for cigarette lighter (12 V) (Part-No. 093 864)
  • In-vehicle adapter for cigarette lighter (12/24 V) (Part-No. 093 446)
  • AC adapter charge & print (220 V) (Part-No. 093 833)

Consumables

  • Thermal paper Standard (6 rolls, 55 g/m2) (Part-No. 043 150)
  • Thermal paper Premium 10 years (6 rolls, 55 g/m2) (Part-No. 043 151)
  • Thermal paper Premium 25 Jahre (6 rolls, 55 g/m2) (Part-No. 043 152)
  • Thermal paper Premium 25 Jahre Leporello (250 sheets, 77 g/m2, DIN A4) (Part-No. 043 163)
  • Thermal paper Premium 25 Jahre cut-sheet (250 sheets, 77 g/m2, DIN A4) (Part-No. 043 164)
