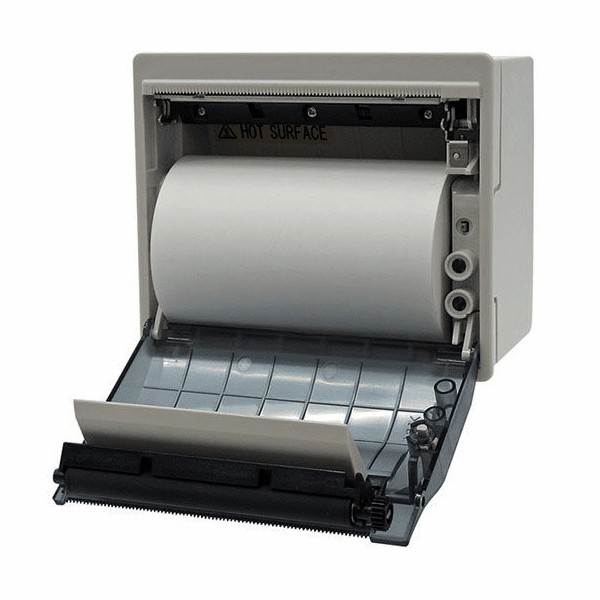

Seiko DPU-D3-00A 3″ Panel Mount Thermal Printer

• Seiko – DPU-D3-00A – 3″ Small and compact Panel-Mount Thermal Printer Unit

• Max printing speed: 80mm/sec (DPU-D3), Small and compact design, Panel-mount type, Easy paper operation

Product Compare

Description

Introducing the Seiko DPU-D3-00A 3″ Panel Mount Thermal Printer – a swift solution for seamless system integration. Designed with utmost compactness, it perfectly aligns with space-saving priorities. Boasting a remarkable printing speed of up to 100m/s, the DPU-D series stands out as one of the market’s fastest panel mount printers.

Offered in both 2-inch and 3-inch variants, both models feature user-friendly paper handling for effortless paper roll replacement. The DPU-D2/D3 finds its ideal application in diverse sectors, notably excelling in measurement and medical environments.

Features

  • Panel mount design allows fast system integration
  • High printing speed of 80 mm/sec. max.
  • Available in 2-inch and 3-inch
  • USB/serial interface
  • Easy paper operation for fast paper roll replacement
  • Large paper roll diameter (50mm max.)

Specification

Model DPU-D2-00A DPU-D3-00A
*1 Use recommended thermal papers. *2 Excluding protrusion. *3 Please see “Associated software tool” for details.
Printing Method Thermal line dot printing
Number of dots/line 384 576
Resolution (dots/mm) 8
Paper width (mm) 58+0-1 80+0-1
Printing width (mm) 48 72
Speed (mm/sec) max 100 (8.5V) 80 (8.5V)
Character matrix (H×W dots) 24 × 24, 24 × 12, 16 × 16, 16 × 8
Character size (H×W mm) 3.0 × 3.0, 3.0 × 1.5, 2.0 × 2.0, 2.0 × 1.0
Number of columns 16, 32, 24, 48 24, 48, 36, 72
Character type Extended graphics character, Katakana character set, CP1252,
Optional font, Downloaded character,
User-defined character, JIS 1 & 2 level kanji
Bar code UPC-A/E, JAN (EAN) 8/13, ITF, CODE39, CODABAR, CODE93,
CODE128, PDF417, QR Code, MaxiCode, Data Matrix
Power supply (V) Driving voltage (5.0 to 9.0)
Communication interface Serial / USB
Input buffer 4K bytes
Command ESC/POS™ conformity
Cutting Tear bar
Operating Temperature (˚C) -10 to 50
Service life (km) 50*1
Dimensions (W×D×H mm) 80.0 × 68.8 × 85.5*2 102.0 × 68.8 × 85.5*2
Mass (g) Approx. 180 Approx. 210
Software*3 Printer Driver/SDK

Printer Drivers / SDK

Please see https://seiko-instruments.de/thermal-printer/ for the latest drivers.
