Seiko RP-F10 POS Receipt Printer with Optional 4.3″ Display

• Seiko – RP-F10 – POS Bluetooth Thermal Receipt Printer with optional 4″ display

• The LCD display can be mounted directly to the printer, stand alone and can even be wall-mounted

Clear

Description

Seiko Instruments new POS Printer model RP-F10 is extremely compact and comes with an optional 4.3 inch color TFT LCD. This innovative display can be mounted directly to the printer, stands alone and can even be wall-mounted for a clear customer communication. Dual top and front paper exit configuration options lead to more installation flexibility. IPx1 certification for dripping water protection (front paper-exit) and an optional buzzer make it highly suitable for kitchen printing applications. Connectivity options include BT, WiFi, USB and easy BT pairing is supported via NFC.

Printer

  • Top and front paper exit
  • Very compact 127mm x 127mm x 127mm
  • Max. printing speed 250mm/s
  • IPx1 protection (front paper exit model)
  • Optional buzzer
  • Easy BT pairing via NFC (Bluetooth model)
  • USB, USB-C, LAN or BT interface
  • Print Service for Android (BT model)

RP F10

Shown with optional display

SII Portable Print Service for Android and iOS

The Print Service recognizes Bluetooth and WLAN coupled Seiko Instruments printers, and allows printing directly from various apps (for example the browser).

The following printers are supported:

  • MP-B20 – 2″ Portable Printer
  • MP-B30 – 3″ Portable Printer
  • MP-B30L – 3″ Portable Printer
  • MP-A40 – 4″ Rugged Portable Printer
  • DPU-S445 – 4″ Portable Printer
  • DPU-S245 – 2″ Portable Printer
  • RP-F10 – POS Receipt Printer
en badge web generic app stpre

Specification

Model RP-F10
Printing Method Thermal line dot printing
Resolution (dpi) 203(8dots/mm)
Printing width (mm) 54 / 72
Speed (mm/sec) max 250
Outside diameter of paper roll (mm) max Φ83
Character matrix (H x W dots) 24 × 12, 24 × 24, 16 × 8, 16 × 16
Character size (H × W mm) 3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0
Type of paper Roll paper
Character type Code page(14pages), International character, Optional font, Downloaded character, JIS 1&2 Level Kanji Special character, User-defined character
Bar code UPC-A/E, JAN(EAN)8/13, ITF, CODABAR, Code39, Code93, Code128, QR, PDF417, GS1 Databar
Power supply Specified AC adapter, External power (DC24±10%)
Communication interface USB+USB-host, Ethernet+USB-host, Bluetooth (NFC)+USB-host, Powered USB
Input buffer 4K bytes
Command ESC/POS conformity
Cutting Method Slide type
Cutting type Full cut, Partial cut (Leave center point )
Operating Temperature (°C) 5 to 45
Abrasion resistance (km) 150 *1
Paper cutting (cut) 1,500,000 *1
Dimensions (W×D×Hmm) 127.0 × 127.0 × 127.0*4
Mass (g) TBD
Standard FCC, CE, VCCI
Option Wall mounting Kit, Buzzer, LCD (4.3inch color)
Cash drawer 2 drivers (24V / 1A)
Body colour 2 colours : White / Black
Software Windows : Printer Driver, Virtual COM Driver, OPOS Driver, POS for .Net Driver / SDK / Utility /Linux : CUPS Filter (Driver) / Communication Library (SDK) / Android : SDK / Utility

*1 Use recommended thermal papers. *2 Excluding protrusion

Optional Display

  • 4.3inch TFT LCD (W480 x H272 pixels)RP F10 Display
  • Various installation methods (mount to RP-F10,stand-alone,wall-mount)
  • Various display contents (character, barcode, image)
  • Various applications (customer display, QR payment, advertisement)
  • Printer (RP-F10) error and recovery method are displayed
  • Various drivers and wide variety of utility software
Panel Size 4.3 inch
Method TFT LCD
Colour 16 Bit Colour
Number of Pixels (pixel) 480 (W) x 272 (H)
Active Area (mm) 95.04 (W) x 53.856 (H)
Pixel Pitch (mm) 0.198 (W) x 0.198 (H)
Luminance (cd/m²) 300

Printer Drivers / SDK

Please see https://seiko-instruments.de/thermal-printer/ for the latest drivers.

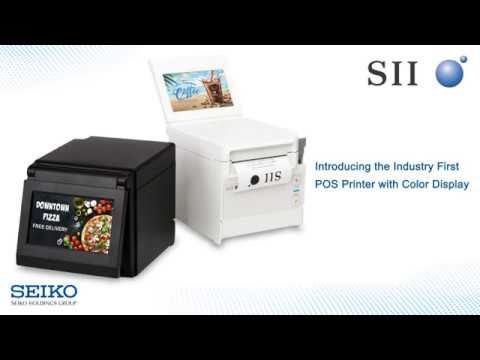

Video

Datasheet

Download

Display Datasheet

Download
