Seiko 4″ MP-A40 IP54 Rugged Mobile (portable) Printer
• Seiko – MP-A40 – MP-A40 Rugged Mobile / Portable Printer
• Rugged mobile printer for tough environment (-20°C to 50°C) . Stylish and easy to operate.
Description
Seiko Rugged Mobile Thermal Printer Series – Stylish and easy to operate.
Rugged and Reliable Printing

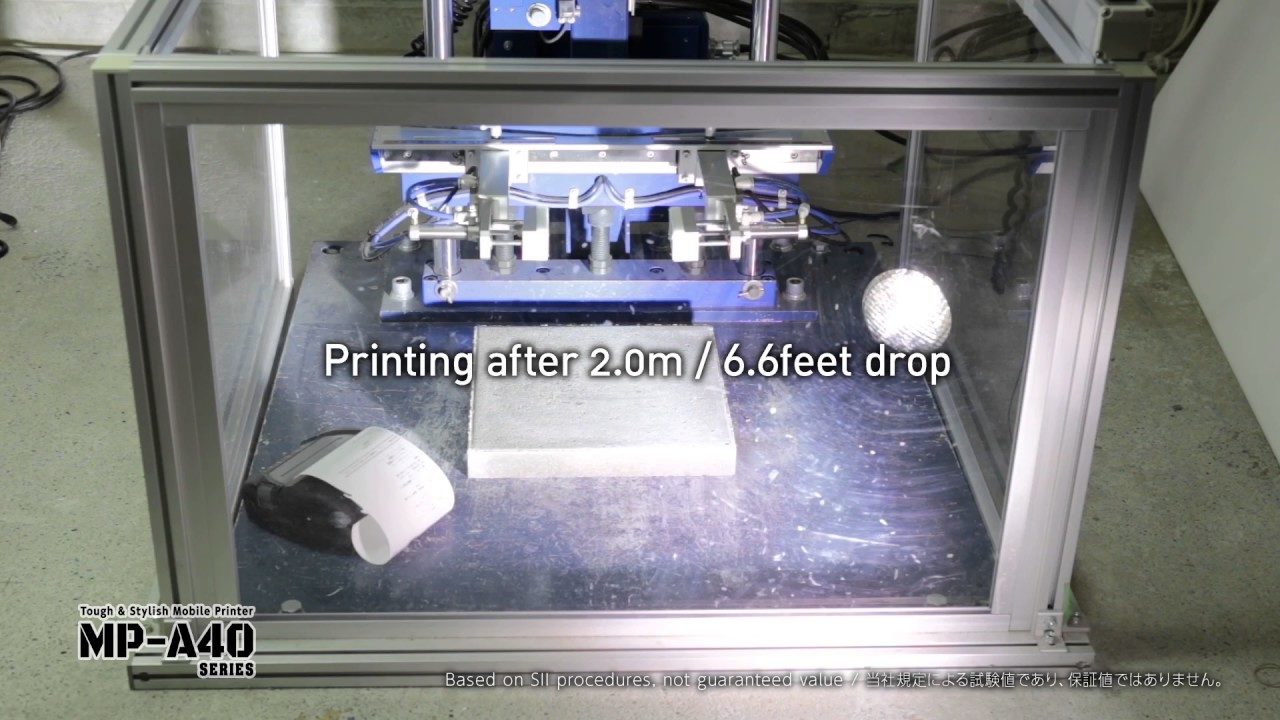

With the ability to withstand multiple drops from up to 6.6 feet (2 meters), the MP-A40 Series Mobile Printers from Seiko are known for their highest level print speeds currently available on the market. Imagine being able to print high-resolution receipts at 100 mm per second! What’s more is after several tests performed in our product lab, the MP-A40 mobile printer was able to perform at 100% after multiple drops.
Simple Operation, Stylish Design
With up to a 4-inch paper width, and weighing more than 1.5 pounds, the MP-A40 Series mobile printers are built tough, but that doesn’t mean they lack in style or simplicity. With an easy drop-in paper setting and easy access button, the printers offer a smart and robust design that easily fit into the palm of your hand, or belt clip; a small carry-on case offers the option of over-the-shoulder transport.
Features
The MP-A40 Series Mobile Printers offer compatibility with the latest operating systems including Windows, 7, 8, 8.1 and 10. There is also SDK availability for both Android and Windows CE print class libraries for added mobility. Other option parts include AC adapter, battery pack, AC cable, battery charger (for both single and quad battery), car charger and USB cable. The printers also offer auto-detection Bluetooth interface and Wi-Fi capabilities, providing added value and easy transition from cable to wireless communications.
- 100% performance after multiple drops of up to 6.6 feet.
- High-resolution receipts at 105 mm/second.
- Stylishly rugged and ergonomic design.
- Applications such as e-citations, parking tickets, accident reports and Labeling.
- Mobility in a durable and robust package.
- MIL-SPEC 810G approved.
- IP54 RATING.
- Compatible with Windows, iOS & Android systems.
Available as a set with belt clip, Battery pack, Power supply and USB cable.
Options
- Shoulder Strap
- Car Charger
- Single and Quad Battery Charger
SII Portable Print Service for Android and iOS
The Print Service recognizes Bluetooth and WLAN coupled Seiko Instruments printers, and allows printing directly from various apps (for example the browser).
The following printers are supported:
- MP-B20 – 2″ Portable Printer
- MP-B30 – 3″ Portable Printer
- MP-B30L – 3″ Portable Printer
- MP-A40 – 4″ Rugged Portable Printer
- DPU-S445 – 4″ Portable Printer
- DPU-S245 – 2″ Portable Printer
- RP-F10 – POS Receipt Printer
Specification
Model | MP-A40 | |
---|---|---|
*1 Selected model. *2 test performance by specified condition. *3 Use recommended thermal papers. *4 Excluding protrusion *5 Including battery, excluding roll paper *6 Please see “Associated software tool” for detailsESC/POS™ is a registered trademark of SEIKO EPSON Corporation. Windows® is a registered trademarked of Microsoft Corporation(USA). Android™ is a trade mark of Google Inc. |
||
Printing | Method | Thermal line dot printing |
Number of dots/line | 832 | |
Resolution (dots/mm) | 8 | |
Paper width (mm) | 80/100/105/112 | |
Printing width (mm) | 104 | |
Speed (mm/sec) max | 105 | |
Outside diameter of paper roll (mm) max | ф 58 | |
Character matrix (H×W mm) | 24 x 12, 24 x 24, 16 x 8, 16 x 16 | |
Character dimensions (H×W mm) | 3.0 × 1.5, 3.0 × 3.0, 2.0 × 1.0, 2.0 × 2.0 | |
Type of Paper | Roll paper, Label roll paper | |
Character type | Codepage (17 pages), Katakana character set, User-defined character, Downloaded character, Optional font, JIS 1st and 2nd level Kanji, Special characters |
|
Bar code | UPC-A/E, JAN(EAN)8/13, ITF, CODE39, CODABAR, CODE93, CODE128, PDF417, QR Code, MaxiCode, Data Matrix, GS1 Databar |
|
Power supply(v) | Option: Specified AC adapter, Li-ion battery | |
Communication interface | USB, Bluetooth® *1 | |
Input buffer | 4k bytes | |
Command | ESC/POS™ conformity, CPCL conformity, HTML command | |
Cutting | Tear bar | |
Drop Rating | 2.0m (6.6feet) multiple*2 | |
IP rating | IP54*2 | |
Operating temperature (°C) | -20 to 50 | |
Service life (km) | 50*3 | |
Dimensions (WxDxH mm) | 156 × 152 × 71*4 | |
Mass (g) | Approx. 760*5 | |
Standard | FCC, CE, VCCI | |
Bundled items | Belt clip, Partition plate | |
Options | AC adapter, Battery pack, Battery charger (single/quad), AC cable, USB cable, Serial cable, Car charger, Strap |
|
Software*6 | Printer Driver/SDK, Windows® CE SDK, Android™ SDK, iOS SDK |
Printer Drivers / SDK
Please see https://seiko-instruments.de/thermal-printer/ for the latest drivers.
