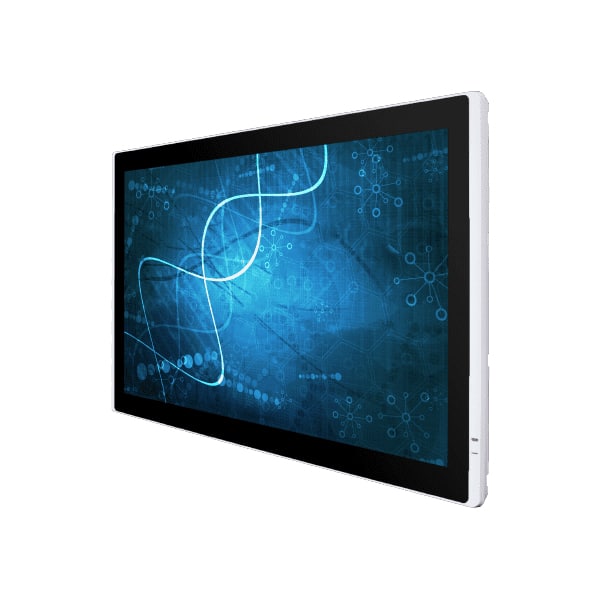

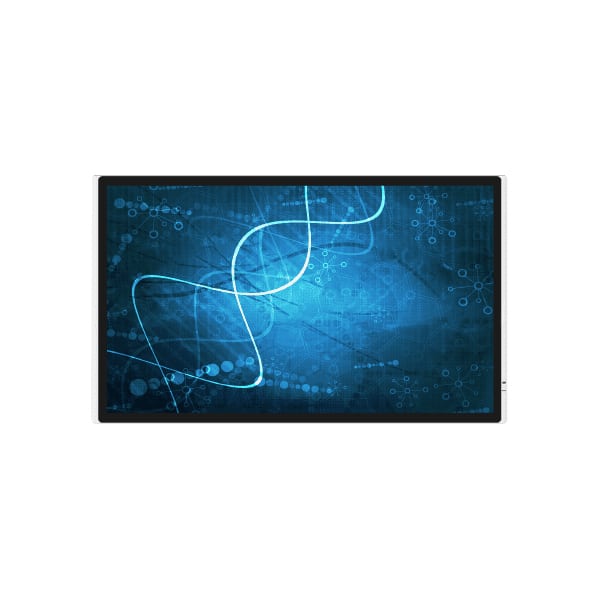

Winmate W32L100-PTA1-SDI 32″ 4K SDI Multi-Touch Medical Display
- Product Name: Winmate W32L100-PTA1-SDI
- Screen Size: 32”
- Resolution: 4K UHD (3840 x 2160)
- Features: Projected Capacitive Touch, Bottom side keys x 5, Fanless and Ventless design, Easy-to-Clean, Support 12G-SDI, HDMI (Optional), DP variety signal input, Front IP65
Description
The Winmate Multi-Touch Medical Display presents a cutting-edge solution with its advanced multitouch interface, specifically designed for seamless interaction with applications through intuitive hand gestures on Windows OS. This innovative display offers a user-friendly experience, allowing healthcare professionals to navigate and operate their applications effortlessly.
With its specialized DICOM pre-set mode, the Winmate Multi-Touch Medical Display caters to the requirements of modern healthcare environments. In filmless settings, where medical professionals rely on electronic clinical records and DICOM images, this display excels at delivering accurate and detailed visuals. It ensures precise rendering of medical imagery, maintaining the integrity and quality of DICOM data.
By integrating multitouch capabilities and the DICOM pre-set mode, the Winmate Multi-Touch Medical Display provides healthcare practitioners with a versatile and efficient tool for visualizing and managing medical information. It enhances productivity, streamlines workflows, and enables seamless interaction with clinical records and DICOM images, contributing to improved patient care and diagnostic processes.
Key Features
- 32” Medical Display with 4K UHD (3840 x 2160) native resolution
- Projected Capacitive Touch
- Bottom side keys x 5
- Fanless and Ventless design, Easy-to-Clean
- Support 12G-SDI , HDMI (Optional) , DP variety signal input
- Front IP65
Specification
Display
Size – 32 inches
Touch / Glass – Projected Capacitive Multi Touch Screen
Resolution – 3840×2160
Panel Brightness – 350 nits
Contrast Ratio – 1000:1
View Angles – 89,89,89,89
Display Colour – 1.07B Colours
Active Area – 708.48 x 398.52 mm
Environment
Operating Humidity – 10% to 90% RH, non-condensing
Operating Temperature – 0°C to 35°C
Storage Temperature – -20 °C to 60 °C
Certification
Certification – CE, FCC
Compliance
Compliance – IEC 60601-1:2005 + A1:2012 (Ed. 3.1) IEC 60601-1-6:2010 + A1:2013 (Ed. 3.1) IEC 62366:2007 + A1:2014 (Ed. 1.1) ANSI/AAMI ES60601-1:2005/A1:2012 and C1:2009/(R)2012 and A2:2010/(R)2012 CAN/CSA-C22.2 No.60601-1:14 EN 60601-1-2:2015, IEC 60601-1-2:2014 (Ed. 4.0) EN 55032/EN 55024, FCC part 15B EN 62368-1:2014 RoHS-2, REACH, WEEE compliant
IO Ports
USB Port – 1 x USB for Touch Screen
Serial Port – 1 x RS232 (Optional)
Video – 1 x 12G-SDI In 1 x 12G-SDI Loop Out 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional)
Audio – 2 x Speaker
Mechanical
Dimension – 799 x 478 x 63.7 mm

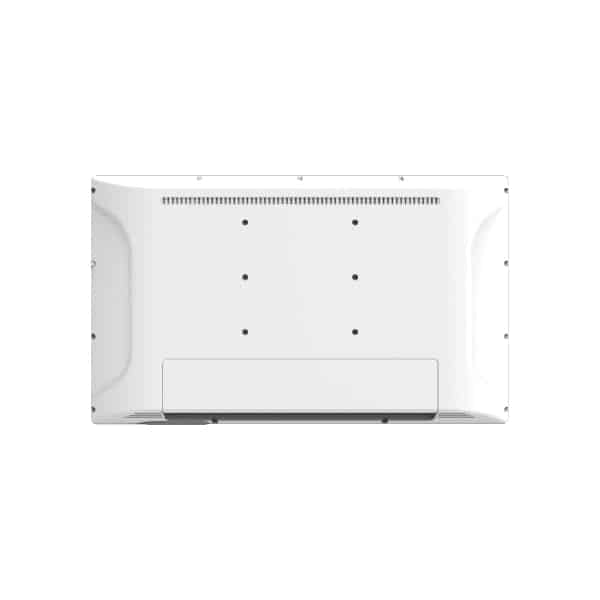

Mounting – VESA Mount
Enclosure – Plastic
Cooling System – Fanless Design
Accessory
Accessory – User Manual (Hardcopy) 110~240V AC Power Adapter Power Cord Display Port Cable SDI Cable HDMI Cable USB Cable for Cable Remote Controller
Optional Accessory – RS232 Cable (Optional)
Power
Power Rating – 24V DC in
Control
Button – 5 Keys: – , + , Power , Esc , Enter
