Jetway HPC080SC 8.0″ Intel Celeron N3350 Dual Core Fanless HMI Panel PC

  • Product Name: Jetway HPC080SC FP1900B
  • Screen Size: 10.1″
  • CPU: Intel Apollo Lake N3350 1.1GHz/DC processor
  • RAM: 1* DDR3L SO‐DIMM (Max 8GB)
  • Expansion: 1 * M.2 Socket (2242 size), 1* Mini PCIe for WIFI or 3G/4G
  • Other features: 10.1” 400 nits high brightness TFT LCD with LED backlight, 10-points Multi Capacitive Touch, Cable less, Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casings, Edge-to-edge narrow bezel design and Fanless cooling system, Design for easy Wall mount, Panel Mount, VESA Mount installation, A true Flat, easy-to-clean front surface with edge-to-edge design, USB3.0 Support Lock Device, Front IP65 for protection against water and dust, 9-28V DC-input Support, with EOS, OVP design

Description

Jetway HPC080SC FP3350 Flat-Panel Fanless Panel PC combines industrial-grade durability with a sleek, modern design—ideal for applications such as retail, hospitality, healthcare, logistics, self-service kiosks, residential automation, digital signage, and meeting room registration.

It features a 10-point capacitive multi-touch screen and a high-brightness TFT LCD with LED backlight for sharp, responsive visuals. The cable-free, narrow-bezel design allows for easy HDD and memory installation.

The true flat, edge-to-edge front panel is easy to clean and supports flexible mounting options including Wall, Panel, and VESA mounts with integrated mounting clips.

Features

  • 8.0” 400 nits high brightness TFT LCD with LED backlight
  • 10‐points Multi Capacitive Touch
  • Streamlined enclosure for highly efficient heat dissipation
  • Enclosed in robust aluminium casings
  • A true Flat, easy‐to‐clean front surface with edge‐to‐edge design
  • Edge‐to‐edge narrow bezel design and Fanless cooling system
  • USB3.0 Support Lock Device
  • Front IP65 for protection against water and dust
  • 12V DC‐input Support, with EOS, OVP design
  • JetWay-01

Specification

Display Touch Screen
IP65, NEMA 4 rugged protection, metal front bezel projected capacitive type
8.0″ With LED Backlight 163.05 x 122.54mm ±0.2mm active range
400 nits Transparency ≧ 85%
16.7M display color Operating force ≦ 50g
1024 x 768 @60Hz resolution Surface Hardness ≧ 6H
160°/160° viewing angle (H/V) Glass haze value≦3%
0.158 x 0.158mm pixel pitch
4:3 aspect ratio
700:1 contrast ratio
30ms response time

Case Main System
Aluminum panel Intel Apollo Lake N3350 1.1GHz/DC processor
Iron case 1* DDR3L SO‐DIMM (Max 8GB)
Silver + white color 128MB SPI Flash ROM
Spray paint coating requirement Watchdog Timer 256 levels, 0~255 sec.
  OS Support Windows 10 / Linux

Storage Expansion
1 * M.2 Socket (2242 size) 1* Mini PCIe for WIFI or 3G/4G

I/O connector Power Input
2* USB3.0 AC version: 100~240V AC‐DC 60W power adapter or
1* RS232/422/485 + 1* RS232 DC version: 12VDC with over current protection fuse
1* HDMI
1* LAN (Realtek RTL8111H Gigabit LAN)
1* Locking Jack 12V DC input
1* Sim card holder
1* Power button

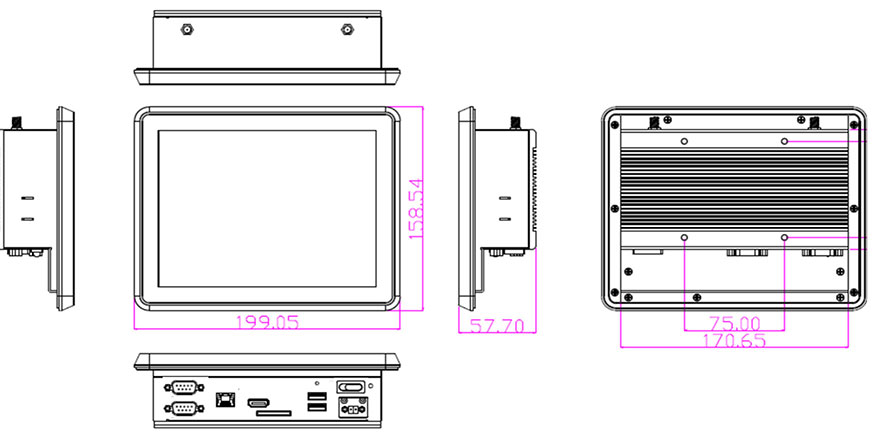

Power consumption Dimensions
13w 199.05 * 158.54 * 57.70mm

Compliance Safety
CE, FCC, IP65(Front)‐Option Shock: 11ms duration
  Vibration: 5~500Hz/1 Grms

Temperature Warranty
Operating: ‐10°C ~ 60°C 2 Years Limited Warranty
Storage: ‐20°C ~ 70°C (Panel and Touch is only 1 Year Warranty)
