DFI VC653-BT454 Fanless In-Vehicle System E3845

• DFI VC653-BT454 – Fanless In-Vehicle System
• Atom-based Fanless In-Vehicle System
• 2 x SATA 2.0 External Drive Bay
• Rich I/O ports: 4 COM, 1 USB 3.0, 3 USB 2.0
• Supports 3 Mini PCIe, 1 M.2, 2 SIM
• Extended operating temperature: -30 to 70°C
• 15-Year CPU Life Cycle Support

Compare

Description

  • Atom-based Fanless In-Vehicle System
  • 2 x SATA 2.0 External Drive Bay
  • Rich I/O ports: 4 COM, 1 USB 3.0, 3 USB 2.0
  • Supports 3 Mini PCIe, 1 M.2, 2 SIM
  • Extended operating temperature: -30 to 70°C
  • 15-Year CPU Life Cycle Support


Specification

System
Processor
Intel Atom Processor E3800 Series, BGA 1170
Intel Atom E3845, Quad Core, 2M Cache, 1.91GHz, 10W
Intel Atom E3827, Dual Core, 1M Cache, 1.75GHz, 8W
Memory
Two 204-pin SODIMM up to 8GB
Dual Channel DDR3L 1333MHz
BIOS
AMI SPI 64Mbit
Graphics
Controller
Intel HD Graphics
Display
1 x Smart Display
1 x DP++
VGA: resolution up to 1920×1200 @ 60Hz
DP++: resolution up to 2560×1600 @ 60Hz
Storage
External/Internal
2 x SATA 2.0 Drive Bays (External swappable)
Expansion
Interface
2 x Full-size Mini PCIe (PCIe/USB)
1 x Half-size Mini PCIe (PCIe/USB)
1 x M.2 (PCIe x4)
2 x SIM
Audio
Audio Codec
Realtek ALC888 5.1-channel
LED
Indicators
1 x Power LED
2 x Storage LEDs

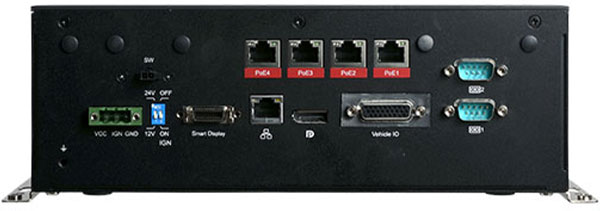

I/O
Serial
2 x RS-232 (DB-9)
USB
1 x USB 3.0 (type A)
2 x USB 2.0 (type A)
Display
1 x Smart Display incl. VGA, 12V out, Audio out and USB
1 x DP++
Buttons
1 x Reset Button
Vehicle I/O
8-bit GPIO
2 x UART (RX/TX only)
2 x CANBus
(Supports Isolation)
PoE
4 x POE (Optional) Support 802.11af up to 15.4W out per port
Audio
1 x Mic-in, 1 x Line-out
Antennas
5 x Antenna Hole
Watchdog Timer
Output & Interval
System Reset, Programmable via Software from 1 to 255 Seconds
Power
Type
Isolated 9~36V DC-in with Ignition control
Connector
3-pin Terminal Block (VCC/ACC/GND)
OS Support
OS Support
Win7 (default), WES 7, Win10 IoT Enterprise
Linux Ubuntu 16.04
Environment
Operating Temperature
-30 to 70°C (SSD)
-20 to 50°C (HDD)
Storage Temperature
-40 to 85°C
Mechanism
Construction
Aluminum + Metal Aluminum
Mounting
Wall Mount (available upon request)
Dimensions (W x H x D)
TBD
Weight
TBD
Standards and Certifications
Shock
MIL-STD 810G 516.6, 11ms (Only SSD Support)
Vibration
MIL-STD 810G 514.6C-3
Certifications
CE, FCC Class B, ECE R10, E-MARK (E13)
Packing List
Packing List
1 VC653-BT system unit
6 mounting screws for Mini PCIe module
1 3-pole female terminal block
1 Quick Installation Guide
