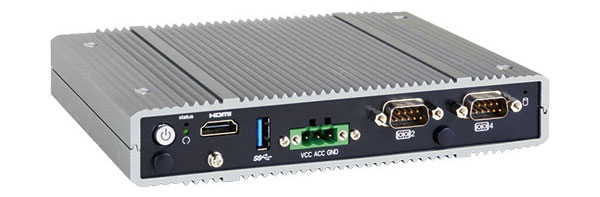

DFI VC230-BT E3825 Fanless In-Vehicle System
• DFI – VC230-BT3051-252 – VC230-BT Fanless In-Vehicle System
• Anti-vibration and fanless In-Vehicle computer
• Supports ignition delay on/off function
• 1 mSATA, eMMC (optional), microSD (optional)
• Supports Wi-Fi, 3G, and GPRS application
• 15-Year CPU Life Cycle Support
Description
VC230-BT, a fanless vehicle system, is built on the energy-efficient Intel Atom E3800 series processors. The system is capable of handling more tasks with its rich I/O and provides more opportunities for future expansion. Equipped with excellent heat dissipation capability as well as shock resistance, it delivers the ability to improve in-vehicle experiences with better reliability in extreme environments.
Features
- Anti-vibration and fanless In-Vehicle computer
- Supports ignition delay on/off function
- 1 mSATA, eMMC (optional), microSD (optional)
- Supports Wi-Fi, 3G, and GPRS application
- 15-Year CPU Life Cycle Support
An Abundance of I/O

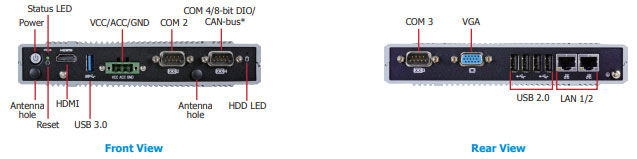

The VC230-BT has versatile I/O interfaces, including 2 GbE ports, one VGA and HDMI port, 5 USB ports, and 3 COM/DIO ports diverse of applications in the Internet of Vehicles (IoV).
Specification
|
System
|
|
Processor
|
|
Intel Atom Processor E3800 Series, BGA 1170
|
| Intel Atom E3845, Quad Core, 2M Cache, 1.91GHz, 10W |
| Intel Atom E3825, Dual Core, 1M Cache, 1.33GHz, 6W |
|
Memory
|
|
4GB/2GB ECC Memory Onboard
|
| Single Channel DDR3L 1333MHz (-E45) |
| Single Channel DDR3L 1066MHz (-E25) |
|
BIOS
|
|
AMI SPI 64Mbit
|
|
Graphics
|
|
Controller
|
|
Intel HD Graphics
|
|
Display
|
|
1 x VGA
|
| 1 x HDMI |
| HDMI: resolution up to 1920×1080 @ 60Hz |
| VGA: 24-bit, resolution up to 2560×1600 @ 60Hz |
|
Dual Displays
|
|
VGA + HDMI
|
|
Storage
|
|
External/Internal
|
|
4GB/8GB/16GB/32GB eMMC Onboard (available upon request)
|
|
Expansion
|
|
Interface
|
|
1 x Full-size Mini PCIe (PCIe/USB/3G/GPRS/CAN-Bus)
|
| 1 x Full-size Mini PCIe (SATA) |
| 1 x Half-size Mini PCIe (PCIe/USB/LPC) |
| 1 x SIM |
| 1 x microSD (available upon request) |
|
Ethernet
|
|
Controller
|
|
2 x Intel I210AT PCIe (10/100/1000Mbps)
|
|
LED
|
|
Indicators
|
|
1 x Status LED
|
| 1 x HDD LED |
|
Front I/O
|
|
Serial
|
|
2 x RS-232/422/485 (DB-9) (one supports 8-bit DIO or CAN-Bus)
|
|
USB
|
|
1 x USB 3.0 (type A)
|
|
Display
|
|
1 x HDMI
|
|
Buttons
|
|
1 x Power Button
|
| 1 x Reset Button |
|
Wi-Fi Antenna
|
|
2 x Wi-Fi Module Antenna Hole
|
|
Rear I/O
|
|
Ethernet
|
|
2 x GbE (RJ-45)
|
|
Serial
|
|
1 x RS-232/422/485 (DB-9)
|
|
USB
|
|
4 x USB 2.0 (type A)
|
|
Display
|
|
1 x VGA
|
|
Audio
|
|
1 x Line-out (available upon request)
|
|
Wi-Fi Antenna
|
|
1 x Wi-Fi Module Antenna Hole
|
|
Watchdog Timer
|
|
Output & Interval
|
|
System Reset, Programmable via Software from 1 to 255 Seconds
|
|
Power
|
|
Type
|
|
Wide Range 9~36V
|
| In-Vehicle Power Management Includes Ignition On/Off and System On/Off Delay Time Control |
|
Connector
|
|
3-pin Terminal Block (VCC/ACC/GND)
|
|
OS Support
|
|
OS Support
|
|
Windows 7, WES 7, Windows 8, WES 8, Windows 8.1
|
| Linux (Distribution available upon request) |
| Note: Windows 10 will be available upon request. Please contact DFI for more information. |
|
Environment
|
|
Operating Temperature
|
|
-20 to 60°C
|
|
Storage Temperature
|
|
-40 to 85°C
|
|
Mechanism
|
|
Construction
|
|
Aluminum + Metal Aluminum
|
|
Mounting
|
|
Wall/VESA/DIN Rail Mount (available upon request)
|
|
Dimensions (W x H x D)
|
|
180mm x 33mm x 121.2mm (W x H x D)
|
|
Weight
|
|
800g
|
|
Standards and Certifications
|
|
Shock
|
|
Half Sine Wave 15G, 11ms, 3 Shock Per Axis
|
|
Vibration
|
|
MIL-STD 810G 514.5C-II
|
|
Certifications
|
|
Compliant by ISO 7637-2
|
|
TBD
|
|
Standards and Certifications
|
|
Shock
|
|
Operation:
|
| IEC 60068-2-27 Test Ea: Shock test |
| Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times) |
| Non-Operation: |
| IEC 60068-2-27 Test Ea: Shock test |
| Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times) |
|
Vibration
|
|
Operation:
|
| IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test |
| Random, 1Grms @ 5~500 Hz, 30min. |
| Non-Operation: |
| IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test |
| Sweep sine, 3Grms @ 10~500Hz, 30min. |
BVM Customisation Service
If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.
If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements.
Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.
Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.
Design | Develop | Test | Manufacture
With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality
Here’s a selection of our design, manufacturing & associated services: –
|
|
|
ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:
 Testing |
 Materials Management |
 Logistics and Tracking |
 External Manufacturing |
| • Burn in Test • Temp / Thermal Testing • Environmental Testing • Safety Testing • Software Compatibility Test |
• Vendor Selection and Component Procurement • Product Traceability • Obsolescence, End of Life and Last Time Procurement Management • Simple to use on-line RMA System |
• Traceability of Shipments • Product Labelling • OEM/Branded Packaging • System Branding • Custom Labels |
• Surface Mount: – High Speed Placement • Conventional Through Hole Insertion & Assembly • Automated Optical Inspection • Bespoke PCB Test |
