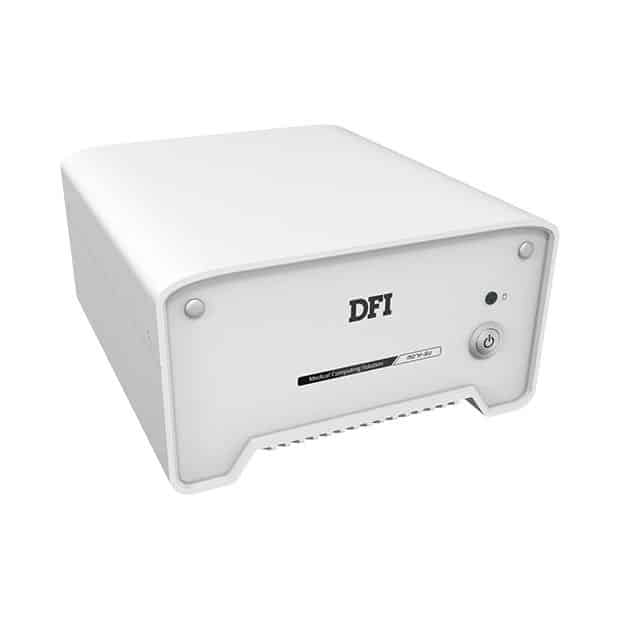

DFI MD711 i7 Medical Embedded System
- Product Name: DFI MD711-SU2061-100G
- System Type: Medical Embedded System
- CPU: 6th Generation Intel Core
- RAM: 2 DDR4 SODIMM up to 32GB
- Expansion: Supports 1 PCIe 16, 1 Mini PCIe, 1 M.2 slot
- Other features: 2 x 2.5″ SATA 3.0 drive bay, 4KV Isolated I/O ports: 2 Intel GbE, 2 COM, 2 USB 2.0, 15-Year CPU Life Cycle Support
Description
DFI’s MD711-SU is a high-performance fanless embedded box PC designed to work with medical equipment. This medical PC is equipped with 4kV isolated I/O ports and specialized heat dissipation technology with easy-to-clean design and silent operation. The ideal medical applications for this system covers nursing carts, operating rooms, healthcare information systems, and medical OEM equipment integration to ensure the best patient care.
Features
- 6th Generation Intel Core Medical Computing System
- 2 DDR4 SODIMM up to 32GB
- 2 x 2.5″ SATA 3.0 drive bay
- Supports 1 PCIe 16, 1 Mini PCIe, 1 M.2 slot
- 4KV Isolated I/O ports: 2 Intel GbE, 2 COM, 2 USB 2.0
- 15-Year CPU Life Cycle Support
Experiences How Small It Is

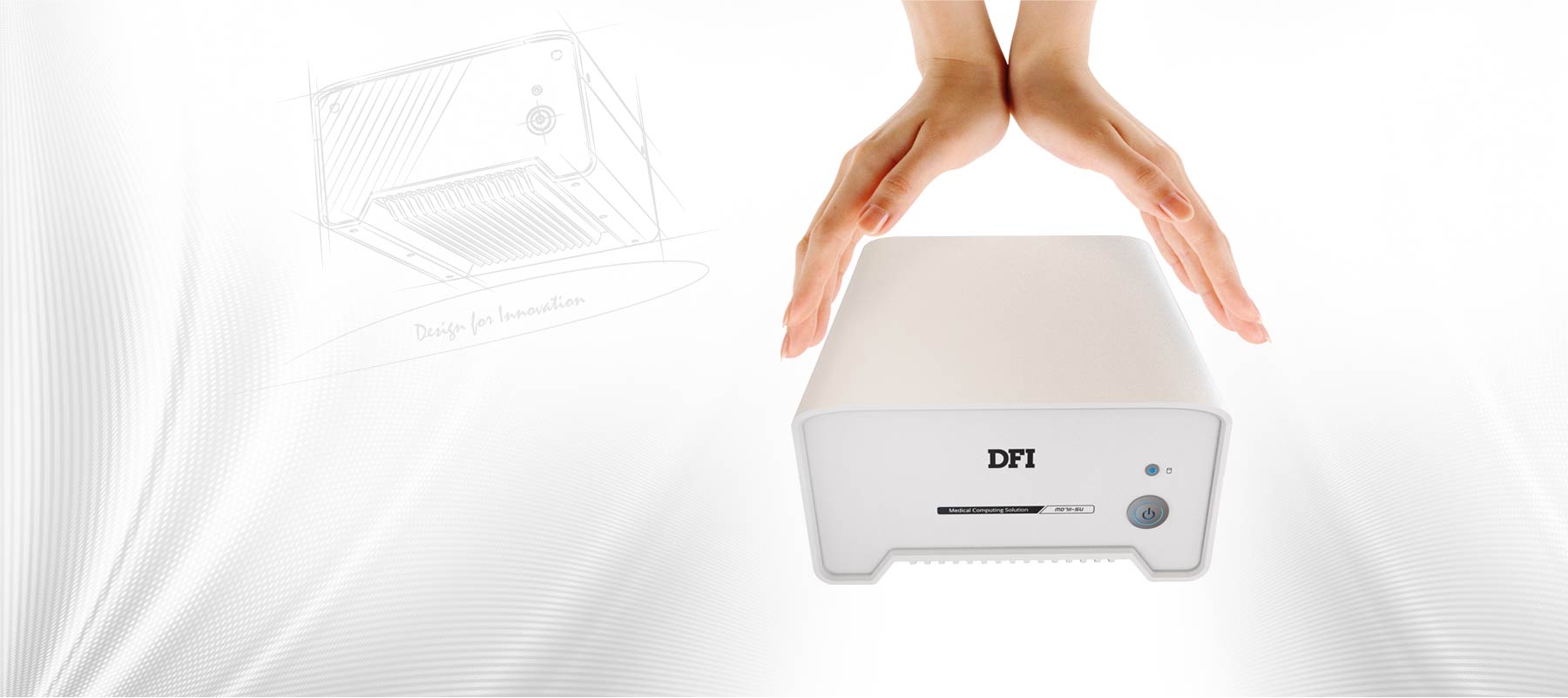

The size of MD711-SU is defying the public’s cognition in medical system. It measures at only 182mm x 97.6mm x 200mm (W x H x D) with light weight and high mobility compared to other traditional medical systems.
Leads Quietness and Trust
The medical computer has the most silent fanless design with long-term support, which can be used in noise-sensitive environments and makes a dedication to various healthcare applications.
Uses Safely with 4kV Isolated I/O

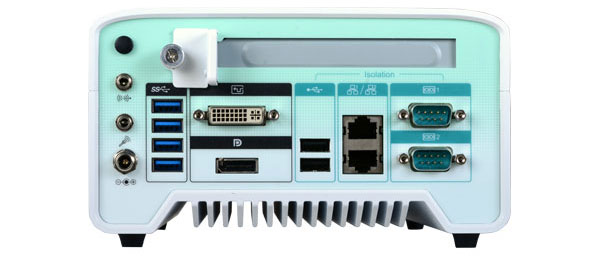

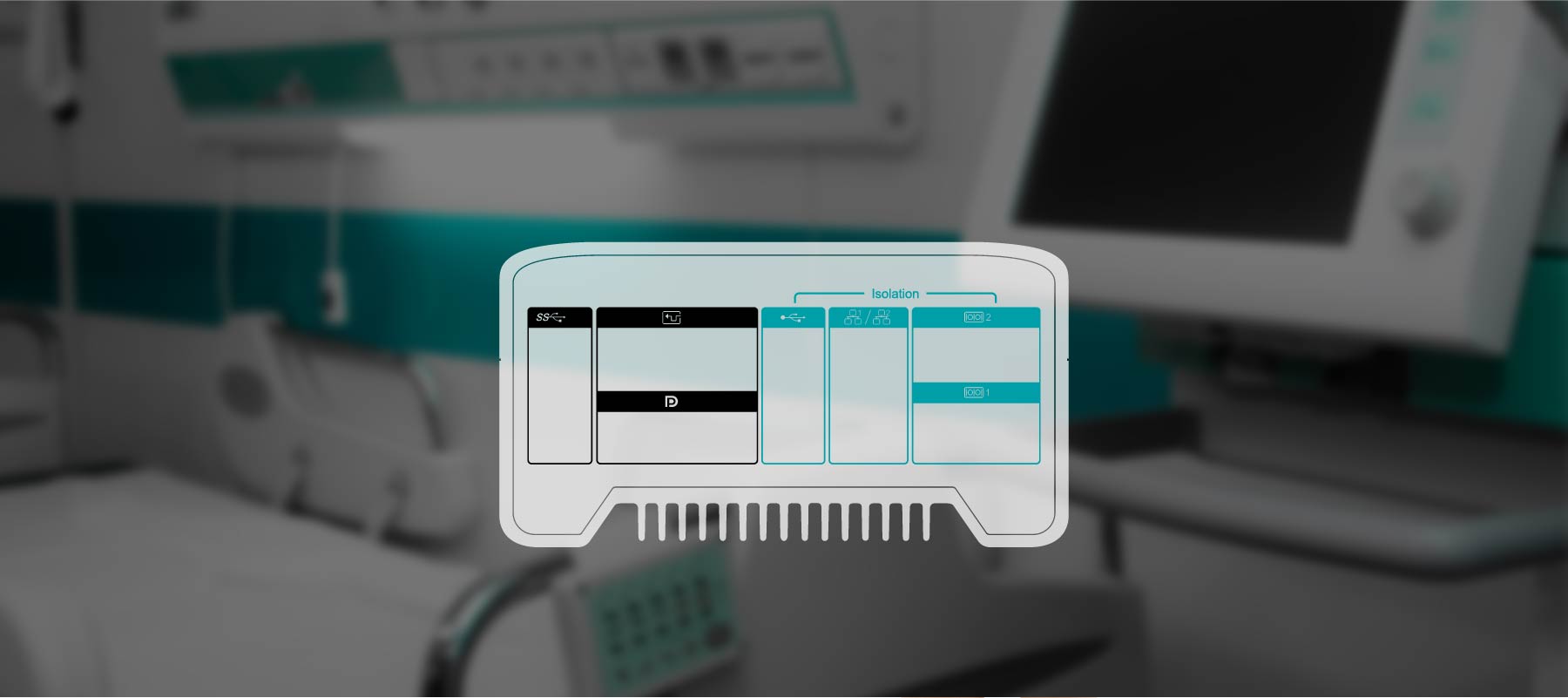

MD711-SU features isolated I/O ports (LAN, COM, USB) with 4kV support, ensuring speedy signal transmission without noise and easy integration with medical equipment.
Satisfies the Need of Expandability
An extra expansion slot further powers up the system with high-resolution imaging capabilities to enable various medical applications including ultrasound, endoscopy, and more.
Maintains Excellent Hygiene
The Nano-silver antibacterial agent on the system surface, tested and certified by FDA, transforms Oxygen into active Oxygen, which has a very strong sterilizing power and maintains the antibacterial effect for a long time.
Performs Effortless Cleaning

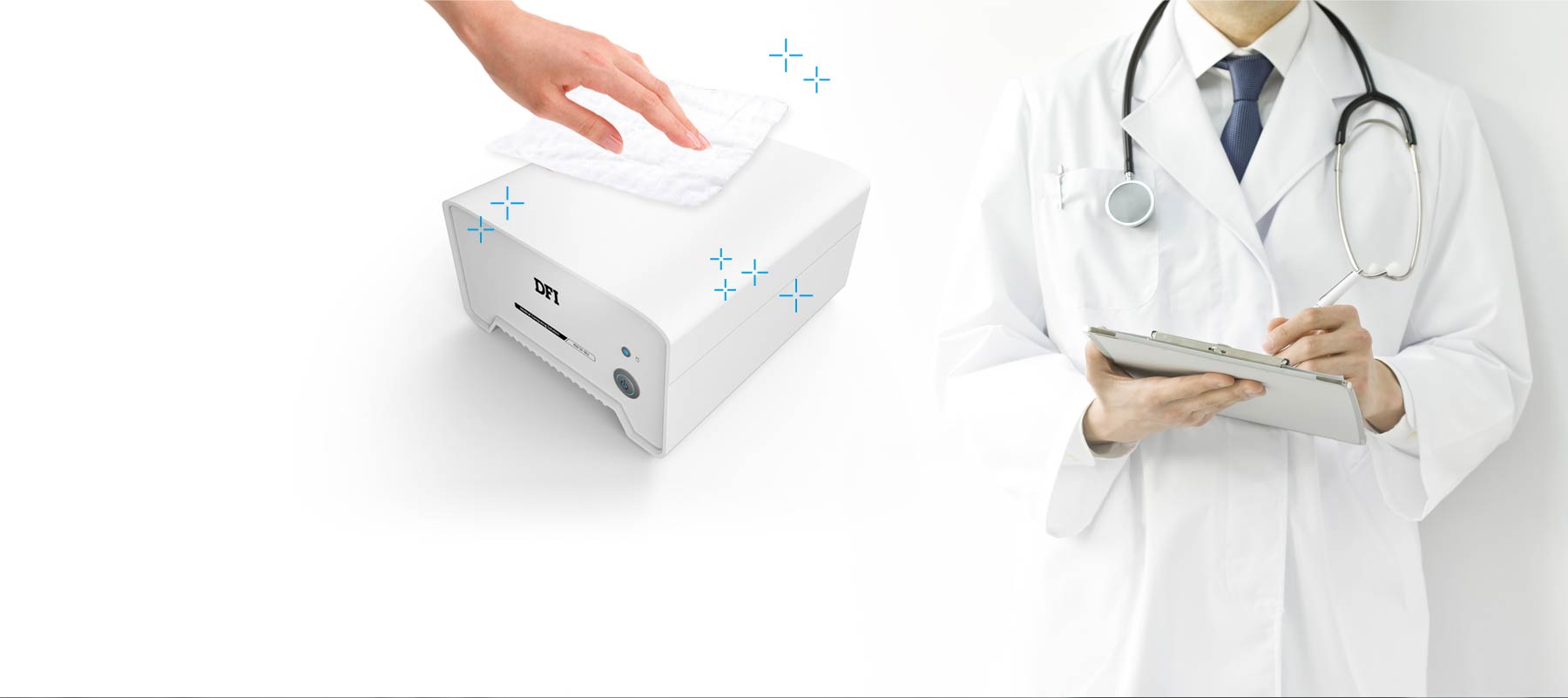

With pure white chassis to match the healthcare environment, the system features curved angles that improve patient and staff safety. Specifically designed for medical scenarios, the smooth shape enabled by a special downward fin allows easy cleaning and protects the system from being damaged by cleaning agents.
Says Goodbye to Mistake of Plugging
The I/O interface design offers improved user experience with intuitive port type labels, maximizing the efficiency of staff and enabling effortless implementation.
Specification
ystem
|
Processor
|
6th Generation Intel Core Processors, BGA 1356
|
Intel Core i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W |
Intel Core i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W |
Memory
|
Two 260-pin SODIMM up to 32GB
|
Dual Channel DDR4 2133MHz |
BIOS
|
Insyde SPI 128Mbit
|
Graphics
|
Controller
|
Intel HD Graphics GT Series
|
Feature
|
OpenGL 5.0, DirectX 12, OpenCL 2.1
|
HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 |
HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9 |
Display
|
1 x DP/HDMI (HDMI available upon request)
|
1 x DVI-D |
DP: resolution up to 4096×2304 @ 60Hz |
HDMI: resolution up to 2560×1600 @ 60Hz or 4096×2160 @ 24Hz |
DVI-D: resolution up to 1920×1200 @ 60Hz |
Dual Displays
|
DVI-D + DP
|
Storage
|
External/Internal
|
2 x 2.5″ SATA 3.0 Drive Bay
|
Expansion
|
Interface
|
1 x PCIe x16 (Gen 3) (x4 signal)
|
1 x Full-size Mini PCIe (PCIe/USB) |
1 x M.2 (2242 B Key) (PCIe/USB/SATA) |
Audio
|
Audio Codec
|
Realtek ALC888 5.1-channel
|
Ethernet
|
Controller
|
1 x Intel I210AT PCIe (10/100/1000Mbps)
|
1 x Intel I219LM with iAMT11.0 PCIe (10/100/1000Mbps) |
LED
|
Indicators
|
1 x Power LED
|
1 x HDD LED |
Front I/O
|
Buttons
|
1 x Power Button
|
Rear I/O
|
Ethernet
|
2 x GbE (RJ-45) (supports 4kV isolation)
|
Serial
|
2 x RS-232 (DB-9) (supports 4kV isolation)
|
USB
|
4 x USB 3.0 (type A) 2 x USB 2.0 (type A, full speed) (supports 4kV isolation)
|
Display
|
1 x DP/HDMI (HDMI available upon request)
|
1 x DVI-D |
Audio
|
1 x Line-out
|
1 x Mic-in |
Wi-Fi Antenna
|
3 x Wi-Fi Antenna Hole
|
Watchdog Timer
|
Output & Interval
|
System Reset, Programmable via Software from 1 to 255 Seconds
|
Power
|
Type
|
Wide Range 9~36V
|
Connector
|
DC Jack
|
OS Support
|
OS Support
|
Windows 7 (32/64-bit)
|
Windows 8.1 (64-bit) |
Windows 10 |
WES 7 |
WE8S |
Environment
|
Operating Temperature
|
0 to 40°C (w/0.7m air flow)
|
Storage Temperature
|
-20 to 85°C
|
Relative Humidity
|
5 to 90% RH (non-condensing)
|
Mechanism
|
Construction
|
Aluminum + Metal Aluminum
|
Mounting
|
Wall Mount
|
Dimensions (W x H x D)
|
182mm x 97.6mm x 200mm (7.17″ x 3.84″ x 7.87″)
|
Weight
|
TBD
|
Standards and Certifications
|
Shock
|
Operating: 3G, 11ms
|
Non-Operating: 5G, 11ms |
Vibration
|
Operating: Random 5~500Hz, IEC68-2-64 (3G) (SSD/mSATA), IEC68-2-64 (0.5G) (HDD)
|
Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G) (SSD/mSATA), IEC68-2-6 (1G) (HDD) |
Certifications
|
CE, FCC, RoHS
|
IEC 60601-1-2:2014 |
EN 60601-1-2:2015 |
ISO 14971:2007 |
Packing List
|
Packing List
|
1 MD711-SU system unit
|
Mounting screws for SATA drive |
Mounting screws for Mini PCIe module |
1 Quick Installation Guide |
1 CD disk includes: Drivers / Manual |
IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test |
Sweep sine, 3Grms @ 10~500Hz, 30min. |
MD711-SU2061
Fanless, Intel Core i7-6600U, 1 DP, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS
Fanless, Intel Core i5-6300U, 1 HDMI, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS
Fanless, Intel Core i7-6600U, 1 HDMI, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS
Related
Datasheet
Download(563 KB)BVM Customisation Service
If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.
If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements. Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.
Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.
Design | Develop | Test | Manufacture
With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality
Here’s a selection of our design, manufacturing & associated services: –
Design to Order: OEM/ODM Embedded Product Design ServicesFor customers designing a brand-new product from scratch or working with an existing prototype.
|
Build to Order: Embedded Computer Design and Customisation ServicesTake an existing system and we can:
Build to Order: Racks and Towers, Peli Case PCs and Mini-ITX PCs Embedded Software Services : Configuration, Integration and DeploymentPorting, Integration & Deployment
|
ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:
Testing |
Materials Management |
Logistics and Tracking |
External Manufacturing |
• Burn in Test • Temp / Thermal Testing • Environmental Testing • Safety Testing • Software Compatibility Test |
• Vendor Selection and Component Procurement • Product Traceability • Obsolescence, End of Life and Last Time Procurement Management • Simple to use on-line RMA System |
• Traceability of Shipments • Product Labelling • OEM/Branded Packaging • System Branding • Custom Labels |
• Surface Mount: – High Speed Placement • Conventional Through Hole Insertion & Assembly • Automated Optical Inspection • Bespoke PCB Test |
Click here to find out more.
