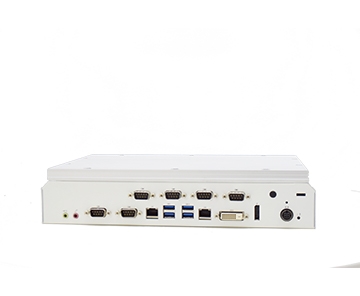

Wincomm WPC-766E-i5 Fanless Medical PC
- Product Name: Wincomm WPC-766-i5
- System Type: Medical White Fanless PC
- CPU: Intel Skylake Core i5/i7
- RAM: Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
- Expansion: 2.5” SATA SSD drive bay x 1, Mini PCIe x 2
- Other features: Highest Level EMC 4.0/Safety 3.1 Certification Ready, Support Intel vPro by Optional i7/i5 CPU, Fanless with Proprietary Thermal design, Rich 6x COM Ports for Control Applications, Black Heatsink/Housing as Option
Description
Wincomm medical product series are all designed with the latest Medical IEC-60601-1 safety 3.1 edition and EMC 4th edition certification, IEC-62133, Energy star 6.1 Compliance with FCC / CE / VCCI Class B. ESD levels are increased from 8KV air to 15KV air, and contact from 6KV to 8KV. The Medical 60601-1 4th certification means all our medical products can withstand higher amounts of environmental electromagnetic waves, resulting in more robust products and a substantial increase in user safety.
Features
- Intel Skylake Core i5/i7 FANLESS Medical Box PC
- Highest Level EMC 4.0/ Safety 3.1 Certification Ready
- Support Intel vPro by Optional i7/i5 CPU
- Fanless with Proprietary Thermal design
- Rich 6x COM Ports for Control Applications
- Black Heatsink/ Housing as Option
Specification
| Main System | |||
| CPU / Chipset | LGA1151 package 6th generation Intel Core i7/i5/i3/Pentium processor (35W max.) / Intel Q170 Chipset (Intel GL82Q170 PCH) | ||
| Graphic | Intel integrated HD Graphics 530 | ||
| RAM | Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB | ||
| OS Support | Win 7 pro, Win 7 embedded, Win 8 embedded, Win 8 industrial, Win10 | ||
| Storage | 2.5” SATA SSD drive bay x 1 | ||
| Expansion | Mini PCIe x 2 | ||
| I.O. Ports | |||
| USB | USB3.0 x 4 | ||
| COM | RS232 x 5, RS232/422/485 x 1 | ||
| LAN | RJ-45 x 2 ,Gigabit | ||
| Audio | Line-out, Microphone-in | ||
| Video Out | DVI-D x 1 + DP x 1 | ||
| Control Hot Key (R to L) | Power on/off, reset | ||
| Mechanical and Environmental | |||
| Cooling | Fanless | ||
| Power Input / Consumption | DC-in x 1, 9V~28V / 45.5 W (Full loading without Power Adapter) | ||
| Power Adapter | AC input 100 ~ 240V / 47 ~ 63 Hz / DC output 12V, 100W,1.2m DC cable (Medical Grade) | ||
| Temperature | Operating Temperature: 0~35℃ (Standard) / Storage Temperature: -20~60℃ | ||
| Humidity | Operating & Storage:10 ~ 90%, non-condensing | ||
| Housing | Silver aluminum heatsink and white coating housing (Optional Black heatsink/ housing | ||

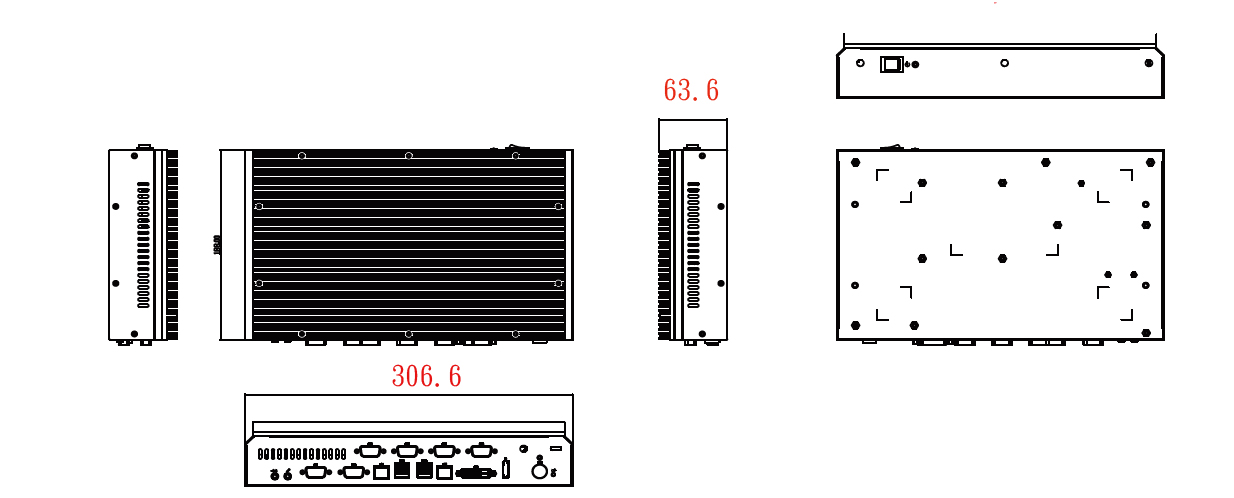

| Dimensions (Net) | 306.6 mm (H) x 188 mm (V) x 63.6 mm (T) | ||
| Weights (Net) | 3.0 kg (w/o power adapter/battery pack) | ||
| Certification | FCC/CE/VCCI Class B, cULus/EN/UL/60601-1, 60601-1-2 4th Edition, IEC62133, Energy Star 6.1 | ||
Add On Parts
- PM 2.0 module
- Wireless or Wireless + BT kit
- Equipotential Terminal Pin
- mSATA module
Customized
- Black heatsink/ housing,
- Additional USB Ports
BVM Customisation Service
If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.
If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements. Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.
Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.
Design | Develop | Test | Manufacture
With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality
Here’s a selection of our design, manufacturing & associated services: –
|
|
|
ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:
 Testing |
 Materials Management |
 Logistics and Tracking |
 External Manufacturing |
| • Burn in Test • Temp / Thermal Testing • Environmental Testing • Safety Testing • Software Compatibility Test |
• Vendor Selection and Component Procurement • Product Traceability • Obsolescence, End of Life and Last Time Procurement Management • Simple to use on-line RMA System |
• Traceability of Shipments • Product Labelling • OEM/Branded Packaging • System Branding • Custom Labels |
• Surface Mount: – High Speed Placement • Conventional Through Hole Insertion & Assembly • Automated Optical Inspection • Bespoke PCB Test |
Click here to find out more.
Manufacturer : Wincomm
CPU
- Powered By : Intel
- CPU Family : iCore
- CPU Generation :
- CPU Model : i5-6500TE
Memory
- Memory Installed :
- Memory Slots : 2
- Memory Type : 2133Mhz DDR4
I/O and Expansion
- Expansion Slots : Mini PCIe, SATA
- LAN Ports : 2
- Serial Ports : 6
- USB 2 Ports :
- USB 3 Ports : 4
- USB 3.X / USB C / USB 4.0 : 4
- Video Output : DisplayPort, DVI
- Multi Display : Dual Display
Operating System
- OS : Windows
Certifications
- Certifications : EC62133, EN60601-1, EN60601-1-2, UL60601-1
Features
- 5G-4G-GPS :
- Artificial Intelligence Use :
- IP Rating :
- Rugged :
- System Type : Box PC
- Wide Temp :
Categories : All Industrial and Embedded Computers, Medical PCs | SMART Healthcare | EN 60601 Certified, UL Certified Products
