DFI EC90A-GH Ryzen Ultra Small Fanless Embedded System
DFI EC90A-GH | AMD Ryzen R1000 Series | Ulrta Small Mini PC | Fanless Embedded System
Description
- AMD Ryzen™ Embedded R1000 Series
- Ultra Small Size: 110 x 80mm x 60mm (W x H x D)
- Expansion Options of 2 serial ports or LTE or WiFi
- User friendly of installing SIM card design
- I/O: 1 Intel GbE, 1 USB 3.1 Gen 2, 2 Micro HDMI
- 10-Year CPU Life Cycle Support Until Q1′ 30 (Based on AMD Roadmap)
Specification
System
Processor
AMD Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz (3.5GHz), 12W
AMD Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz (3.3GHz), 12W
AMD Ryzen™ Embedded R1305G, Dual Core, 3 CU, 1.5GHz (2.8GHz), 8-10W
AMD Ryzen™ Embedded R1102G, Dual Core, 3 CU, 1.2GHz (2.6GHz), 6W
AMD Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz (3.3GHz), 12W
AMD Ryzen™ Embedded R1305G, Dual Core, 3 CU, 1.5GHz (2.8GHz), 8-10W
AMD Ryzen™ Embedded R1102G, Dual Core, 3 CU, 1.2GHz (2.6GHz), 6W
Memory
One DDR4 2400 MHz SODIMM down up to 4GB/8GB (memory onboard)
BIOS
AMI SPI 64bit
Graphics
Controller
AMD Vega GPU with up to 3 computing units.
Feature
H.265 decode/encode support, VP9 decode.
Display
2 x Micro HDMI (HDMI 1.4)
Storage
Internal
eMMC up to 16/32/64/ 128GB
Expansion
Interface
1 x Mini-PCIe (PCIe signal)
Ethernet
Controller
1 x I211AT PCIe or 1 x Intel I210IT (optional)
LED
Indicators
Power status

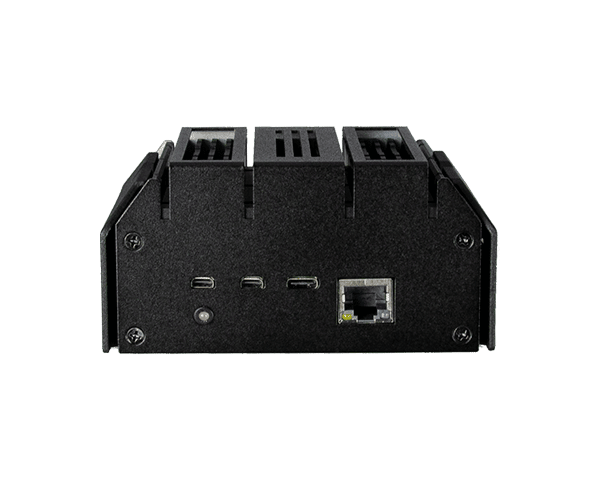

Front I/O
Ethernet
1 x GbE
USB
1 x USB 3.1 Gen2 type C
Display
2 x Micro HDMI (HDMI 1.4)
Rear I/O
Antenna
2 x Antenna (LTE or WiFi, via module) (optional)
Not available if selecting 2 x RS-232
Not available if selecting 2 x RS-232
Combo Port
(option 1) 1 x 8-bit DIO + 1 x SMBus
(option 2) 2 x RS-232
(two optional sku)
(option 2) 2 x RS-232
(two optional sku)
Watchdog Timer
Output & Interval
System reset, programmable via software from 1 to 255 seconds
Security
TPM
fTPM 2.0
Power
Type
12V DC-in
Connector
DC Jack with lock
OS Support
Microsoft
Windows 10 IoT Enterprise 64-bit
Linux
Linux
Environment
Operating Temperature
0~45°C
Storage Temperature
-40~85°C
Relative Humidity
5 to 90% RH (non-condensing)
Mechanism
Construction
Metal + Alumnium
Mounting
Wall mount /VESA mount
Dimensions (W x H x D)
110mm x 80mm x 60mm
Weight
700g
Standards and Certifications
Shock
Non-Operational Half-sine waveform: 5G
Vibration
Non-Operational Vibration 1.5 G
Certifications
CE, FCC
Country of Origin
Country of Origin
Taiwan
