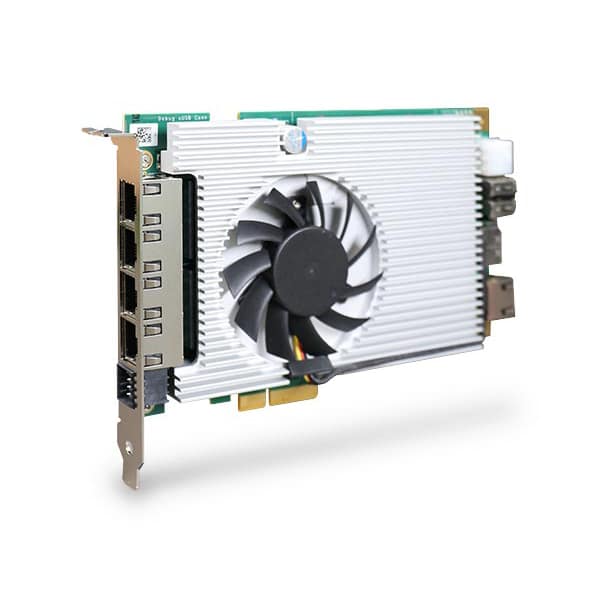

Neousys PCIe-NX154PoE NVIDIA Jetson Orin Frame Grabber Card with 4x PoE+ Ports

  • Product Name: Neousys PCIe-NX154PoE
  • System Type: Intelligent Frame Grabber Card with PoE+ ports
  • CPU: NVIDIA Jetson Orin NX
  • RAM: 8 – 16Gb
  • Expansion: x1 Gen2 PCI Express interface
  • Other features: Powered by NVIDIA Jetson Orin NX bundled with JetPack 5.1, Single-slot half-length PCIe card form factor, 4x PoE+ 2.5 GbE ports with a 50W total power budget, 100 TOPS AI inference performance capable of up to four simultaneous streams of 4K@30FPS video decoding, 1x isolated RS-485 and 1x RS-232, -25°C to 60°C operating temperature with airflow
Clear
Product Compare

Description

The PCIe-NX154PoE from Neousys Technology is an intelligent 4-port 2.5GbE PoE+ frame grabber card fueling 100 TOPS AI inference performance for modern vision inspection, intelligent video analytics and surveillance/ security applications. Powered by NVIDIA’s Jetson Orin NX system-on-module, PCIe-NX154PoE delivers 100 INT8 TOPS AI performance via its 1024 CUDA cores, 32 Tensor cores and 2 NVDLA® engines. It also features four 2.5GbE PoE+ ports with a 50W total PoE power budget to connect and power industrial GigE cameras or IP cameras.

With a standard single-slot half-length PCIe card form factor and utilizing 2.5GbE for host communication, PCIe-NX154PoE can be installed into a single PCIe x4 slot while operate on Gen2 x1 signals. This makes it an easy integration into any existing computer system, such as a 19″ rack-mount IPC or commercial off-the-shelf box PC. When installed into a vision computer system, PCIe-NX154PoE provides necessary camera connectivity, and it also offloads the deep-learning image processing from host CPU/GPU since image capture, video streaming, pre-processing, and inference are all computed on PCIe-NX154PoE.

Wide temperature -25°C to 60°C operation capability, and compatibility with Windows and Linux operating systems make PCIe-NX154PoE the perfect upgrade for legacy machine vision systems to leverage deep learning-based image processing such as object detection, classification, tracking, facial recognition, etc. It’s a revolutionary frame grabber card with intelligence for next-generation computer vision applications.

Key Features

  • Powered by NVIDIA® Jetson Orin™ NX bundled with JetPack 5.1
  • Single-slot half-length PCIe card form factor
  • 4x PoE+ 2.5 GbE ports with a 50W total power budget
  • 100 TOPS AI inference performance capable of up to four simultaneous streams of 4K@30FPS video decoding
  • 1x isolated RS-485 and 1x RS-232
  • x1 Gen2 PCI Express interface offering 2.5Gb/s
  • -25°C to 60°C operating temperature with airflow

Specification

System Core
Processor NVIDIA® Supporting NVIDIA® Jetson Orin™ NX system-on-module (SOM), comprising NVIDIA® Ampere GPU and ARM Cortex CPU
Memory 8GB/ 16GB LPDDR5 @ 3200 MHz on SOM
Storage Interface
M.2 NVMe 1x M.2 2242 M key socket (PCIe Gen4 x2) for NVMe SSD
Deployment I/O Interface
Bus Interface x1, Gen2 PCI Express
PoE 4x IEEE 802.3at PoE+. Max 25.5W per port. Total 50W power budget for 4 ports
Etherne 4x 2.5GBASE-T Ethernet ports
Serial Port 1x RS-232 port and 1x isolated RS-485 port
Development I/O Interface
Ethernet port 1x Gigabit Ethernet
USB 2x USB 2.0 ports
1x micro USB (OTG)
Video Port 1x DisplayPort, supporting 3840×2160 at 60Hz
DC Input 12V DC power input (for standalone development, or when total power consumption is more than 66W)
Mechanical
Dimension 167.7 mm (W) x 111 mm (H)
Weight
Environmental
Operating Temperature -25°C to 60°C with airflow (20W TDP mode) *
Storage Temperature -40°C ~85°C
Humidity 10%~90% , non-condensing
EMC CE Class A, according to EN 55032/55035 (pending)
FCC Class A, according to FCC Part 15, Subpart B (pending)
* For sub-zero and over 60°C operating temperature, a wide temperature NVMe is required.

Ordering Information

PCIe-NX154-JON8

100 TOPS Intelligent Frame Grabber with 4x PoE+ GbE ports by Jetson Orin NX (8GB)

PCIe-NX154-JON16

100 TOPS Intelligent Frame Grabber with 4x PoE+ GbE ports by Jetson Orin NX (16GB)

Accessories

PA-60W-OW

60W AC/ DC power adapter 12V/ 5A; cord end terminals for terminal block, operating temperature: -30 to 60°C

Datasheet

Download
