AAEON BOXER-6617-ADN Intel Alder Lake-N Fanless Computer
- Product Name: AAEON BOXER-6617-ADN
- System Type: Fanless Industrial Computer
- CPU: Intel Core i3 Processor N / Intel Atom Processor X (N-Series SoC)
- RAM: DDR5 4800MHz SODIMM x 1
- Expansion: M.2 2280 M-Key, M.2 2230 E-Key, M.2 3052 B-Key for 5G
- Other Features: Dual 2.5GbE ports, USB 3.2 Gen 2, Onboard TPM 2.0, 9 ~ 36V DC input, -20°C ~ 70°C wide temperature range, optional Hailo-8 AI Accelerator support
Description
The AAEON BOXER-6617-ADN is a fanless industrial computer powered by Intel® Core™ i3 N-Series or Intel® Atom® processors. It features DDR5 memory, dual 2.5GbE ports, and multiple M.2 expansion slots for storage, 5G, and AI acceleration. Designed for harsh environments, it supports wide operating temperatures (-20°C ~ 70°C) and a 9-36V DC input range, making it ideal for industrial and edge AI applications.
Key Features
- Intel Core i3 Processor N/Intel Atom Processor X
- Intel Processor N-series SoC (formerly Amston Lake/Alder Lake-N)
- DDR5 4800MHz SODIMM x 1
- 2.5GbE x 2
- M.2 2280 M-Key/M.2 2230 E-Key
- M.2 3052 B-Key for 5G
- SuperSpeed+ USB 3.2 Gen 2
- Onboard TPM 2.0
- Wide Range 9 ~ 36V DC input
- Super Wide Operating Temperature -20~70°C
- Hailo-8™ M.2 2280 AI Accelerator Module Support (Optional)
Specification
| SYSTEM | |
| CPU | Intel® Processor N50, Intel® Processor N97, Intel® Core™ i3-N305, Intel Atom® x7211E, Intel Atom® x7835RE, Intel Atom® x7433RE, Intel Atom® x7211RE |
| Chipset | Intel® SoC |
| System Memory | DDR5 4800MHz SODIMM x 1, up to 32GB |
| Display Interface | HDMI x 2 |
| Storage Device | M.2 2280 M-Key x 1 (PCIe [x2]), 2.5″ SATA HDD/SSD x 1 |
| Ethernet | RJ-45 x 2 for 2.5GbE LAN (Intel® I226) |
| I/O | HDMI x 2, RJ-45 x 2 for 2.5GbE LAN (Intel® I226), USB 3.2 Gen 2 x 2 (Type-A), USB 2.0 x 4 (Type-A), DB-9 x 6 for RS-232/422/485, Mic-in/Line-out, D-Sub Connector for DIO 8 Bit, 3-Pin Terminal Block for DC In x 1, 2-Pin Remote On/Off x 1, Reset Button x 1, Power Button with LED x 1 |
| Expansion | M.2 2280 M-Key x 1 (PCIe [x2]), M.2 2230 E-Key x 1 (for Wi-Fi), M.2 3052 B-Key x 1 (for 5G/LTE), SIM Slot x 1 |
| Indicator | Sys LED, Storage active LED |
| OS Support | Windows® 10 IoT Enterprise, Windows® 11 IoT Enterprise, Windows® 11 PRO, Linux Ubuntu 22.04 |
| POWER SUPPLY | |
| Power Requirement | DC-in 9-36V x 1 for 3-Pin Terminal Block |
| MECHANICAL | |
| Mounting | Wall Mount |
| Dimensions (W x H x D) | 8.42″ x 4.54″ x 2.59″ (214mm x 115.5mm x 65.8mm) without brackets |
| Gross Weight | 6.17 lb. (2.8Kg) |
| Net Weight | 4.4 lb. (2Kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -4°F ~ 158°F (-20°C ~ 70°C), IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| Anti-Shock | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| Certification | CE/FCC Class A |
AAEON Fanless Computers
- AAEON BOXER-6647-MTH Intel Core Ultra 7/5 Fanless Computer
- AAEON BOXER-6645U-RPL Intel 12/13/14th Gen Fanless Computer
- AAEON BOXER-6617-ADN Intel Alder Lake-N Fanless Computer

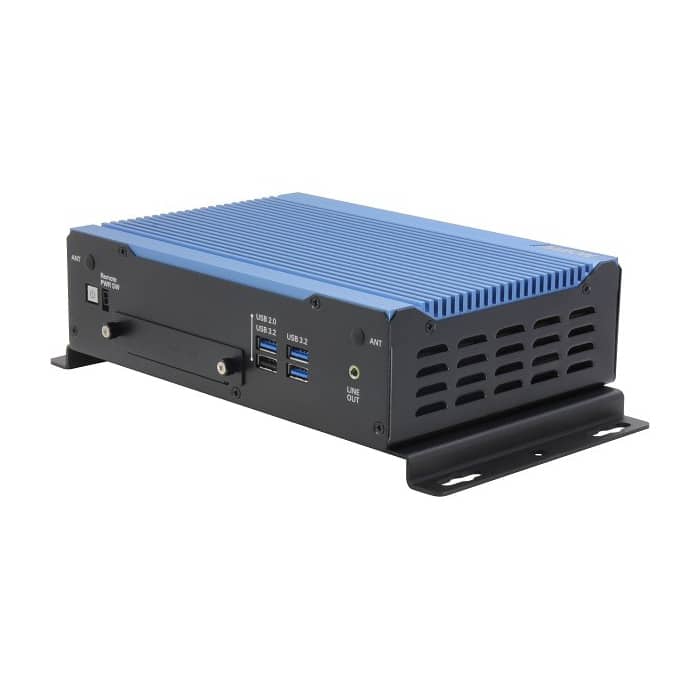

- AAEON BOXER-6646-ADP Intel 12/13th Gen Fanless Computer
