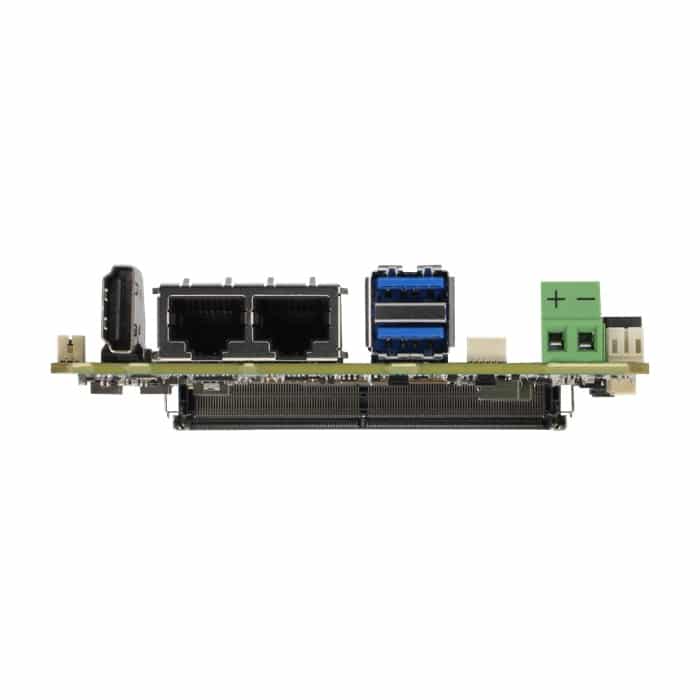

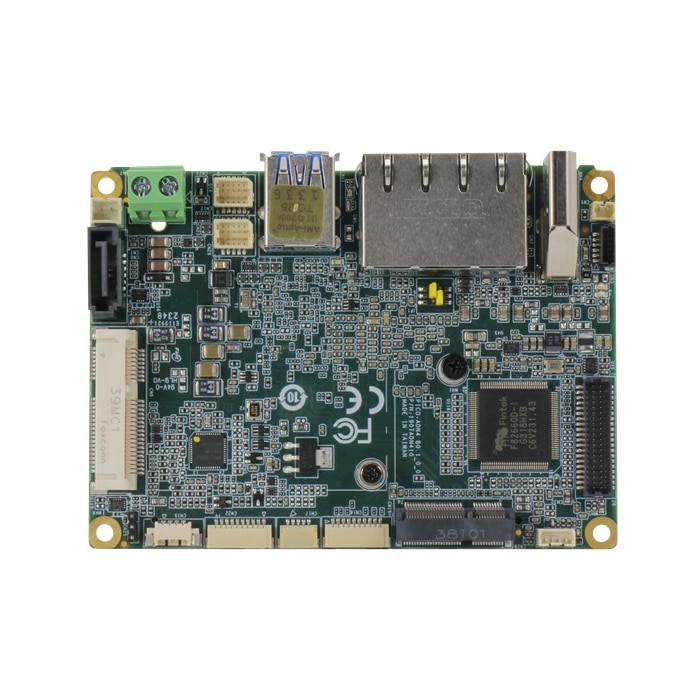

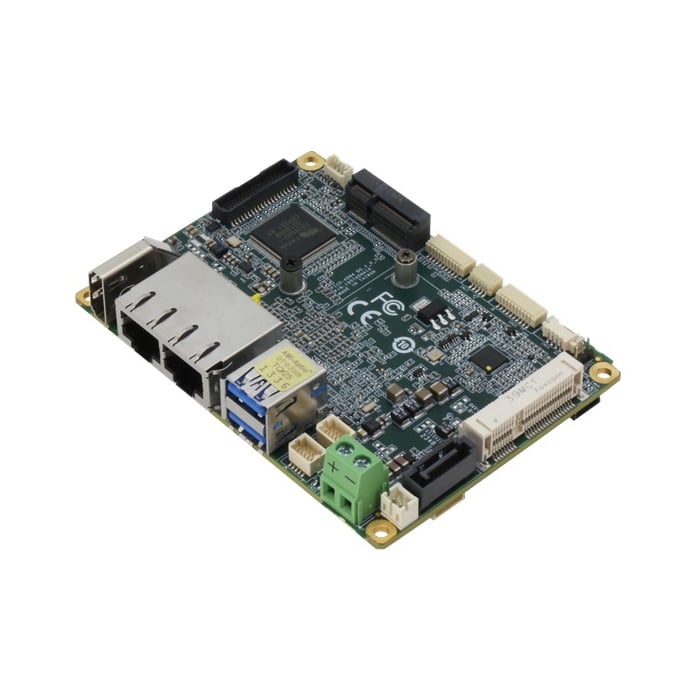

AAEON PICO-ADN4 Rev.B Atom x7000E / N-series Core i3 Pico-ITX SBC
- Product Name: AAEON PICO-ADN4 Rev.B
- Motherboard Form Factor: Pico-ITX
- CPU: Intel Atom x7000E / N-series Core i3
- RAM: DDR5 4800 SODIMM, up to 16GB
- Expansion: Full-size mSATA/mPCIe, M.2 2230 E-Key
- Other features: Dual Ethernet (2.5GbE + 1GbE), HDMI 1.4, eDP/LVDS, USB 3.2 Gen 2, RS-232/422/485, TPM 2.0, SATA 6Gb/s, DC 9-36V input (Optional)
Description
The AAEON PICO-ADN4 Rev.B is a compact Pico-ITX SBC featuring Intel Atom® x7000E or N-series Core™ i3 processors. It supports up to 16GB of DDR5 memory and offers versatile expansion with full-size mSATA/mPCIe and M.2 2230 E-Key slots. Ideal for industrial applications, it includes dual Ethernet (2.5GbE + 1GbE), multiple USB and RS-232/422/485 ports, HDMI, eDP/LVDS, and optional wide-range DC input (9-36V).
Key Features
- DDR5 4800 SODIMM, up to 16GB
- HDMI 1.4 x 1, eDP 1.4b/LVDS x 1
- 2.5GbE x 1, 1GbE x 1
- Full-size mSATA/mPCIe x 1, M.2 2230 E-Key x 1
- USB 3.2 Gen 2 x 2 ports, USB 2.0 x 4
- RS-232/422/485 x 2, RS-232 x 2
- TPM 2.0, SATA 6Gb/s, 4-bit GPIO, SMBUS/I2C
- DC 9 ~ 36V input (Optional via power adapter card)
Specificati1on
Form Factor | PICO-ITX |
CPU | Intel Atom® x7000E Series, Intel® Processor N-series, and Intel® Core™ i3 Processor N-series Processors: Intel® Processor N97 (4C/4T, 2.00 GHz, 12W) Intel® Core™ i3-N305 Processor (8C/8T, 1.80 GHz, 15W) Intel Atom® x7425E Processor (4C/4T, 1.50 GHz, 12W) |
Chipset | Integrated with Intel® SoC |
Memory Type | DDR5 4800, Single Channel SODIMM x 1, Max.16GB, Non-ECC |
BIOS | UEFI |
Wake on LAN | Yes |
Watchdog Timer | 255 Levels |
Security | TPM2.0 |
RTC Battery | Lithium Battery 3V/240mAh |
Dimension | 3.94″ x 2.84″ (100mm x 72mm) |
Gross Weight | 0.18 lbs (0.08 kg) |
OS support | Windows 10/11 (64 bit) Ubuntu 22.04.2/Kernel 5.19 |
power | |
Power Requirement | +12V (Optional: +9 ~ 36V, support by power adapter card) |
Power Supply Type | AT/ATX |
Connector | Phoenix 2-pin Connector (Default) Lockable DC Jack Connector (Optional) |
Power Consumption | Intel® x7835RE, DDR5 16GB x1, 3.06A@ +12V (TYPICAL) Intel® x7835RE, DDR5 16GB x1, 4.21A@ +12V (MAX) |
display | |
Controller | Intel® UHD Graphics for 12th Gen Intel® Processors |
LVDS/eDP | LVDS x 1 (18/24bit 2CH) 1920 x 1200 @60Hz eDP 1.4 x 1, 3840 x 2160 @60Hz (Optional) |
Display Interface | HDMI 1.4 x 1, 3840 x 2160 @30Hz |
Multiple Display | Up to 2 Simultaneous Displays |
audio | |
CODEC | Realtek ALC256 |
Audio Interface | Line-out (Optional, no audio function in WiTAS 2) |
Speaker | — |
external i/o | |
Ethernet | Intel® Ethernet Controller I226 2.5GbE, RJ-45 x 1 Realtek RTL8111H-CG, 1GbE, RJ-45 x 1, |
USB | USB 3.2 Gen 2 x 2 |
Serial Port | — |
Video | HDMI 1.4 x 1 |
INTERNAL I/O | |
USB | USB 2.0 x 4 |
Serial Port | COM1~2 (RS232/422/485, supports 5V/12V/RI ) COM3~4 (RS232) |
Video | LVDS/eDP x 1(Default: LVDS) Inverter x 1 (12V/2A) |
SATA | SATA 6.0Gbps x 1 +5V SATA Power Connector x 1 |
Audio | Line-out header x 1 (Optional, no audio function in WiTAS 2) |
DIO/GPIO | GPIO 4-bit |
SMBus/I2C | SMBus/ I2C x 1 (Default: SMBus) |
Fan | 4pins Smart Fan x1 |
Front Panel | HDD LED, PWR LED, Power Button, Buzzer, Reset |
Others | — |
expansion | |
Mini PCI-E/mSATA | Full-Sized mSATA/mPCIe x 1 (default: mSATA, select with BIOS) |
M.2 | M.2 2230 E-Key x 1 |
Others | — |
environment & certification | |
Operating Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
Storage Temperature | -40°F ~ 185°F (-40°C ~ 85°C) |
Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
MTBF (hours) | TBD |
EMC | CE/FCC Class A |
Ordering Information [PICO-ADN4 REV.B]
Part Number | PICO-ADN4-B10-0001 |
---|---|
cpu | Intel® Processor N97 |
memory | SD-DIMM |
display | HDMI x 1 LVDS x 1 |
storage | SATAIII x 1 |
lan | GbE x 1 2.5GbE x 1 |
usb | USB 2.0 x 4 USB3.2 Gen 2 x 2 |
com | RS232/422/485 x 2 RS232 x 2 |
expansion slot | M.2 2230 E-key x 1 miniCard (Full) x 1 |
power | +12V (Terminal block) |
operating temp | -20°C ~ 70°C |
audio | — |
others | SMBus x 1, TPM2.0, GPIO |
