IEI DM2 Series 10.1" - 23.8" Industrial Touch Screen Monitors

IEI DM2 Series 10.1″ – 23.8″ Industrial Touch Screen Monitors

Product Name: IEI DM2 Series
Screen Size: 10.1″ to 23.8″
Resolution: 1280 x 800, 1024 x 768, 1280 x 1024, 1920 x 720, 1920 x 1080
Features: Front OSD for easy adjustments, IP65-compliant aluminium frame, anti-glare & anti-UV PCAP, supports gloved operation and waterproof protection, built-in camera for AI facial recognition, front-positioned speakers for clear sound, USB 3.2 Gen1 Type-A with 10W support

Description

The DM2 Series from IEI is designed to perform reliably in the most challenging industrial settings. The DM2 Series features an IP65-rated front panel, robust all-metal housing, and operates seamlessly in extreme temperatures from -20°C to 60°C. Equipped with an HD camera and dual front speakers, it enhances both security and communication. Four USB 3.2 Gen 1 ports boost productivity, while the convenient panel mount design ensures easy installation. The DM2-W101 is not just a display—it’s a versatile solution for demanding industrial applications.

Model	LCD Size	Resolution	Brightness
DM2-W101	10.1”(16:10)	1280 x 800	400 cd/m²
DM2-104	10.4” (4:3)	1024 x 768	350 cd/m²
DM2-121	12.1” (4:3)	1024 x 768	500 cd/m² (1000 for HL)
DM2-150	15” (4:3)	1024 x 768	350 cd/m²
DM2-170	17” (5:4)	1280 x 1024	350 cd/m²
DM2-190	19” (5:4)	1280 x 1024	450 cd/m²
DM2-UW123	12.3” (8:3)	1920 x 720	850 cd/m²
DM2-W121	12.1” (16:10)	1280 x 800	500 cd/m² (1000 for HL)
DM2-W133	13.3” (16:9)	1920 x 1080	350 cd/m²
DM2-W156	15.6” (16:9)	1920 x 1080	450 cd/m²
DM2-W185	18.5” (16:9)	1920 x 1080	350 cd/m²
DM2-W215	21.5” (16:9)	1920 x 1080	350 cd/m²
DM2-W238	23.8” (16:9)	1920 x 1080	350 cd/m²


4:3	5:4	8:3	16:9	16:10

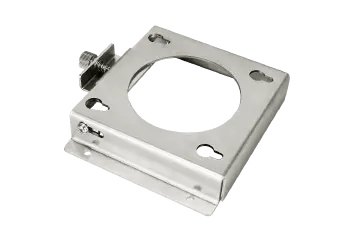

Mounting Kit

Key Features

Front OSD, easy access for setting adjustment
Speakers positioned at the front, ensuring clear sound delivery even in panel mount
Supports gloved operation and waterproof protection
Built-in camera, ideal for AI facial recognition
USB 3.2 Gen1 Type-A supports 10W
IP65 compliant front panel with aluminium frame
Anti-glare and anti-UV PCAP

Specification – DM2-W238 – See Datasheets for other models

Display
LCD Size	23.8” (16:9) – See Datasheets for other models
Brightness(cd/m2)	350 – See Datasheets for other models
Max Resolution	1920 x 1080 – See Datasheets for other models
Contrast Ratio	1000:1 – See Datasheets for other models
Backlight MTBF(hrs)	30000 – See Datasheets for other models
I/O Interface
I/O Ports	1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort1.2 1 x USB 3.2 Gen1 Type-B 4 x USB 3.2 Gen1 Type-A (5V2A) (Lite without) 1 x Line out 1 x 9V-36V DC jack 1 x 3-pin terminal block
Power
Power adapter	12V DC
Environment
Operating Temperature	0°C ~ 50°C
Humidity	10% to 95%@40°C (non-condensing)
Storage Temperature	-20°C ~ 60°C
IP Level	IP 65 compliant front panel
Physical Characteristics
Color	Black + Silver
Dimensions (LxWxH) (mm)	571.40 x 354.50 x 51.20 – See Datasheets for other models
Cutout Dimensions	553.20 x 332.50 – See Datasheets for other models
LCD
LCD Color	16.7M
Viewing Angle (H-V)	178°/178°
Touch
Touch Screen	10-point Projected capacitive touch window (Anti-UV, Anti-glare Surface)
Touch Controller	Capacitive:litek

Ordering Information

DM2-W101G-R10	10.1″ 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W101GL-R10	10.1″ 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-104E-R10	10.4″ 350 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-104EL-R10	10.4″ 350 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-121E-R10	12.1″ 500 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-121EL-R10	12.1″ 500 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-121EL-HL-R10	12.1″ 1000 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-121E-HL-R10	12.1″ 1000 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-150E-R10	15.0″ 350 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-150EL-R10	15.0″ 350 cd/m² 1024 x 768 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-170H-R10	17.0″ 350 cd/m² 1280×1024 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-170HL-R10	17.0″ 350 cd/m² 1280×1024 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-190H-R10	19.0″ 450 cd/m² 1280×1024 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-190HL-R10	19.0″ 450 cd/m² 1280×1024 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-UW123J-R10	12.3″ 850 cd/m² 1920 x 720 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-UW123JL-R10	12.3″ 850 cd/m² 1920 x 720 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-W121G-R10	12.1″ 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W121GL-R10	12.1″ 400 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-W121GL-HL-R10	12.1″ 1000 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-W121G-HL-R10	12.1″ 1000 cd/m² 1280 x 800 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W133K-R10	13.3″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W133KL-R10	13.3″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-W156K-R10	15.6″ 450 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W156KL-R10	15.6″ 450 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-W185K-R10	18.5″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W185KL-R10	18.5″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-W215K-R10	21.5” 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W215KL-R10	21.5″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
DM2-W238K-R10	23.8″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, with USB 3.0 HUB, USB PC touch screen, 9 ~36V DC input, Speaker, Camera, R10
DM2-W238KL-R10	23.8″ 350 cd/m² 1920 x 1080 monitor, VGA, HDMI, DisplayPort, USB PC touch screen, 9 ~36V DC input, Lite, R10
