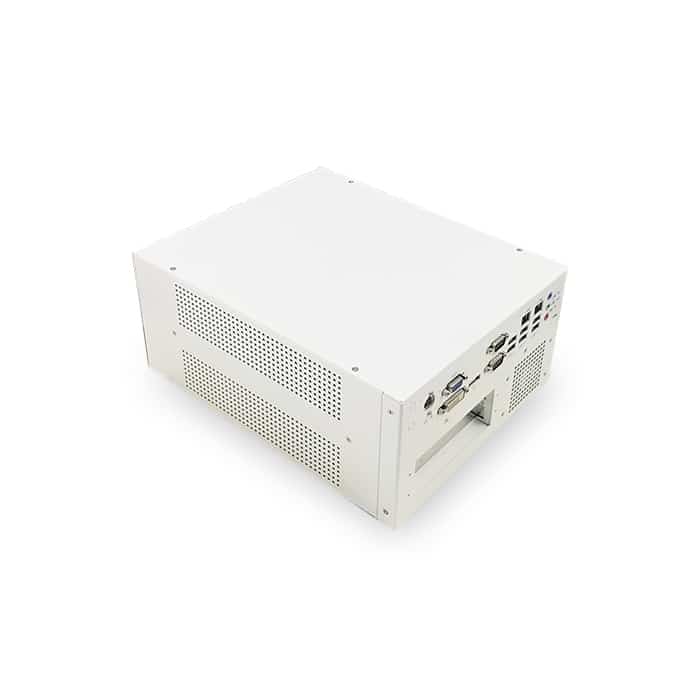

Wincomm WPC-767F Edge AI Fanned Medical PC

  • Product Name: Wincomm WPC-767F
  • System Type: Edge AI Fanned Medical PC
  • CPU: Powerful 8th/9th Gen. Intel Core i7/i5, 35W Max.
  • RAM: Supports Dual Channel DDR4 SODIMM up to 32GB
  • Expansion: 1 X PCIex16 (25W), 1 X PCIex4, 1 X Mini-PCIe
  • Other features: Medical Grade 4th UL/EN 60601-1 Certified, Smart Fan w/Hospital White Housing, Support RAID 0,1 w/Doorway 2nd Storage, HDD Anti-vibration mechanism, Rich I.O., Up to 6 X USB, 1 X VGA/DVI-D/DP, 2 LAN & 2 COM.

Description

WPC767F Banner 20211014

Features

  • Medical Grade 4th UL/EN 60601-1 Certified
  • Powerful 8th/9th Gen. Intel Core i7/i5, 35W Max.
  • Supports Dual Channel DDR4 SODIMM up to 32GB
  • 1 X PCIex16 (25W), 1 X PCIex4, 1 X Mini-PCIe
  • Smart Fan w/Hospital White Housing or  Fanless w/Hospital White Housing WPC-767
  • Support RAID 0,1 w/Doorway 2nd Storage
  • HDD Anti-vibration mechanism
  • Rich I.O., Up to 6 X USB, 1 X VGA/DVI-D/DP, 2 LAN & 2 COM

Specification

Model WPC-767F
Main System
CPU / Chipset Intel® 8th/9th Generation Intel® Core i7/i5/i3, Pentium and Celeron Processor /Intel® H310 Express Chipset
Graphic Intel® HD Graphics
RAM Two 2666/2400 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB
OS Support Windows 10 (2019-LTSC) (64bit)
Storage
1 x 2.5” SATA HDD w/Doorway, Swappable Drive Bay
1 x 2.5” SATA HDD
1 x  M.2 M.Key 2280 SSD
Expansion
1 x M.2 (Key E, 2230) for Wireless,  1 x mini-PCIe (Full Size)
1 x PCI-Ex16 (75W max), 1 x PCI-Ex4

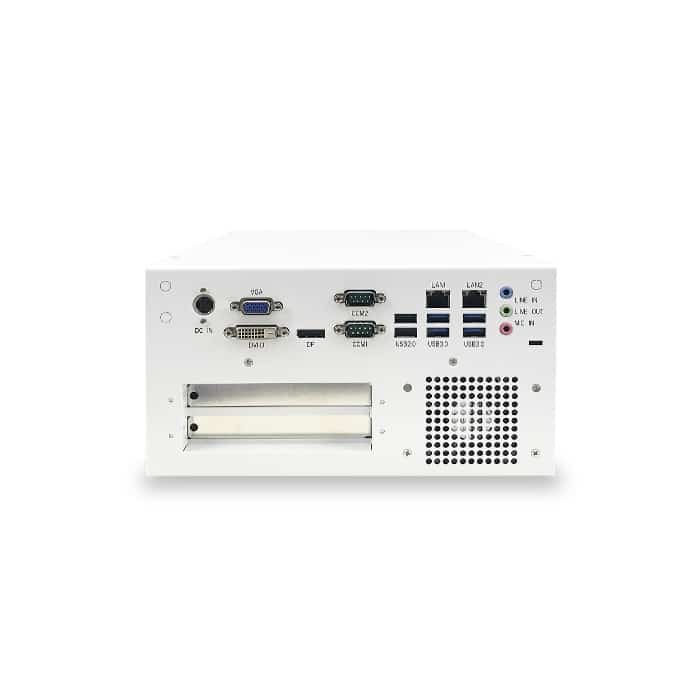

I.O. Ports
USB 4 x USB 3.0 ; 2 x USB 2.0
COM 2 x RS232/RS422/RS485 (RI/5V/12V)
LAN RJ-45 x 2 (LAN 1 : Intel® i219V ; LAN 2 : Intel® i211AT)
Audio 3.5mm phone jack  (Line in, Line out, Mic in)
Video Out 1 x DP1.2, 1 x DVI-D, 1 x VGA

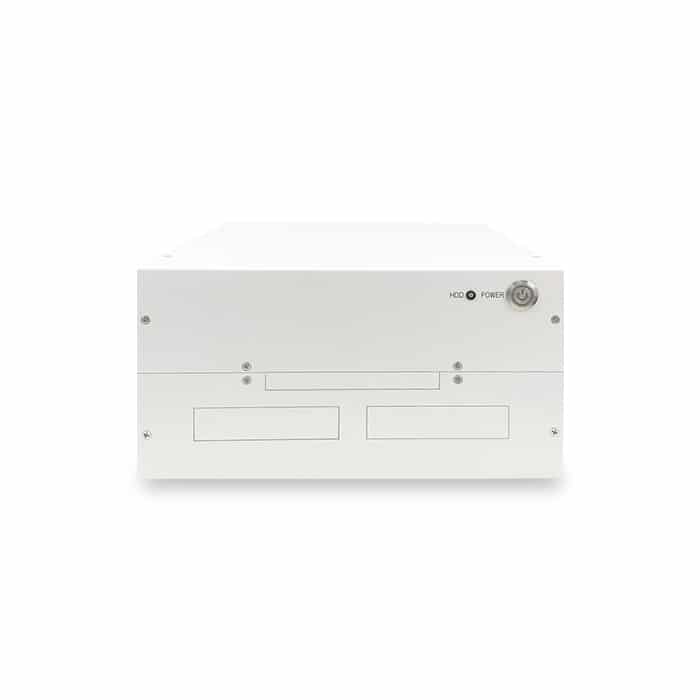

Control Hot Key (R to L) Power on/ off
Mechanical and Environmental
Cooling Smart Fan
Power Input / Consumption DC 12~48V input / TBD
Power Adapter AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 180W
Temperature Operating Temperature : 0~50℃ / Storage Temperature : -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
Housing Sliver Aluminum Heatsink and SECC w/ Hospital White Painting
Dimensions (Net) 301 (H) x 242.6 (V) x 130 (T)
Weights (Net)
4 kg
Certification
CE: EN 60601-1-2:2015(V4.0),
MDR (2017/745) (By Project)
VCCI: 2016-11, Class B (PSU/Battery with PSE)
FCC: Part 18 Class B, Canada, ICES-003
UL: ANSI/AAMI ES60601-1:2012 (V3.1) (By Project)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) (By Project)
ISO 14971 / IEC62133 (By Project)
