ASRock Industrial IMB-1231 14th/13th/12th Gen Mini-ITX Motherboard

• Asrock IMB-1231 12th Gen Alder Lake / 13th Gen Raptor Lake Mini-ITX Motherboard
• Intel® 13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with Q670 chipset
• 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
• 1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 5 x COM, 4 x SATA3
• 2 x Intel 2.5 Gigabit LAN
• Supports Quad display, 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, 1 x VGA
• TPM 2.0 onboard IC
• Supports Intel® vPro, AMT, VMD RAID 0/1/5/10
• ATX-PWR (24+4-pin) and +12V DC-In co-design

ADD TO QUOTE
Compare
SKU: IMB-1231 Categories: , , Tags: , , , , , , , , , , , , , , , ,

Description

ASRock Industrial 14th Gen Boards



Introducing the ASRock Industrial IMB-1231 Mini-ITX Motherboard, a powerhouse designed for unparalleled performance and versatility. Engineered to support Intel® 14th/13th/12th Gen Core™ Processors with the Q670 chipset, this motherboard delivers cutting-edge technology for a seamless computing experience.

Equipped with 2 x 260-pin SO-DIMM DDR4 slots running at 3200 MHz, the IMB-1231 can handle up to 64GB of memory (32GB per DIMM), ensuring swift multitasking and efficient data processing. The PCIe x16 (Gen4) slot, along with 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, and 4 x USB 2.0 ports, provides ample connectivity options for high-speed data transfer.

Featuring 2 x Intel 2.5 Gigabit LAN ports, the IMB-1231 ensures a reliable and fast network connection. With support for Quad display through 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, and 1 x VGA, this motherboard enables immersive visual experiences for various applications.

The inclusion of TPM 2.0 onboard IC enhances security measures, while support for Intel® vPro, AMT, and VMD RAID 0/1/5/10 ensures advanced management and storage capabilities. The ATX-PWR (24+4-pin) and +12V DC-In co-design further optimize power delivery for stability and efficiency.

Unlock the full potential of your system with the ASRock Industrial IMB-1231 Mini-ITX Motherboard—where performance meets innovation.

Key Features

  • Intel® 14th/13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors with Q670 chipset
  • 2 x 260-pin SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
  • 1 x PCIe x16 (Gen4), 4 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key B, 1 x M.2 Key E, 2 x M.2 Key M, 5 x COM, 4 x SATA3
  • 2 x Intel 2.5 Gigabit LAN
  • Supports Quad display, 1 x HDMI 2.0b, 2 x DP1.4a, 1 x LVDS or eDP, 1 x VGA
  • TPM 2.0 onboard IC
  • Supports Intel® vPro, AMT, VMD RAID 0/1/5/10
  • ATX-PWR (24+4-pin) and +12V DC-In co-design

Specification

Form Factor
Dimensions Mini-ITX (6.7-in x 6.7-in x 1.5-in)
Processor System
CPU Intel® 14th/13th/12th Gen (Raptor Lake-S/Alder Lake-S) Core™ Processors, up to 65W
Chipset Intel® Q670
Socket LGA1700
BIOS AMI SPI 256 Mbit
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32 GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel® Iris® Xe Graphics
DisplayPort DisplayPort 1.4a, DP++
Max resolution up to 4096×2160@60Hz
HDMI HDMI 2.0b
Max resolution up to 4096×2160@60Hz
eDP Max resolution up to 1920 x 1200@60Hz
LVDS Dual channel 24 bit up to 1920×1200@60Hz
VGA Max resolution up to 1920 x 1200@60Hz
MultiDisplay Quad Display
Expansion Slot
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1/USB 3.2 Gen1/USB 2.0 and SIM for 4G
PCIe 1 x PCIe x16 (Gen4, Support riser card x8/x8)
SIM Socket 1 x Socket connected to M.2 Key B
Audio
Interface Realtek ALC897, High Definition Audio. Line-out,Mic-in
Ethernet
Controller/ Speed LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, support AMT/vPro
LAN2: Intel® I225LM with 10/100/1000/2500 Mbps
Connector 2 x RJ-45

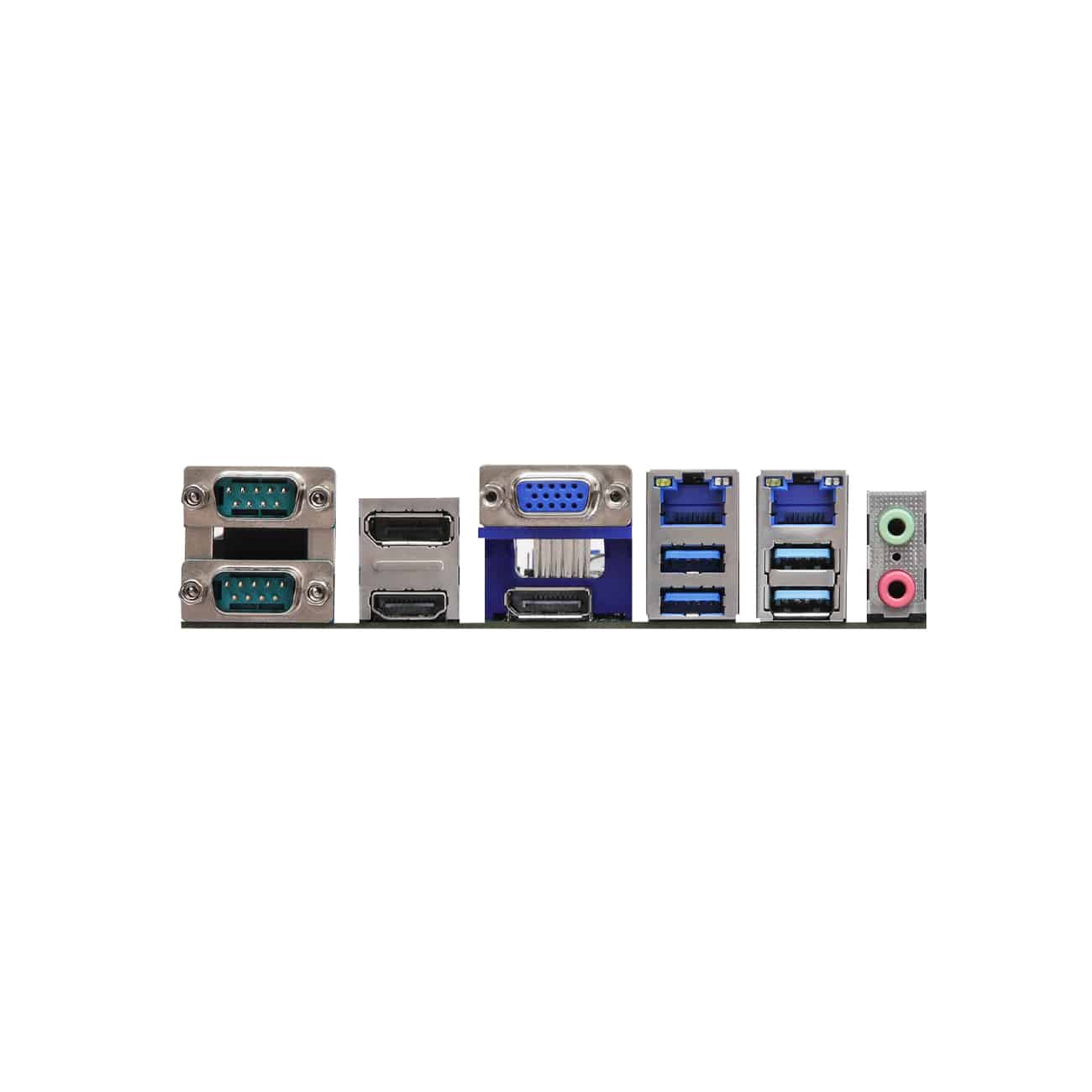

Rear I/O
HDMI 1 x HDMI 2.0b
DisplayPort 2 x DP 1.4a++
VGA 1
Ethernet 2 x 2.5 Gigabite LAN
USB 4 x USB 3.2 (Gen2)
Audio 2 (Mic-in, Line-out)
COM 2 x COM(RS-232/422/485)
Internal Connector
USB 2 x USB 3.2 Gen1 (1 x USB 3.2 header)
4 x USB 2.0 (2 x 2.54 pitch header)
COM 3 x COM(RS-232)
GPIO 4 x GPI, 4 x GPO
TPM TPM 2.0 onboard IC
LVDS 1
eDP 1
SATA PWR Output 1
Speaker Header 1
Storage
M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x4 for SSD
1 x M.2 (Key M, 2242) only use with M2X4-SATA-4P module to support extra 4 SATA ports
SATA 4 x SATA3 (6Gb/s)
RAID Intel® SATA RAID 0/1/5/10
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, …255sec
Power Requirements
Input PWR ATX PWR (24+4-pin) and +12V DC-In co-design
Power On AT/ATX Supported
– AT : Directly PWR on as power input ready
– ATX : Press button to PWR on after power input ready
Environment
Operating Temp 0ºC ~ 60ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
