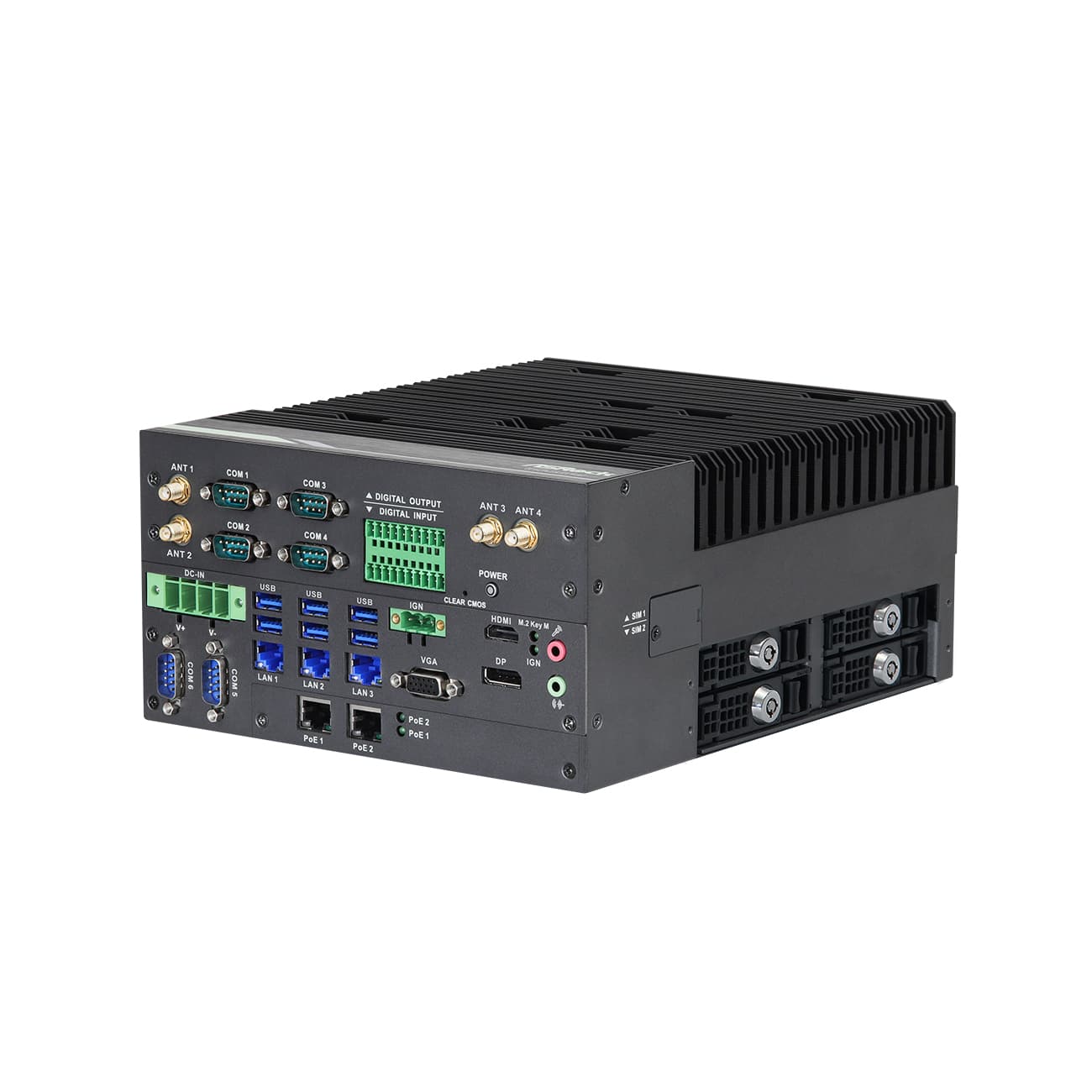

ASRock Industrial iEP-9040E 15th Gen R680E Compact AIoT PC

  • Product Name: ASRock Industrial iEP-9040E
  • System Type: AIoT PC
  • CPU: Intel 15th Gen Core Processors with R680E Chipset
  • RAM: 2 x 262-pin DDR5 SO-DIMM up to 96GB (48GB per DIMM)
  • Expansion: 2 x M.2 Key M, 2 x M.2 Key B, 1 x M.2 Key E
  • Other features: 6 x USB 3.2 Gen2x1, 6 x COM, 4 x SATA3, 8 x DI, 8 x DO; 5 x Intel 2.5G LAN (2 support PoE, 1 supports vPro); 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
ADD TO QUOTE
SKU: iEP-9040E Categories: , , Tags: , , , , , , , , , , , , , , Brand:

Description

iEP(F) 9040S Series 1200x600

Introducing the ASRock Industrial iEP-9040E Compact and Rugged Edge AIoT Platform (Expendable AIoT PC here) engineered to meet the demanding needs of modern industries. Powered by Intel’s latest 15 Gen Core Processors along with Intel R680E Chipset and DDR5 RAM, this platform offers unmatched performance and reliability.

Key Features

  • Intel 15th Gen Core Bartlett Lake Processors with R680E Chipset
  • 2 x 262-pin DDR5 SO-DIMM up to 96GB (48GB per DIMM)
  • 2 x M.2 Key M, 2 x M.2 Key B, 1 x M.2 Key E
  • 6 x USB 3.2 Gen2x1, 6 x COM, Up to 4 x SATA3 (Default 1 piece), 8 x DI, 8 x DO
  • 5 x Intel 2.5G LAN (2 support PoE, LAN 1 supports vPro)
  • 1 x Displayport, 1 x HDMI 2.0b, 1 x VGA
  • Support Wireless Time-Sensitive Networking (WTSN)

Specification

Processor System
ASRock Industrial iEP-9040E 15th Gen Bartlett Lake R680E Compact AIoT PC
CPU Intel® 15th Gen Core™ Processors
Chipset
Socket LGA 1700
Memory
Technology Dual Channel DDR5 5600MHz
(ECC memory supported by R680E + Selected CPU)
Capacity 96 GB (48 GB per DIMM)
Socket 2 x 262-pin SO-DIMM
Graphics
Controller Intel® UHD Graphics
DisplayPort DisplayPort 1.4a , DP++
Max resolution up to 4096×2160@60Hz
HDMI HDMI 2.0b
Max resolution up to 4096×2160@60Hz
VGA Max resolution up to 1920×1200@60Hz
Expansion Slot
RF& Antenna 8 x SMA connector hole reserved
M.2 1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1
and USB2.0 for Wi-Fi/BT module
1 x M.2 (Key B1, 2280/3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
1 x M.2 (Key B2, 3042/3052)
with PCIe Gen3 x1 / USB3.2 Gen1x1 and USB2.0 for 4G / 5G
SIM Socket 2 x Nano SIM Card slot
(2 connected to M.2 Key B)
Audio
Interface Realtek ALC897, High Definition Audio.
Ethernet
Controller/ Speed 3 x Intel® i226IT (1 vPro Support)
2 x Intel® i226IT (PoE Support, each port supports IEEE 802.3AT PoE,
PoE output max.30W/single port or 30W/two ports shared)
Connector 5 x RJ45
Rear I/O
DisplayPort 1
HDMI 1
VGA 1
Ethernet 5 x Intel 2.5G LAN
USB 6 x USB 3.2 Gen2x1, 1 x USB2.0 internal connector w/ lock function
Audio 1 x Mic-in, 1 x Line-out
COM 4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation
Protection, COM5- Isolation Protection, COM6)
2 x RS232 (COM3, COM4)
DIO 8DIs/8DOs
Storage
M.2 1 x M.2 (Key M1, 2242/2260/2280) with Gen4 x4 for NVMe SSD
1 x M.2 (Key M2, 2242/2280/22110/25110) with Gen3 x4 for NVMe SSD
SATA 4 x SATA3 (6Gb/s), support RAID 0/1/5/10
4 x 2.5″ HDD/SSD Tray
CFast 1 x Type II socket (Shared with SATA3)
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, …255sec
Power Requirements
Input PWR 9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition
Environment
Operating Temp 35W CPU: -40°C~70°C ( -40°F~158°F)
46W~65W CPU: -40°C~50°C ( -40°F~122°F)
(w/ air flow 0.5~0.8 m/s)
Storage Temp -40°C~85°C ( -40°F~185°F)
Humidity ~95% @ 40°C (non-condensing)
Shock Operating: 50G, half sine 11ms duration with SSD
Vibration Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
ESD Contact +/-4kV, Air +/-8kV
EMC EN61000-6-4/-2, CE & FCC Class A
Safety LVD
Mechanical
Construction Aluminium heatsink + Metal chassis
Mounting Desk Mount
Dimensions 201.7mm (W) x 244.8mm (D) x 109.5mm (H) (7.94″ x 9.64″ x 4.31″)
Net Weight 6.5kg
Others
OS Support Windows 10 & Linux
TPM TPM 2.0
Real-Time Enablement TSN, TCC support under YOCTO

BVM Customisation Service
