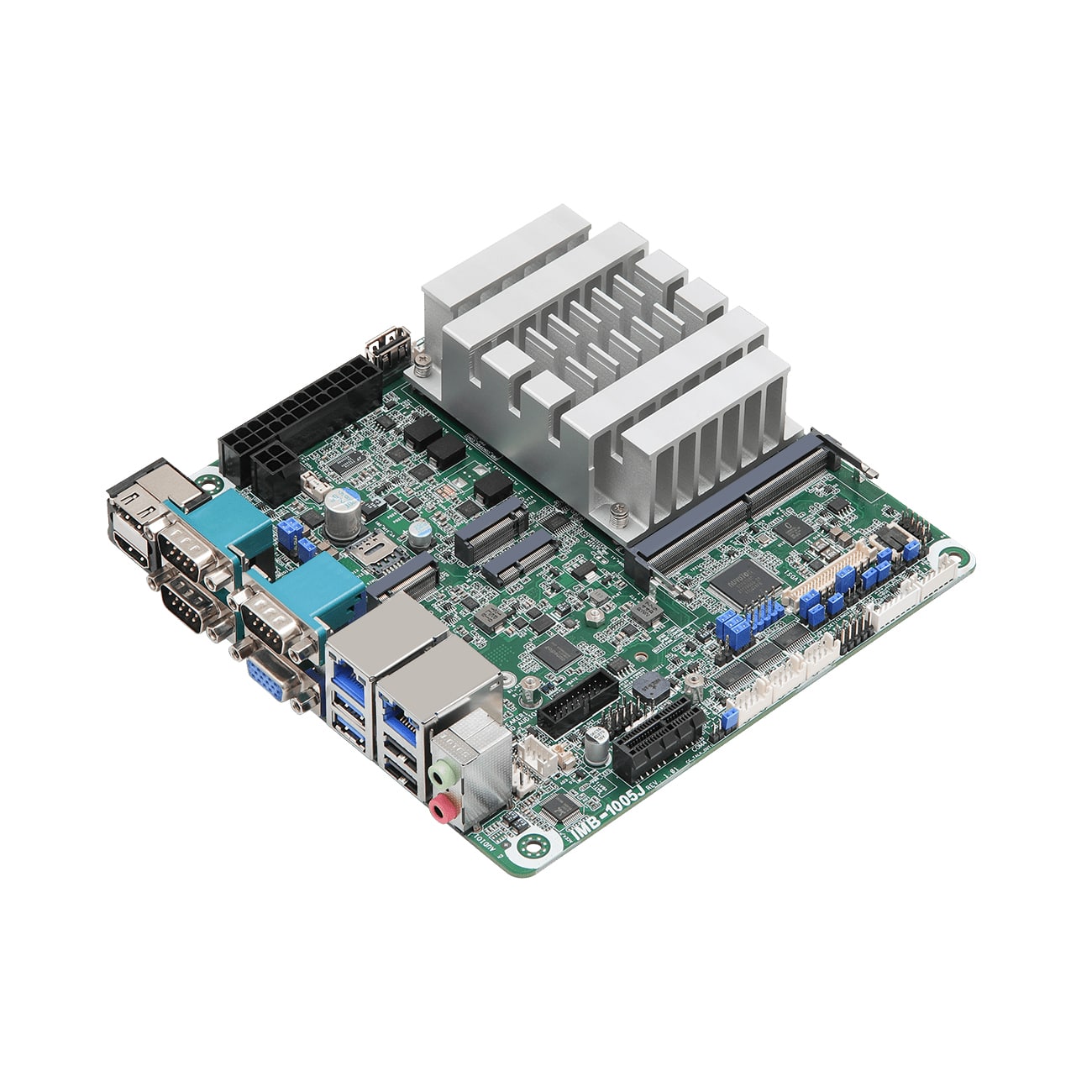

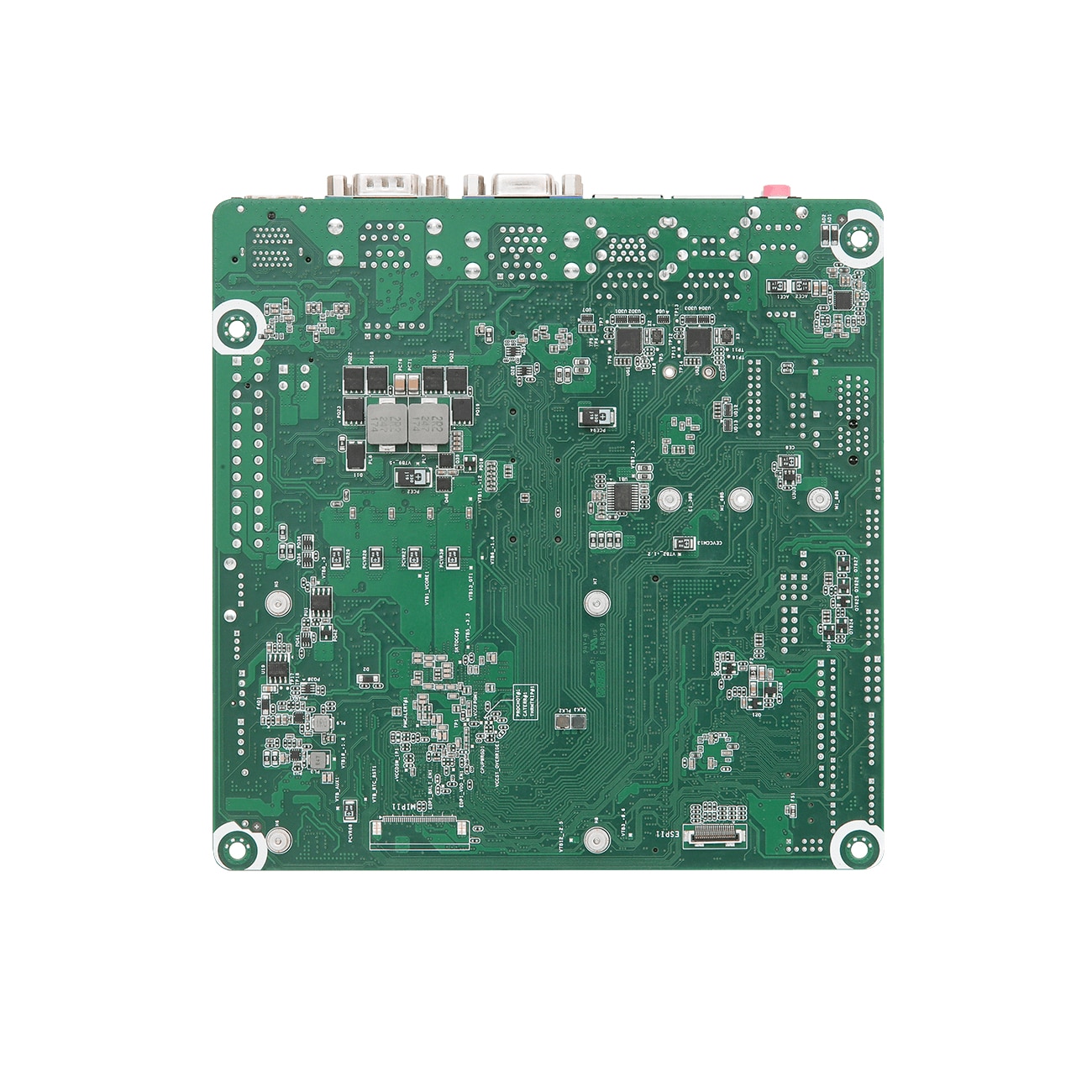

ASRock Industrial IMB-1005J Alder Lake N97 Mini-ITX Motherboard
- Product Name: Asrock Industrial IMB-1005J
- Motherboard Form Factor: Mini-ITX
- CPU: Intel Alder Lake-N SoC Processors N97
- RAM: 1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 16GB
- Expansion: 1 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 6 x COM, 1 x SATA3
- Other features: 2 x Realtek 2.5 Gigabit LAN, Support Triple display, 2 x HDMI2.0b, 1 x VGA, 1 x LVDS or eDP, TPM Header, ATX-PWR (24+4-pin) and 12~28V DC-In co-design
Description
The Asrock Industrial IMB-1005J stands as a testament to superior engineering. Designed with precision and finesse, this motherboard offers unparalleled reliability and unwavering performance. Equipped with advanced components and optimized circuitry, it effortlessly handles intensive workloads, making it an ideal choice for industrial environments that demand consistent and robust operation. Additionally, its compact form factor allows for seamless integration into space-constrained setups, without compromising on functionality or expandability.
Key Features
- Intel® Alder Lake-N SoC Processors N97
- 1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 16GB
- 1 x PCIe x1 (Gen3), 4 x USB 3.2 Gen1, 5 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key B, 1 x M.2 Key M, 6 x COM, 1 x SATA3
- 2 x Realtek 2.5 Gigabit LAN
- Support Triple display, 2 x HDMI2.0b, 1 x VGA, 1 x LVDS or eDP
- TPM Header
- ATX-PWR (24+4-pin) and 12~28V DC-In co-design
Specification
| Form Factor | |
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.6-in, 17.0 cm x 17.0 cm x 4.1 cm) |
| Processor System | |
| CPU | Intel® Alder Lake-N SoC Processors |
| IMB-1005J (N97, QC, Max Speed Up to 3.6GHz, 12W) | |
| *For other CPU SKUs request, please contact regional Sales for availability | |
| Chipset | SoC |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Single Channel DDR4 3200 MHz |
| Capacity | 16GB |
| Socket | 1 x 260-pin SO-DIMM |
| Graphics | |
| Controller | Intel® UHD Graphics |
| HDMI | HDMI 2.0b |
| Max resolution up to 4096 x 2160@60Hz | |
| VGA | Max resolution up to 1920 x 1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| (Connector shared with eDP) | |
| eDP | Max resolution up to 1920 x 1080@60Hz |
| (Connector shared with LVDS) | |
| MultiDisplay | Triple display |
| Expansion Slot | |
| PCIe | 1 x PCIe x1 (Gen3) |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless |
| 1 x M.2 (Key B, 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G | |
| SIM Socket | 1x SIM socket connected to M.2 key B |
| Audio | |
| Interface | Realtek ALC662/ALC897 HD, High Definition Audio. Mic-in, Line-out |
| Ethernet | |
| Controller/ Speed | LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps |
| LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps | |
| Connector | 2 x RJ-45 |

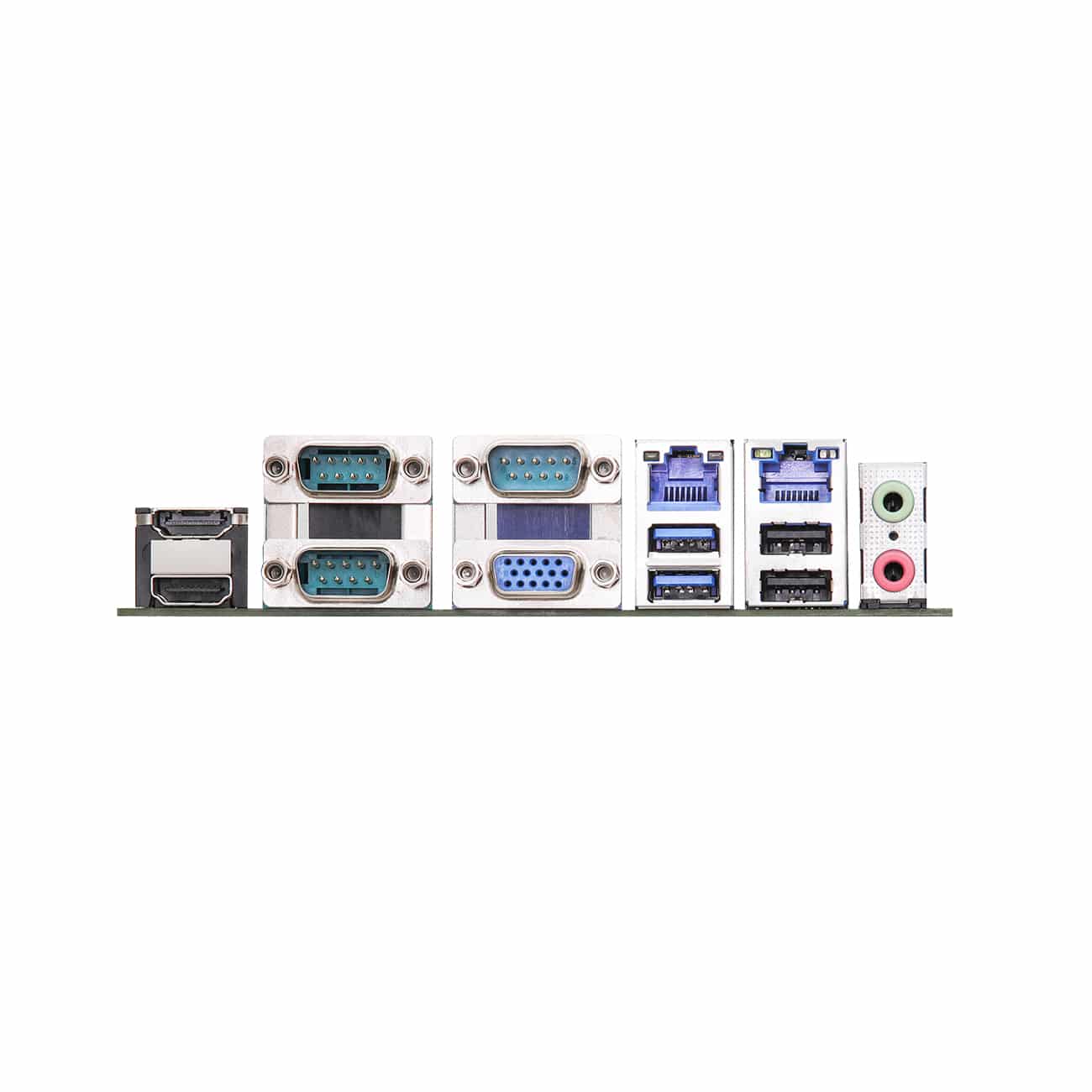

| Rear I/O | |
| HDMI | 2 x HDMI2.0b |
| VGA | 1 |
| Ethernet | 2 x 2.5 Gigabit LAN |
| USB | 2 x USB 3.2 Gen1 |
| 2 x USB 2.0 | |
| Audio | 2 (Mic-In, Line-Out) |
| COM | COM1, COM2, COM3 (RS-232/422/485) |
| Internal Connector | |
| USB | 2 x USB 3.2 Gen1 (1 x USB 3.2 header) |
| 3 x USB 2.0 (1 x 2.54 pitch header, 1 x USB 2.0 Type-A vertical con) | |
| COM | COM4 (RS-232) |
| COM5 (RS-232 or TTL (optional)) | |
| COM6 (RS-232 or ccTalk (optional)) | |
| GPIO | 4 x GPI, 4 x GPO |
| TPM | TPM Header |
| LVDS | 1 (Connector with LVDS/eDP signal, switch by BIOS) |
| SATA PWR Output | 1 |
| Speaker Header | 1 |
| MIPI Camera Header | 1 (optional) |
| Storage | |
| M.2 | 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1 or SATA3 for SSD |
| SATA | 1 x SATA3 (6Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments, 0, 1, 2, …255sec |
| Power Requirements | |
| Input PWR | ATX-PWR (24+4-pin) and 12~28V DC-In co-design |
| Power On | AT/ATX Supported |
| – AT : Directly PWR on as power input ready | |
| – ATX : Press button to PWR on after power input ready | |
| Environment | |
| Operating Temp | -20ºC ~ 70ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
BVM Customisation Service
If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.
If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements. Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.
Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.
Design | Develop | Test | Manufacture
With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality
Here’s a selection of our design, manufacturing & associated services: –
|
|
|
ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:
 Testing |
 Materials Management |
 Logistics and Tracking |
 External Manufacturing |
| • Burn in Test • Temp / Thermal Testing • Environmental Testing • Safety Testing • Software Compatibility Test |
• Vendor Selection and Component Procurement • Product Traceability • Obsolescence, End of Life and Last Time Procurement Management • Simple to use on-line RMA System |
• Traceability of Shipments • Product Labelling • OEM/Branded Packaging • System Branding • Custom Labels |
• Surface Mount: – High Speed Placement • Conventional Through Hole Insertion & Assembly • Automated Optical Inspection • Bespoke PCB Test |
Click here to find out more.
Manufacturer : Asrock
Motherboard
- Form Factor : Mini-ITX
CPU
- Powered By : Intel
- CPU Family : iCore
- CPU Generation : Alder Lake
- CPU Model : N97
Memory
- Memory Installed :
- Memory Slots : 1
- Memory Type : 3200Mhz DDR4
I/O and Expansion
- Expansion Slots : M.2, PCIe, SATA
- LAN Ports : 2
- Serial Ports : 6
- USB 2 Ports : 5
- USB 3 Ports :
- USB 3.X / USB C / USB 4.0 Ports : 4
- Video Output : HDMI, LVDS, VGA
- Multi Display : Triple Display
Operating System
- OS : Windows
Certifications
- Certifications :
Features
- 5G-4G-GPS :
- Artificial Intelligence Use : Artificial Intelligence, Edge Computing, Machine Learning, Machine Vision
- IP Rating :
- Rugged : Yes
- System Type : SBC
- Wide Temp : Yes
Categories : Intel Alder Lake Mini-ITX, Mini-ITX Single Board Computers
