IEI Mustang-200 – i5 Computing Accelerator Card – Mustang-200-i5-1T/32G-R10

Compare

• IEI – Mustang-200-i5-1T/32G-R10 – Mustang-200 Dual i5 Computing Accelerator Card

• Computing Accelerator Card supports Two Intel Core i5-7267U with Intel 600P 1TB (512GB x2) SSD, 32GB (8GB x4) DDR4, PCIe x4 interface, QTS-Lite, and RoHS

ADD TO QUOTE
SKU: Mustang-200-i5-1T/32G-R10 Categories: , Tags: , , , , , , , , , , , ,

Description

Overview

  • Dual 10Gbps network based x86 computing accelerator
  • Decentralized computing architecture for independent tasks
  • PCI Express x4 delivers scalable and flexible solution
  • Two Intel Core i7-7567U/i5-7267/Celeron 3865U processors, up to 4.00 GHz
  • Supports high-end graphics engine – Intel Iris Plus Graphics 650
  • Pre-installed 32 GB DDR4 (max. 64 GB) and 1 TB NVMe (max. 2 TB)

Features

MUSTANG-200 BANNER

The Mustang-200 is an affordable and scalable advanced computing accelerator for speeding up computations, calculations and applications. Equipped with 2 Intel Core i5/i7 processors, 32GB (4 x 8GB) RAM, and 1TB (2 x 512GB) Intel NVMe SSDs, this PCIe card can be used with your existing system, enabling high-performance computing without costing a fortune. You can install multiple Mustang-200 to further boost your computing capabilities, and assign tasks to any of these units as needed.

Mustang-200 Functions

Mustang-200 Cloud Platforms Mustang-200 Video

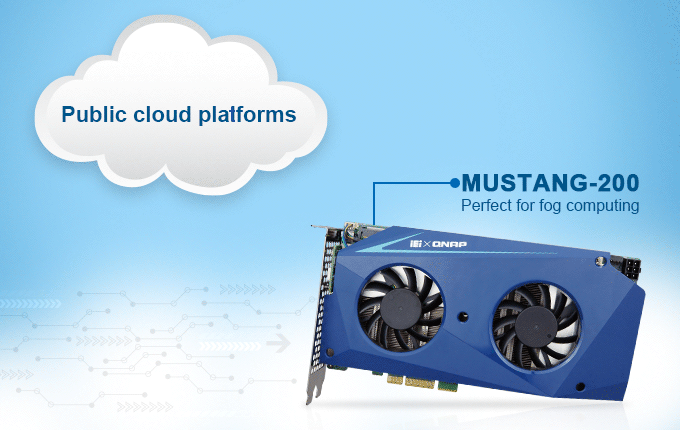

Perfect for fog computing

You can pre-process data generated within your organization or across your devices on-premise, to filter out irrelevant information and only keep valuable insights, and then further utilize them by sending or uploading to cloud platforms.

 Video processing and graphics rendering made easy

The powerful processors of the Mustang-200 can easily process high-definition 360° surround videos, and can help creative professionals streamline their workflows and accelerate their processes.

Product Features

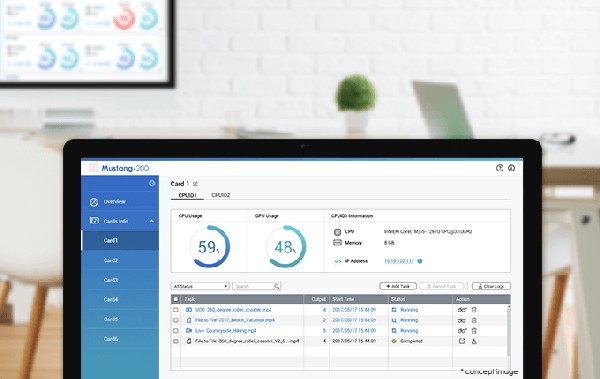

Every additional CPU works independently

You can assign tasks to any nodes of your choice, and have real-time control over how every node works.

Mustang-200 Distrubuted Task

Expand your total computing capabilities

The Mustang-200 can be immediately installed into your existing system. If you need to perform additional calculations, you can add additional Mustang-200 boards as they work independently from each other.

Mustang-200 Scalable Application

Do more in performance-critical applications

No matter what kind of software used, it can be hosted inside the Mustang-200, allowing you to achieve more applications such as artificial intelligence, academic research, and simulation.

Mustang-200 do more in performance crtical applications

Prototype Demonstration

Specifications

Spec Item Description
System
CPU Two (2) Intel Kabylake ULT CPU
Intel Core i7-7567U (28 W) (4M Cache, up to 4.00 GHz)
Intel Core i5-7267U (28 W) (4M Cache, up to 3.50 GHz)
Intel Celeron 3865U (15W) (2M Cache, 1.80 GHz)
Memory Max. (2 SO-DIMMs per CPU)
4 x DDR4 8GB SO-DIMM (Core i7/i5 SKU)
4 x DDR4 2GB SO-DIMM (Celeron 3865U SKU)
Storage 2 x Intel SSD 600P series (Core i7/i5 SKU only)
(512GB M.2 80mm PCIe 3.0 x4, 3D1, TLC)
Power
Input 12V PCIe 6-pin power input
Power consumption 12V@7.41A (Intel Core i7-7567U SKU)
Environment
Operating Temperature 0°C ~ 40°C
Humidity 10% ~ 90%
Dimensions
Dimensions 40mm x 210mm x 111mm
Weight
Weight GW: 1200g / NW: 700g
I/O Interface
I/O Interface 4 x Internal USB 2.0(pin header)

Ordering Information

Item No. Description
Mustang-200-i7-1T/32G-R10 Computing Accelerator Card supports Two Intel Core i7-7567U with Intel 600P 1TB (512GB x2) SSD, 32GB (8GB x4) DDR4, PCIe x4 interface, QTS-Lite, and RoHS
Mustang-200-i5-1T/32G-R10 Computing Accelerator Card supports Two Intel Core i5-7267U with Intel 600P 1TB (512GB x2) SSD, 32GB (8GB x4) DDR4, PCIe x4 interface, QTS-Lite, and RoHS
Mustang-200-C-8G-R10 Computing Accelerator Card supports Two Intel Celeron 3865U with , 8GB (2GB x4) DDR4, PCIe x4 interface, QTS-Lite, and RoHS

Datasheet

Download

If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can design a new product from start to finish.



Design | Develop | Test | Manufacture

Here’s a selection of our design, manufacturing

& associated services: –



Design to Order: OEM/ODM Embedded Product Design Services

For customers designing a brand-new product from scratch or working with an existing prototype.DesignToOrder

  • FREE Pre-design / Pre-sales advise
  • Prototyping – Custom PC Design, Custom Panel PC, Custom Racks or Custom Peli Case PC
  • Prototyping pre checks (chargeable one-time fee for existing prototype)
    • Hardware compatibility
    • Thermal testing
    • Software compatibility
  • Custom PCB / Board Design
  • Custom Chassis Design
  • Custom Cables
  • Custom Back Panels and Faceplates
  • Custom Cooling
  • Custom Metal Work (internal brackets, mounting brackets)
  • Touchscreen Integration and Display Enhancements
  • Software – Custom OS Image

Build to Order: Embedded System Integration and Customisation Services​

Take an existing system and we can:BuildToOrder

  • Custom specification (CPU, Ram, I/O, Storage)
  • Chassis customisation and branding
  • Custom BIOS
  • Software – Custom OS Image
  • Custom Packaging and branding
  • Integrating newly designed or existing hardware into a larger system

Build to order Racks and Towers, Peli Case PCs and Mini-ITX PCs

Windows IoT and Windows 10 Embedded: Integration and Embedded Software Services

Porting, Integration & DeploymentEmbeddedSoftware

  • Windows image capture from customers HDD
  • Linux image capture from customers HDD
  • Windows / Linux Deployment from customers image
  • Custom Windows images, create and deploy
  • Update management
  • Custom Linux and Android images?
  • Custom BIOS

Manufacturer : IEI



Card Type

  • Card Interface Type : PCIe
  • Card Function : Computing Accelerator
  • Card Capture Resolution :
  • Card Capture FPS :

CPU

  • Powered By : Intel
  • CPU Model : i5-7267U
  • CPU Speed : 3.0Ghz
  • CPU Cores : Dual Core

Memory

  • Memory Installed : 32Gb
  • Memory Slots :
  • Memory Type : DDR4

I/O and Expansion

  • Expansion Slots : M.2
  • LAN Ports :
  • Serial Ports :
  • USB 2 Ports : 4
  • USB 3 Ports :
  • USB 3.1 Ports :
  • Video Output : Micro HDMI
  • Multi Display : Dual Display
  • Wireless Connectivity :

Operating System

  • OS : Linux, Windows

Certifications

  • Certifications :

Industry

  • Industry : Industrial Automation and Control, Medical, Military, Transport - Road, Transport and Smart City
