Jetway 15″ – 27″ Aluminium Die-Cast Rugged Industrial Panel PC Series

• Jetway 15″ – 27″ Aluminium Die-Cast Rugged Industrial Touch Panel PC
• Intel Tiger Lake i5-1135G7 2.4GHz/QC or Celeron 6305E 1.8GHz/DC processor
• 15 – 27″ with 250 – 350 nits TFT LCD with LED backlight
• • 27″ LG in-cell 10-points Multi Capacitive Touch
• A true Flat and Slim Design, Clear Image, support Cover-Glass Elimination
• Support for easy HDD and DARM installation
• Support Cable less design
• 12-36V DC-input Support, with Electrical Over Stress (EOS), OVP design

Clear
Compare

Description

Introducing the Jetway HPC Series of 15″ – 27″ Aluminium Die-Cast Rugged Industrial Touch Panel PC Series, designed for robust performance in industrial environments. Featuring a range from 15 to 27 inches, with vibrant TFT LCD displays ranging from 250 to 350 nits brightness, each panel boasts LED backlighting for clear visuals even in challenging conditions. The 27″ variant comes with an LG in-cell 10-points Multi Capacitive Touch screen, offering seamless interaction.

Powered by Intel Tiger Lake i5-1135G7 2.4GHz/QC or Celeron 6305E 1.8GHz/DC processors, these PCs deliver reliable performance for industrial applications. Their true Flat and Slim Design not only enhances aesthetics but also facilitates easy installation and maintenance, supporting Cover-Glass Elimination for improved durability.

With support for hassle-free HDD and DARM installation, as well as a Cable-less design, setup is streamlined for efficiency. Plus, with 12-36V DC-input Support and Electrical Over Stress (EOS), OVP design, these PCs are engineered for resilience and reliability in demanding environments. Elevate your industrial operations with the Jetway Industrial Touch Panel PC Series.

Key Features

  • 15 – 27″ with 250 – 350 nits TFT LCD with LED backlight
    • 27″ LG in-cell 10-points Multi Capacitive Touch
  • Intel Tiger Lake i5-1135G7 2.4GHz/QC or Celeron 6305E 1.8GHz/DC processor
  • A true Flat and Slim Design, Clear Image, support Cover-Glass Elimination
  • Support for easy HDD and DARM installation
  • Support Cable less design
  • 12-36V DC-input Support, with Electrical Over Stress (EOS), OVP design

Ordering Information

15inch Tiger Lake Panel PC – Aluminium Die-Cast

Model HPC150C-DCP1135G7 HPC150C-DCP6305E HPC156C-DCP1135G7
Display Size 1024×768, 350nits 1024×768, 350nits 1920×1080, 250nits
Touch PCT PCT PCT
CPU Generation Tiger Lake Tiger Lake Tiger Lake
CPU/Chipset 1135G7 6305E 1135G7
CPU Core/Frequency 4C/2.4GHz 2C/1.8GHz 4C/2.4GHz
DRAM/MAX 2*DDR4-3200 2*DDR4-3200 2*DDR4-3200
Storage 1M2M/2.5 DRIVE 1M2M/2.5 DRIVE 1M2M/2.5 DRIVE
IO Port 6U/4C/1H/2L 6U/4C/1H/2L 6U/4C/1H/2L
Power DC 12~36V DC 12~36V DC 12~36V
Temp -10~50°C -10~50°C -10~50°C
Open Frame Yes Yes Yes
IP Grade Front IP65 Front IP65 Front IP65

17inch Tiger Lake Panel PC – Aluminium Die-Cast

Model HPC170C-DCP1135G7 HPC170C-DCP6305E
Display Size 1280×1024, 350nits 1280×1024, 350nits
Touch PCT PCT
CPU Generation Tiger Lake Tiger Lake
CPU/Chipset 1135G7 6305E
CPU Core/Frequency 4C/2.4GHz 2C/1.8GHz
DRAM/MAX 2*DDR4-3200 2*DDR4-3200
Storage 1M2M/2.5 DRIVE 1M2M/2.5 DRIVE
IO Port 6U/4C/1H/2L 6U/4C/1H/2L
Power DC 12~36V DC 12~36V
Temp -10~50°C -10~50°C
Open Frame Yes Yes
IP Grade Front IP65 Front IP65

21inch Tiger Lake Panel PC – Aluminium Die-Cast

Model HPC215C-DCP1135G7
Display Size 1920×1080, 250nits
Touch PCT
CPU Generation Tiger Lake
CPU/Chipset 1135G7
CPU Core/Frequency 4C/2.4GHz
DRAM/MAX 2*DDR4-3200
Storage 1M2M/2.5 DRIVE
IO Port 6U/4C/1H/2L
Power DC 12~36V
Temp -10~50°C
Open Frame Yes
IP Grade Front IP65

27inch Tiger Lake Panel PC – Aluminium Die-Cast

Model HPC270C-DCP1135G7 HPC270C-DCP6305E
Display Size 1920×1080, 300nits 1920×1080, 300nits
Touch PCT PCT
CPU Generation Tiger Lake Tiger Lake
CPU/Chipset 1135G7 6305E
CPU Core/Frequency 4C/2.4GHz 2C/1.8GHz
DRAM/MAX 2*DDR4-3200 2*DDR4-3200
Storage 1M2M/2.5 DRIVE 1M2M/2.5 DRIVE
IO Port 6U/4C/1H/2L 6U/4C/1H/2L
Power DC 12~36V DC 12~36V
Temp -10~50°C -10~50°C
Open Frame NA NA
IP Grade NA NA

Specification

  HPC150C-DCP1135G7 HPC170C-DCP1135G7 HPC215C-DCP1135G7 HPC270C-DCP1135G7
  HPC150C DCP 45D HPC170C DCP series 45D HPC215C DCP1135G7 45D HPC270C DCP 45D
Display – IP65, NEMA 4 rugged protection, metal front bezel
– 15.0″ With LED Backlight
– 350 nits
– 16.7m display colour
– 1024 x 768 @60Hz resolution
– 178°/178° viewing angle (H/V)
– 0.099 x 0.297mm pixel pitch
– 4:3 aspect ratio
– 1000:1 contrast ratio
– 35ms response time
– IP65, NEMA 4 rugged protection, metal front bezel
– 17.0″ With LED Backlight
– 350 nits
– 16.7m display colour
– 1280 x 1024 @60Hz resolution
– 170°/160° viewing angle (H/V)
– 0.264 x 0.264mm pixel pitch
– 4:3 aspect ratio
– 1000:1 contrast ratio
– 3.5ms response time
– IP65, NEMA 4 rugged protection, metal front bezel
– 21.5″ With LED Backlight
– 250 nits
– 16.7M display colour
– 1920 x 1080 @60Hz resolution
– 170°/160° viewing angle (H/V)
– 0.24825 x 0.24825mm pixel pitch
– 16:9 aspect ratio
– 1000:1 contrast ratio
– 8ms response time
– Rugged protection, metal front bezel
– 27.0″ With LED Backlight
– 300 nits
– 16.7m display colour
– 1920 x 1080 @60Hz resolution
– 178°/178° viewing angle (H/V)
– 0.1038 x 0.1038mm pixel pitch
– 16:9 aspect ratio
– 1000:1 contrast ratio
– 13ms response time
Touch Screen – Projected capacitive type
– 336.3 x 260.6mm ±0.3mm active range
– Transparency ≧85%
– Surface Hardness ≧6H (JIS-5400)
– Projected capacitive type
– 372.92 x 305.34mm ±0.3mm active range
– Transparency≧ 85%
– Surface Hardness ≧ 6H (JIS-5400)
– Projected capacitive type
– 386.81 x 237.12mm ±0.3mm active range
– Transparency≧ 85%
– Surface Hardness ≧ 6H (JIS-5400)
– Projected capacitive type (LG in-cell Touch)
– 597.888 x 336.312mm ±0.2mm active range
– Surface Hardness ≧3H (JIS-5400)
– Support High Touch Performance
– Support Strengthened Polarizer for in-TOUCH
– Support High Picture Quality
– Support Low Reflection / Deep Black
– Support No deterioration of PQ caused by TOUCH Film
– Support Low colour Shift
– Support Stable Touch without Flash
Case – Aluminium panel
– Iron case
– White colour
– Spray paint coating requirement
– Aluminium panel
– Iron case
– White colour
– Spray paint coating requirement
– Aluminium panel
– Iron case
– White colour
– Spray paint coating requirement
– Aluminium panel
– Iron case
– White colour
– Spray paint coating requirement
Main System – Intel® Tiger Lake i5-1135G7 2.4GHz/QC or Celeron 6305E 1.8GHz/DC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10 / Linux
– Intel® Tiger Lake i5-1135G7 2.4GHz/QC or Celeron 6305E 1.8GHz/DC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10 / Linux
 – Intel® Tiger Lake i5-1135G7 2.4GHz/QC or Celeron 6305E 1.8GHz/DC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10/11, Linux
Storage – 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)
– 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)
– 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)
– 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)
Expansion – 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)
– 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)
– 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)
– 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)
I/O Connector – 2* USB3.2 (Gen. 1)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button
– 2* USB3.2 (Gen. 2)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button
– 2* USB3.2 (Gen. 2)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button
– 2* USB3.2 (Gen. 1)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button
Power Input – AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with over current protection fuse
– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse
– Consumption: 47.5W
– 12~36V DC-in
– AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with over current protection fuse
– AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with over current protection fuse
Power Consumption – 45W – 45W – 45W – 48W
Dimensions – 382.3 x 288.6 x 63.1mm – 400.9 x 333.3 x 65.0mm – 535.80 * 327.31 * 68.50 mm – 611.20 x 359.18 x 59.00mm
Compliance – CE, FCC, IP65 (Front), Option – CE, FCC, IP65 (Front), Option – CE, FCC, IP65 (Front, option) – CE, FCC, Option
Safety – Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms
– Shock: 1ms duration
– Vibration: 5~500Hz/1 Grm
– Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms
– Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms
Temperature – Operating: : -10°C ~ 60°C
– Storage: -20°C ~ 70°C
– Operating Temperature: -10 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
– Operating: : -10°C ~ 60°C
– Storage: -20°C ~ 70°C
– Operating: : -10°C ~ 50°C
– Storage: -20°C ~ 70°C
Warranty – 2 Years Limited Warranty (Panel and Touch are only 1 Year Warranty) – 2 Years Limited Warranty (Panel and Touch are only 1 Year Warranty) – 2 Years Limited Warranty (Panel and Touch are only 1 Year Warranty) – 2 Years Limited Warranty (Panel and Touch are only 1 Year Warranty)

I/O Diagrams

HPC150C DCP

HPC150C DCP diagram

HPC170C DCP

HPC170C DCP series diagram

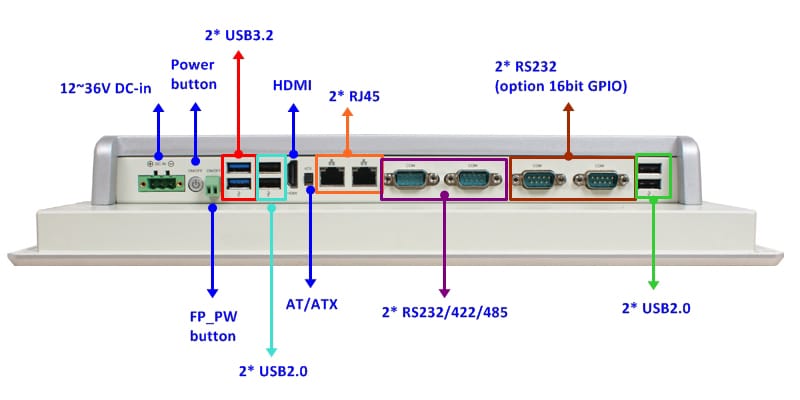

HPC210C DCP diagram

HPC210C DCP

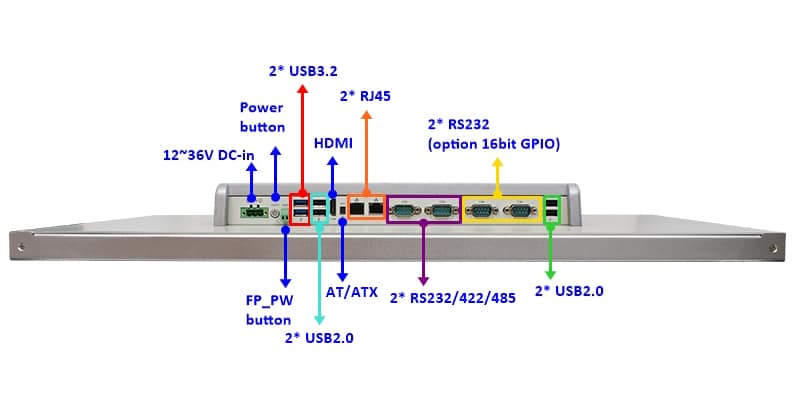

HPC270C DCP IO 1HPC270C DCP

HPC150C-DCP1135G7

Download

HPC170C-DCP1135G7

Download

HPC215C-DCP1135G7

Download

HPC270C-DCP1135G7

Download

BVM Customisation Service

If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.



If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements.

Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.

Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.



Design | Develop | Test | Manufacture

With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality



Here’s a selection of our design, manufacturing & associated services: –

Design to Order Banner

Design to Order: OEM/ODM Embedded Product Design Services

For customers designing a brand-new product from scratch or working with an existing prototype.

Build to Order Banner

Build to Order: Embedded Computer Design and Customisation Services​

Take an existing system and we can:

Build to Order: Racks and Towers, Peli Case PCs and Mini-ITX PCs

Embedded Software Banner

Embedded Software Services : Configuration, Integration and Deployment

Porting, Integration & Deployment



ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:

Testing

Testing

Lifecycle

Materials Management

Logistics

Logistics and Tracking

Manufacturing

External Manufacturing

• Burn in Test
• Temp / Thermal Testing
• Environmental Testing
• Safety Testing
• Software Compatibility Test
• Vendor Selection and Component Procurement
• Product Traceability
• Obsolescence, End of Life and Last Time Procurement Management
• Simple to use on-line RMA System
• Traceability of Shipments
• Product Labelling
• OEM/Branded Packaging
• System Branding
• Custom Labels
• Surface Mount: – High Speed Placement
• Conventional Through Hole Insertion & Assembly
• Automated Optical Inspection
• Bespoke PCB Test

Manufacturer : Jetway

Screen

  • Screen Size : 15", 17", 21.5", 27"
  • Screen Resolution : 1920x1080
  • Screen Brightness : 300 cd/m²

CPU

  • Powered By : Intel
  • CPU Family : Celeron, iCore
  • CPU Generation : Tiger Lake
  • CPU Model : 6305E, i5-1135G7
  • CPU Speed : 1.8Ghz, 2.4Ghz
  • CPU Cores : Dual Core, Quad Core

Memory

  • Memory Installed :
  • Memory Slots : 2
  • Memory Type : 3200Mhz DDR4

I/O and Expansion

  • Expansion Slots : M.2, SATA
  • LAN Ports : 2
  • Serial Ports : 4
  • USB 2 Ports : 4
  • USB 3 Ports :
  • USB 3.1 Ports : 2
  • Video Output : HDMI
  • Multi Display :
  • Wireless Connectivity :

Operating System

  • OS : Linux, Windows

Certifications

  • Certifications :

Industry

  • Industry : Harsh Environments, Industrial Automation and Control

Features

  • 24/7 Use :
  • 4G-GPS :
  • Artificial Intelligence Use :
  • ATEX :
  • Industrial :
  • In-Vehicle :
  • IoT :
  • IP Rating :
  • Low Powered :
  • Mini-ITX :
  • Multi Displays :
  • NUC :
  • Other Features : GPIO
  • PoE :
  • Rugged : Yes
  • Ryzen :
  • System Type : Panel PC
  • Whiskey Lake :
  • Wide Temp : Yes

Categories : , ,
