The Evolution of Storage: From IDE and SATA, to M.2, NVMe and More

Unravelling the Tech Time Capsule: A Look at Storage Devices Over The Last 30 Years

In the vast digital realm we inhabit today, data is the lifeblood that fuels our modern lifestyles. From critical business information to cherished memories captured in photos and videos, the need for efficient and reliable data storage has never been greater. Over the years, technological advancements have given birth to a myriad of storage solutions, each designed to cater to diverse needs and applications.

In this article, we embark on a journey through the diverse landscape of data storage technologies. From the early days of magnetic tapes and floppy disks to the cutting-edge era of solid-state drives and cloud-based storage, we will explore the evolution of various storage options that have shaped the way we store, manage, and access our invaluable data.

But storage is not just about the drives; it’s also about the vital link that connects them to our devices. As we traverse the world of storage technologies, we will also delve into the array of storage connectors that play a crucial role in ensuring seamless data transmission between devices and storage media. From classic SATA connectors to the lightning-fast NVMe and the latest emerging technologies, understanding the different types of connectors is essential for optimizing storage performance.

So, fasten your seatbelts as we embark on a journey that uncovers the history, advancements, and innovation surrounding storage solutions and connectors. Whether you’re a tech enthusiast, a professional seeking the best storage solutions for your needs, or simply curious about the ever-changing data storage landscape, this article promises to be an enlightening and informative guide to the diverse world of storage and its connectors.

From Floppy Disks to Cloud Storage: Tracing the Evolution of Data Storage

Here’s a list of different types of storage devices used over the last 30 years, along with their specifications, data transfer speeds, and approximate usage dates:

1. Floppy Disk:
   • Capacity: 1.44 MB (3.5-inch High-Density floppy disk)
   • Data Transfer Speed: 125 Kbps
   • Usage: Late 1980s to early 2000s
2. Hard Disk Drive (HDD):
   • Capacity: Varies (ranging from a few megabytes to several terabytes)
   • Data Transfer Speed: Varies (depending on technology and RPM)
   • Usage: Since the 1950s, but significant popularity from the late 1980s to present
3. Compact Disc (CD):
   • Capacity: 700 MB (Standard CD)
   • Data Transfer Speed: Up to 150 Kbps (1x speed)
   • Usage: Late 1980s to early 2000s (replaced by DVDs and digital media)
4. Digital Versatile Disc (DVD):
   • Capacity: 4.7 GB (Single-layer DVD)
   • Data Transfer Speed: Up to 11.08 Mbps (8x speed)
   • Usage: Late 1990s to present (still used for specific applications)
5. USB Flash Drive:
   • Capacity: Varies (common sizes range from a few gigabytes to hundreds of gigabytes)
   • Data Transfer Speed: Varies (depends on USB version and technology)
   • Usage: Early 2000s to present
6. Solid State Drive (SSD):
   • Capacity: Varies (ranging from a few gigabytes to several terabytes)
   • Data Transfer Speed: Varies (depends on technology, interface, and generation)
   • Usage: Early 2000s to present (gained significant popularity in the 2010s)
7. Blu-ray Disc:
   • Capacity: 25 GB (Single-layer BD)
   • Data Transfer Speed: Up to 36 Mbps (1x speed)
   • Usage: Early 2000s to present (popular for high-definition content)
8. Cloud Storage:
   • Capacity: Virtually unlimited (depends on the service and subscription)
   • Data Transfer Speed: Varies (dependent on internet connection)
   • Usage: Since the 2000s, cloud storage gained popularity in the 2010s.
9. NVMe SSD (Non-Volatile Memory Express):
   • Capacity: Varies (ranging from gigabytes to terabytes)
   • Data Transfer Speed: PCIe Gen 3: Up to 3.94 GB/s (per lane); PCIe Gen 4: Up to 7.88 GB/s (per lane)
   • Usage: Introduced in the 2010s and rapidly gaining popularity in modern systems.

This list highlights some of the most prominent storage devices used over the last three decades. Please note that data transfer speeds and capacities can vary depending on the specific model and technology within each category.

Beyond the Wires: The Evolution of Internal Storage Connectors

Here’s a list of different types of connectors commonly used on internal storage devices:

1. PATA/IDE Connector:
   • Description: PATA (Parallel ATA) or IDE connectors were used in older computers to connect HDDs and optical drives, but they are now mostly outdated and replaced by SATA connectors.
2. Serial Attached SCSI (SAS) Connector:
   • Description: SAS connectors are typically used for high-performance enterprise-grade storage devices like SAS HDDs and SAS SSDs.
   • Data Transfer Speed: SAS 3.0 (12 Gbps), SAS 12.0 (24 Gbps), SAS 24.0 (48 Gbps)
   • Usage: SAS connectors are commonly found in servers and high-end storage solutions.
3. Serial ATA (SATA) Connector:
   • Description: SATA connectors are used for connecting Hard Disk Drives (HDDs), Solid State Drives (SSDs), and Optical Drives (e.g., DVD drives) to the motherboard.
   • Data Transfer Speed: SATA I (1.5 Gbps), SATA II (3 Gbps), SATA III (6 Gbps), SATA Revision 3.2 (16 Gbps)
   • Usage: SATA connectors have been widely used in computers since the early 2000s and are still prevalent in modern systems.
4. mSATA Connector:
   • Description: mSATA connectors are used for connecting mSATA SSDs, which are smaller form factor SSDs often used in laptops and some desktops.
   • Data Transfer Speed: SATA II (3 Gbps), SATA III (6 Gbps)
   • Usage: Commonly used in laptops and smaller form factor devices.

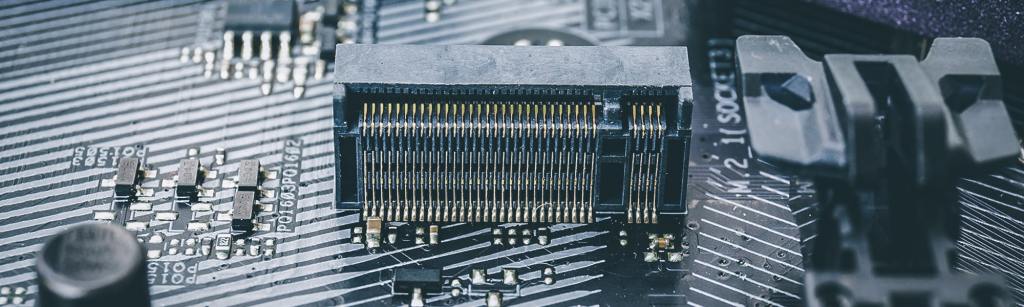

5. M.2 Connector:
   • Description: M.2 connectors, also known as NGFF (Next Generation Form Factor), are versatile connectors used for various storage devices, including M.2 SSDs.
   • Data Transfer Speed: PCIe Gen 3.0 (8 Gbps per lane), PCIe Gen 4.0 (16 Gbps per lane)
   • Usage: Increasingly popular in modern laptops and desktops due to their compact size and high-speed capabilities.
6. PCIe Connector:
   • Description: PCIe connectors are used for various expansion cards, including some high-performance SSDs like U.2 SSDs.
   • Data Transfer Speed: Varies depending on the PCIe generation and number of lanes (e.g., PCIe Gen 3.0 x4, PCIe Gen 4.0 x8)
   • Usage: Commonly used for various expansion cards, including some high-end SSDs.
7. U.2 Connector:
   • Description: U.2 connectors, also known as SFF-8639, are used for connecting U.2 SSDs, which are high-performance enterprise-grade SSDs.
   • Data Transfer Speed: PCIe Gen 3.0 (32 Gbps), PCIe Gen 4.0 (64 Gbps)
   • Usage: Often found in enterprise storage solutions and high-performance desktop systems.

Please note that the availability of specific connectors may vary depending on the age and configuration of the system. Modern systems often employ SATA, M.2, and PCIe connectors for storage devices, while older systems might still use IDE connectors. Additionally, data transfer speeds are subject to the capabilities of both the connector and the connected storage device.

Step into the Future with BVM: Unleashing the Potential of Industrial Storage

As we conclude this journey through the fascinating world of data storage, we hope you’ve gained a deeper appreciation for the evolution and innovation that have shaped our digital landscape over the past three decades. From the humble beginnings of floppy disks to the lightning-fast SSDs and cloud storage of today, the pursuit of faster, more reliable, and efficient data storage continues to drive technological advancements.

As technology continues to evolve, so do the demands of industrial and embedded computer applications. If you find yourself in need of cutting-edge solutions for your specific requirements, look no further than BVM. With over 30 years of experience in providing top-notch industrial and embedded hardware solutions, BVM is your trusted partner in navigating the ever-changing landscape of technology.

For all your industrial and embedded computer needs, reach out to our expert team at sales@bvmltd.co.uk or give us a call at 01489 780144. Whether it’s storage solutions, motherboards, expansion cards, or any other hardware requirement, we are here to assist you in finding the perfect fit for your projects.

Thank you for joining us on this exploration of the evolution of storage. As technology continues to push boundaries, let’s embrace the future with the knowledge of the past, ensuring that every connection we make brings us closer to a more efficient and connected world. Happy computing!
