PCI Express Generations: A Comprehensive Guide

PCI Express (PCIe) is a high-speed serial bus standard commonly used to connect peripheral devices to a computer’s motherboard. Since its inception in 2004, PCIe has evolved through multiple generations, each bringing advancements in terms of data transfer speed, bandwidth, and other significant improvements. In this article, we will explore the different generations of PCI Express and their respective features.

It’s worth noting that these are the initial release dates, and adoption of the newer PCIe generations may have taken some time to become widespread in consumer, industrial and embedded products and systems.

PCIe 1.0 and 1.1 (July 2002)

The first generation of PCI Express, version 1.0, was introduced in 2004. It provided a single-lane configuration with a peak data transfer rate of 2.5 giga-transfers per second (GT/s). Later, PCIe 1.1 improved clocking and electrical specifications, but the overall data transfer rate remained the same. These initial versions laid the foundation for future advancements in PCI Express technology.

PCIe 2.0 (January 2007)

PCIe 2.0, released in 2007, marked a significant leap in terms of performance. It introduced multiple lane configurations, including x1, x4, x8, and x16, allowing for increased bandwidth and flexibility. PCIe 2.0 doubled the data transfer rate per lane to 5 GT/s, effectively providing double the bandwidth compared to PCIe 1.0 and allowing for improved performance in graphics cards and other high-speed devices.

PCIe 3.0 (November 2010)

In 2010, PCIe 3.0 was introduced, further enhancing the capabilities of the standard. It maintained backward compatibility with earlier versions while doubling the data transfer rate to 8 GT/s per lane. This resulted in even higher bandwidth and faster communication between components. PCIe 3.0 significantly improved gaming performance, video encoding, and other bandwidth-intensive applications.

PCIe 4.0 (July 2017)

PCIe 4.0, released in 2017, brought a substantial leap in performance and bandwidth. It introduced a data transfer rate of 16 GT/s per lane, effectively doubling the bandwidth compared to PCIe 3.0. This increased speed allowed for faster storage devices, graphics cards, and other peripherals. PCIe 4.0 also introduced improved power delivery capabilities and signaling enhancements.

PCIe 5.0 (May 2019)

The latest iteration of the PCIe standard, PCIe 5.0, was released in 2019. It offers a data transfer rate of 32 GT/s per lane, doubling the bandwidth of PCIe 4.0. PCIe 5.0 provides even faster communication between components and allows for even more advanced applications and devices.

PCIe 5.0 also introduces new features like Forward Error Correction (FEC), which helps improve data transmission reliability, and Equalization Enhancements, which optimize signal integrity for high-speed transmissions over longer distances. These enhancements make PCIe 5.0 ideal for demanding applications such as AI, machine learning, and high-performance computing.

What are the Advantages of PCIe Gen 5

PCIe 5.0: What are the Advantages of PCIe Gen 5.0?

The newer PCIe 5.0 standards mean a higher-bandwidth connection to GPUs, SSDs and other peripherals. Intel 12th Gen systems add support for PCIe 5.0, while 11th Gen added support for PCIe 4.0. All generations of PCIe are backwards compatible, so there’s no reason not to upgrade.

PCIe Evolved: A Look at the Past, Present, and Future Generations

PCIe Evolved

PCI Express has evolved over the years, with each generation bringing improvements in speed, bandwidth, and features. From the initial PCIe 1.0 to the latest PCIe 5.0, the standard has kept up with the increasing demands of modern computing and offers a versatile and reliable solution for connecting peripheral devices to a computer’s motherboard.

PCIe 6.0 (The PCIe 6.0 specification, released in January 2022)

For nearly two decades, the PCI Express specification has been the preferred interconnect, catering to diverse industries. With the advent of PCIe 6.0, the technology takes a significant leap forward, doubling the bandwidth and enhancing power efficiency compared to PCIe 5.0 (32 GT/s). It steadfastly meets the ever-growing demand for high-speed, low-latency interconnects across various sectors.

The cutting-edge PCIe 6.0 technology emerges as a cost-effective and highly scalable solution, perfectly tailored to address the needs of data-intensive markets. From Data Centres and Artificial Intelligence / Machine Learning to High-Performance Computing, Automotive, IoT, and Military/Aerospace applications, PCIe 6.0 stands ready to revolutionize data connectivity, propelling these industries into a new era of efficiency and performance.

Key Features of PCIe 6.0 Specification

  • Blazing Data Rate: Boasting an impressive 64 GT/s raw data rate, PCIe 6.0 takes data transfer speeds to new heights. With a x16 configuration, it achieves an astonishing throughput of up to 256 GB/s.
  • Leveraging PAM4 Signalling: PCIe 6.0 employs Pulse Amplitude Modulation with 4 levels (PAM4) signalling, harnessing the existing PAM4 technology already prevalent in the industry.
  • Enhanced Error Correction: To address the bit error rate increase associated with PAM4 signalling, PCIe 6.0 implements Lightweight Forward Error Correct (FEC) and Cyclic Redundancy Check (CRC) mechanisms, ensuring robust data integrity.
  • Flit-based Encoding: Embracing PAM4 modulation, the Flit (flow control unit) based encoding collaborates seamlessly with FEC and CRC, delivering a remarkable doubling of bandwidth gains.
  • Streamlined Packet Layout: Utilizing an updated Packet layout in Flit Mode, PCIe 6.0 introduces additional functionality while simplifying data processing.
  • Backwards Compatibility: As with previous generations, PCIe 6.0 maintains full backwards compatibility with all earlier iterations of PCIe technology, ensuring seamless integration into existing systems.
PCIe Evolved: A Look at the Past, Present, and Future Generations

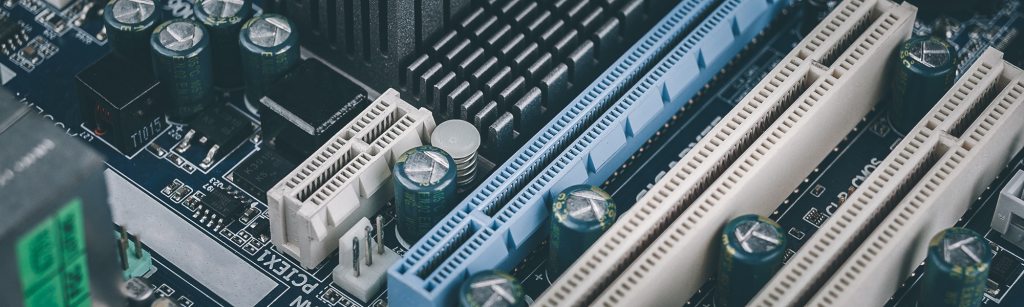

The Need for High-Speed PCIe Slots

High-speed PCIe slots are essential for accommodating various hardware components that demand fast data transfer rates and low latency. Here’s a list of things that typically require a high-speed PCIe slot:

  • Graphics Cards (GPU): Modern gaming and professional GPUs, especially those used for rendering, video editing, and machine learning, require high-speed PCIe slots (e.g., PCIe 3.0 x16 or PCIe 4.0 x16) to deliver optimal performance.
  • Solid State Drives (SSD): High-speed NVMe SSDs benefit from PCIe 3.0 x4 or PCIe 4.0 x4 slots, allowing for significantly faster data access and transfer speeds compared to traditional SATA-based connections.
  • Capture Cards: PCIe-based capture cards used for video capturing and live streaming need high-speed connections to handle high-resolution video and audio data.
  • RAID Controllers: Hardware RAID controllers that manage multiple hard drives or SSDs in a RAID array can benefit from the increased bandwidth and lower latency of high-speed PCIe slots.
  • Thunderbolt Expansion Cards: Some motherboards offer Thunderbolt support through PCIe expansion cards, enabling high-speed data transfer and video connectivity.
  • FPGA (Field-Programmable Gate Array) Cards: FPGA accelerators used in specialized computing tasks, such as cryptography or scientific simulations, may require high-speed PCIe slots to achieve optimal performance.
  • High-Performance Networking Cards: In enterprise environments, high-speed networking cards, such as 10 Gigabit Ethernet or faster, can benefit from high-speed PCIe slots to ensure efficient data transfer and processing.

It’s worth noting that the specific speed requirements may vary depending on the exact models and configurations of the hardware components. Always check the compatibility and specifications of the components to ensure they match the available PCIe generation and slot configurations on your motherboard.

One Important Aspect to Consider When Using PCIe is Compatibility

While newer generations of PCIe offer faster speeds and increased bandwidth, they are backward compatible with older PCIe versions. This means that you can still use PCIe 1.0, 2.0, 3.0, or 4.0 devices with a PCIe 5.0 slot, although the device will operate at the slower speed of the older generation.

It’s also worth noting that the actual performance you will experience with PCIe depends not only on the version of PCIe itself but also on other factors such as the device you are using, the driver software, and the overall system configuration.
