Home » Shop » Industrial PC Components and Peripherals » Video Capture Cards » PCI Express Video Capture Cards » YUAN – SC3C0N8-L – PCIe – SD Capture Solution – 8 Channel COMPOSITE H.264
SC3C0N8 L

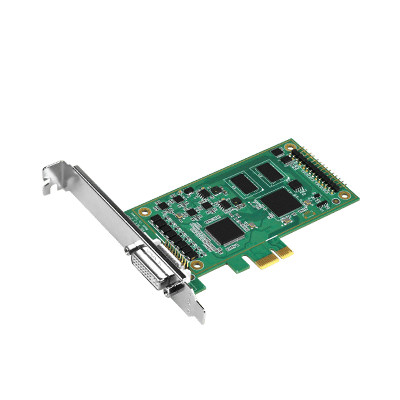

YUAN – SC3C0N8-L – PCIe – SD Capture Solution – 8 Channel COMPOSITE H.264

Yuan – SC3C0N8-L – PCIe – SD Capture Solution – Hardware Compression

ADD TO QUOTE
SKU: SC3C0N8-L Category: Brand:

Description

SC3C0N8 L banner



Model SC3C0N8-L
Max. Input Resolution NTSC
240fps@960/720×480		 PAL
200fps@960/720×576
Recording Mode Hardware Compression, Real-Time Mode
Dimension 119.24×68.9 ( mm )
Interface PCIe×1
ADC 10-Bit
Video Input 8×BNC
Display Video Format YV12, YUV2
Display Video Resolution NTSC
960×480@29.97fps ( WD1 )
720×480@29.97fps ( D1 )		 PAL
960×576@25fps ( WD1 )
720×576@25fps ( D1 )
Recording Video Format H.264 High Profile ( Hardware Compression )
Display Video Resolution NTSC
With WD1 NTSC Camera
960×480@29.97fps
720×480@29.97fps
704×240@29.97fps
480×240@29.97fps
352×240@29.97fps
240×120@29.97fps
176×120@29.97fps
With D1 NTSC Camera
720×480@29.97fps
704×240@29.97fps
480×240@29.97fps
352×240@29.97fps
240×120@29.97fps
176×120@29.97fps		 PAL
With WD1 PAL Camera
960×576@25fps
720×576@25fps
704×288@25fps
480×288@25fps
352×288@25fps
240×144@25fps
176×144@25fps
With D1 PAL Camera
720×576@25fps
704×288@25fps
480×288@25fps
352×288@25fps
240×144@25fps
176×144@25fps
Audio Input 8×RCA
Audio Format Mono / 16-Bit / 48000Hz
Multiple Cards ∞
SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
