A Comprehensive Guide to Computer-on-Modules: From Origins to Applications

Introduction to Computer-on-Modules

In the ever-evolving landscape of embedded computing, Computer-on-Modules (COMs) have emerged as a cornerstone technology. These compact, modular computing solutions offer a flexible and scalable approach to designing and deploying embedded systems across a wide range of applications. Whether in industrial automation, medical devices, robotics, or the burgeoning field of IoT, COMs provide the performance and versatility needed to meet the demands of modern technology. This article delves into the world of COMs, exploring their definition, history, and the various types available today.

What is a Computer-on-Module?

A Computer-on-Module (COM) is a small, self-contained computer designed to be plugged into a carrier board. Unlike traditional single-board computers (SBCs), which include all components on a single board, COMs separate the core processing elements from the application-specific components. This modularity offers several key advantages:

• Scalability: Easily upgrade the processor without redesigning the entire system.
• Flexibility: Customize carrier boards to meet specific application needs.
• Time-to-Market: Accelerate development cycles by leveraging pre-built, tested modules.

A typical COM includes a CPU, memory, storage, and essential I/O interfaces. It connects to a carrier board via standard connectors, which provide additional I/O options, power, and other features tailored to the application.

The History of Computer-on-Modules

• Early Beginnings: The concept of modular computing dates back to the late 20th century. Early embedded systems often required custom-built hardware, which was time-consuming and expensive. The need for a more flexible and scalable solution led to the development of COMs. One of the earliest standards, PC/104, was introduced in the early 1990s, providing a stackable, modular approach to embedded computing.
• Growth and Standardization: In the early 2000s, the introduction of more standardized COM formats, such as COM Express by the PCI Industrial Computer Manufacturers Group (PICMG), marked a significant milestone. These standards provided clear guidelines for size, connectors, and interfaces, fostering broader adoption and interoperability.
• Evolution and Modern Advancements: Over the past decade, COM technology has advanced rapidly. The rise of IoT, edge computing, and AI has driven demand for more powerful, energy-efficient, and versatile modules. Modern COMs feature advanced processors, including multicore ARM and x86 architectures, enhanced graphics capabilities, and extensive connectivity options.
• Current State: Today, COMs are integral to a wide range of industries. Their ability to provide high performance in a compact, modular form factor makes them ideal for applications requiring robust computing power and flexibility. The continued development of standards and technology ensures that COMs will remain a critical component of embedded systems for years to come.

Application Areas for COM Modules

Computer-on-Modules (COMs) are versatile and powerful solutions that find applications across a wide range of industries. Here are some key application areas:

COM modules provide the performance, scalability, and reliability required for these diverse applications, making them an essential component in the development of modern, embedded computing solutions.

Different Types of Computer-on-Modules

COM Express

COM Express is one of the most popular and widely adopted standards for COMs. It offers a range of module sizes and types, supporting various processors and interfaces. COM Express modules are typically used in industrial automation, medical devices, and transportation systems.

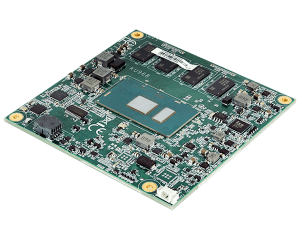

COM Express Sizes

COM Express modules come in three primary sizes, each designed to fit different application requirements:

COM Express Types

COM Express defines several module types, each specifying different connector pin-outs and supported features to cater to various application needs:

PC/104

PC/104 is one of the oldest COM standards, known for its stackable design. It is used in rugged, industrial environments where reliability and durability are critical. PC/104 modules are often employed in military, aerospace, and industrial automation applications.

Other Emerging Standards

In addition to the established standards, several emerging COM formats cater to specific application needs. These include:

• ETX: A legacy standard similar to COM Express, used in industrial and legacy systems.
• µQseven: A smaller version of Qseven for ultra-compact applications.
• Custom COMs: Tailored solutions for specialized applications, offering maximum flexibility and performance.

Custom Computer on Module Carrier Board Design

Why Choose Custom Carrier Board Design?

• Tailored to Your Needs: Custom carrier boards are designed to match the exact specifications and requirements of your application. This ensures that all components and interfaces are perfectly aligned with your project’s goals.
• Enhanced Performance: By focusing on the specific performance metrics you need, custom designs can offer superior performance compared to generic solutions. This includes optimized power consumption, thermal management, and signal integrity.
• Improved Reliability: Custom carrier boards can be designed with robustness and durability in mind, making them ideal for harsh environments and critical applications where reliability is paramount.
• Cost-Effectiveness: While initial costs may be higher, custom designs can reduce long-term expenses by minimizing the need for additional components or modifications, leading to a more streamlined and cost-effective solution.

The BVM Custom Design Process

At BVM, we follow a meticulous and collaborative design process to ensure that your custom carrier board meets all your requirements:

• Initial Consultation: Our team engages with you to understand your specific needs, application environment, and desired outcomes. This involves detailed discussions to capture all technical and functional requirements.
• Design Proposal: Based on the consultation, we provide a comprehensive design proposal outlining the specifications, timeline, and costs involved. This proposal serves as a roadmap for the design and development process.
• Engineering and Design: Our experienced engineers utilize advanced design tools and methodologies to create a carrier board that integrates seamlessly with your chosen Computer-on-Module. This phase includes schematic design, PCB layout, and component selection.
• Prototyping and Testing: We develop prototypes of the custom carrier board and conduct rigorous testing to validate performance, compatibility, and reliability. Any necessary adjustments are made to ensure the final design meets all criteria.
• Production and Delivery: Once the design is finalized and approved, we manage the production process to ensure high-quality manufacturing and timely delivery. We also provide ongoing support to address any post-deployment issues or requirements.

Contact BVM for All Your Industrial and Embedded Computing Needs

Computer-on-Modules have revolutionized the way we approach embedded system design. Their modularity, scalability, and flexibility make them indispensable in today’s technology landscape. From their early beginnings to their current widespread adoption, COMs have continually evolved to meet the needs of various industries. As technology advances, COMs will undoubtedly continue to play a crucial role in enabling innovative solutions and driving the future of embedded computing.

At BVM, we specialize in providing top-quality Industrial and Embedded Computer hardware solutions. With over 35 years of experience in the industry, we are equipped to meet all your computing needs. Whether you need an off-the-shelf solution or a custom-designed system, our in-house design team is here to help. Contact our sales team today: Phone: 01489 780144 or Email: sales@bvmltd.co.uk

Let us provide you with the expertise and support to drive your projects forward. Reach out to BVM and discover how we can enhance your industrial and embedded computing solutions.
