Description
The medical-grade panel PC series are built to suit for healthcare environments, granted medical certification to ensure safety and top performance. Wincomm medical product series are all designed with acquired the latest Medical IEC-60601-1 safety 3.1th edition and EMC 4th edition certification, IEC-62133, Energy star 6.1 Compliance with FCC / CE / VCCI Class B. ESD levels are increased from 8KV air to 15KV air, and contact from 6KV to 8KV. The Medical 60601-1 4th certification means all our medical products can withstand higher amounts of environmental electromagnetic waves, resulting in more robust products and a substantial increase in user safety. Toward Smart Healthcare market trend, a highly integrated AIO medical grade panel PC, WMP C/F series Skylake to Kaby Lake platform will be our most focus promoting product series, and medical cart PC series, WMP G/H are released to meet for mobile medical applications. The further information is illustrated below
Features
- EMC 4.0/ Safety 3.1 certification ready
- Integrated hot-swappable batteries, 24/7 run-time
- Support Intel vPro technology by CPU
- M.2 type SATA SSD
- Support remote monitor / control / device update sw
- FHD capture card as option
Specifications
| CPU | Kabylake 7th generation Intel Core i7/i5/i3/Celeron processor (15W max.) |
| Chipset | SoC |
| VGA | Intel integrated HD Graphics 620 by CPU |
| Memory | Two 2133 MHz DDR4 SODIMM socket support dual Channel, non-ECC, up to 32GB |
| Touch-screen | 21.5” / Full flat projective capacitive touch panel / 1920 x 1080 (Full HD) / 250 nits |
| External I/O | USB 3.0 x 4 |
| COM x 2 (RS232, RS232/422/485:RS485 support auto flow control) | |
| Giga LAN x 2 | |
| DP x 2 | |
| 3.5mm Audio jack x 2 (Line-out, and Mic-in) | |
| DC-In x 1, DC 14~28V input (14V~28V with battery pack) | |
| Reset button x 1 | |
| Storage HDD | SATA SSD , up to 512G |
| Expansion | PCI-E x 4 expansion slot x 1 (25W max.) |
| Card size: 112.5 mm (W) x 190mm (D) x 25mm (H)(without side USB ports) | |
| Mini PCIe x 1 (52 pin card-edge type) | |
| M.2 Type E Key x 1 | |
| Regulations | FCC/CE/VCCI Class B, |
| cULus Mark/UL60601-1 | |
| EN60601-1 approved / ISO 14971 / IEC-62133 | |
| Energy star 6.1 compliance(Contact with Wincomm sales for detail) | |
| Size | 541 x 352.9 x 56 mm (W x H x D, w/o stand) |
| Weight | 7.0 KG (approximate, w/o power adaptor) |
| OS Support | Windows 7 embedded, Windows 7 pro |
| Windows 8 embedded, Windows 8 industrial | |
| Windows 10 | |
| Ordering information | WMP-22G; Core i5 / DDR4 4G RAM / 128G SSD / Full flat P.cap touch |
| WMP-22G; Core i7 / DDR4 4G RAM / 128G SSD / Full flat P.cap touch | |
| WMP-22G; Core i3 / DDR4 4G RAM / 128G SSD / Full flat P.cap touch | |
| WMP-22G; Celeron / DDR4 4G RAM / 128G SSD / Full flat P.cap touch |
Options
- Wireless or Wireless + BT kit
- Webcam (5 M pixel, USB)
- 2.5″ HDD or SSD module
- Integrated hot-swappable batteries 81Wh x 3 (100W output max.)
- Charger bank
- Cable clean IO cover
- Equipotential terminal pin
- RFID (13.56MHz)FHD capture card
- TPM v2.0 module
- Smart card reader
- Power adaptor w/ 2.4m or 3.6m DC cable
- Power plug holder
- WMP series stand, VESA 75/100
- AG film
Customisation
- Tempered glass
- 5V1A power Jack
- USB 3.1 gen2 (USB 5,6)
- 4KV Isolation:
ISO COM x 2 + ISO LAN x 1 + ISO USB2.0 x 1
(need to take original COM x 2 and LAN x1 ports’ space)

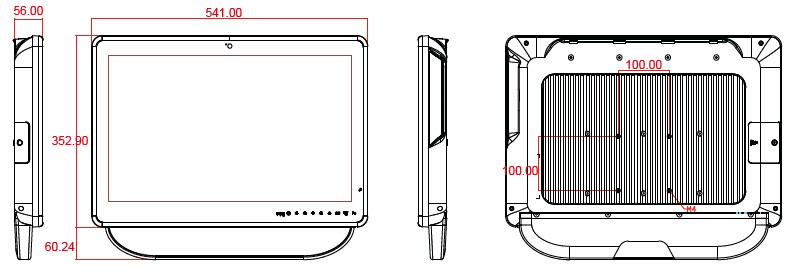

Drawing
