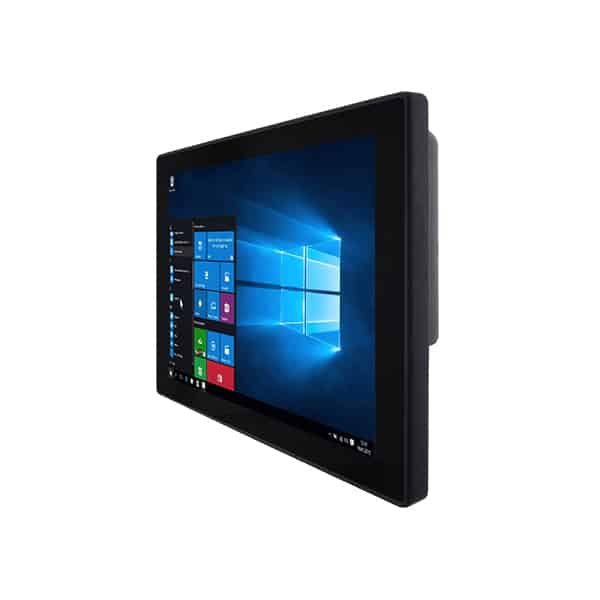

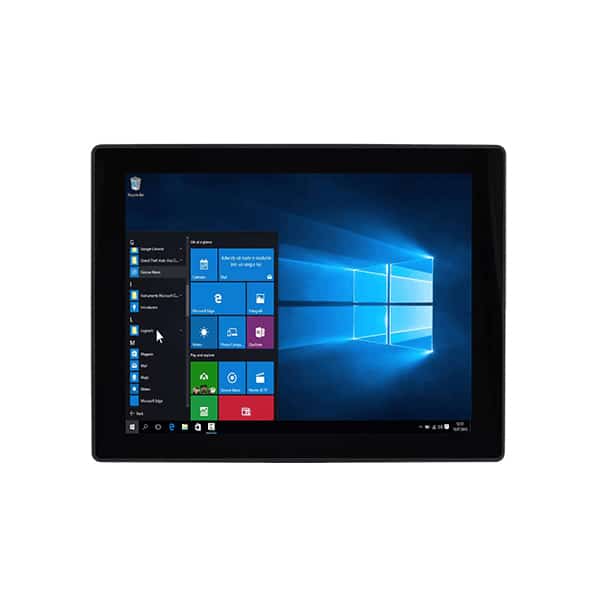

Winmate 10.1″ – 15″ G-WIN X86 GS Panel PC Series
- Product Name: Winmate G-WIN X86 GS Series Panel PC
- Screen Size: 10.1″ – 15″ edge-to-edge projected capacitive multi-touch display
- CPU: Intel Elkhart Lake processors for efficient, robust performance
- RAM: Configurable memory options to support demanding applications
- Expansion: Flexible connectivity with M12 waterproof connectors for I/O expansion
- Other Features: IP65 fully rugged enclosure, fanless low-power design, Windows 10 IoT & Linux support
Description
The Winmate G-WIN GS-Series of x86 Panel PCs, available from BVM, delivers powerful and reliable computing for demanding industrial applications. Powered by efficient Intel Celeron processors, these panel PCs offer excellent performance and compatibility with Windows and Linux operating systems. The series features a brilliant, edge-to-edge true-flat screen with responsive PCAP multi-touch. Housed in a rugged, fanless chassis and sealed to full IP65 standards with M12 waterproof connectors, these panel PCs are built to withstand dust, water, and harsh industrial environments, making them the ideal choice for factory automation, process control, and outdoor HMI.
Key Features
- Powerful Intel® Processors: Equipped with efficient Intel Elkhart Lake processors for robust performance and broad software compatibility.
- Fully Rugged & Waterproof: A full IP65-rated enclosure with M12 waterproof connectors ensures complete protection against dust and water ingress from all sides.
- Fanless, Low-Power Design: The ultra-low power consumption and passive cooling system allow for silent, reliable 24/7 operation.
- Superior PCAP Touchscreen: A brilliant, edge-to-edge projected capacitive multi-touch screen provides an intuitive user experience and excellent readability.
- Windows & Linux Ready: Designed for seamless integration into existing systems with support for popular operating systems like Windows 10 IoT and Linux.
Disclaimer: The information provided on this page for guidance purposes only. For complete and detailed specifications, including all configurations and certifications, please contact us to request the official product datasheets.
Available Models
| Model | Screen Size | Resolution | CPU | I/O Ports | Key Features |
| W10IE3S-GSH2 | 10.1″ | 1280 x 800 | Intel® Celeron® N6211 | 1x LAN, 1x RS232, 1x USB | Full IP65, M12 Connectors |
| R10IE3S-GST2 | 10.4″ | 1024 x 768 | Intel® Celeron® N6211 | 1x LAN, 1x RS232, 1x USB | Full IP65, M12 Connectors |
| R12IE3S-GSM2(HB) | 12.1″ | 1024 x 768 | Intel® Celeron® N6211 | 1x LAN, 1x RS232, 1x USB | Full IP65, M12, High Brightness (Opt.) |
| W12IE3S-GSB1 | 12.3″ | 1920 x 720 | Intel® Celeron® N6211 | Varies by config | Full IP65, M12, MIL-STD-810H |
| R15IE3S-GSC3(HB) | 15″ | 1024 x 768 | Intel® Celeron® N6211 | 1x LAN, 1x COM, 1x USB | Full IP65, M12, High Brightness (Opt.) |
Specification Comparison
The information provided in this table is for guidance. For complete and detailed specifications, including all models, configurations and certifications, please contact us to request the official product datasheet.
| Feature | 12.1″ Model | 15.0″ Model |
| Display | ||
| Touch / Glass | PCAP Multi-Touch Protection Glass (Optional) |
PCAP Multi-Touch Protection Glass (Optional) Anti-glare Coating (Optional) |
| Size | 12.1 inches | 15.0 inches |
| Resolution | 1024 x 768 | 1024 x 768 |
| Panel Brightness | 500 nits (1000 nits Optional) | 300 nits (1000 nits Optional) |
| Contrast Ratio | 1000:1 | 2000:1 |
| View Angles | 89, 89, 89, 89 | 88, 88, 88, 88 |
| Active Area (mm) | 245.76 x 184.32 | 304.1 x 228.1 |
| System | ||
| Processor | Intel® Celeron® N6211 (up to 3.0GHz) | Intel® Celeron® N6211 (up to 3.0GHz) |
| Memory | 4GB DDR4 (8GB / 16GB Optional) | 4GB DDR4 (8GB / 16GB Optional) |
| Storage | 128GB M.2 SSD (256GB / 512GB Optional) | 128GB M.2 SSD (256GB / 512GB Optional) |
| Ethernet Controller | 2 x Intel® Ethernet Controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 | TPM 2.0 |
| Operating System | Windows 10/11 IoT, Win 11 Pro, Linux (Optional) | Windows 10/11 IoT, Win 11 Pro, Linux (Optional) |
| Environment | ||
| Operating Humidity | 10% to 95% RH | 10% to 95% RH |
| Operating Temp. | -15°C to 55°C | -15°C to 55°C |
| Storage Temp. | -30°C to 60°C | -30°C to 60°C |
| Shock | 40g for 11ms | 40g for 11ms |
| Vibration | MIL-STD-810F/G Compliant | MIL-STD-810F/G Compliant |
| IP Rating | IP65 (Front) | IP65 (Front) |
| I/O Ports | ||
| USB Port | 1 x USB 2.0 (M12 type) | 1 x USB 2.0 (M12 type) |
| Serial Port | 1 x RS232/422/485 (M12 type) | 1 x RS232/422/485 (M12 type) |
| LAN | 1 x LAN-10/100/1000 (M12 type) | 1 x LAN-10/100/1000 (M12 type) |
| Indicators | Power LED, Storage LED | Power LED, Storage LED |
| Power | ||
| Power Rating | 9-36V DC (M12 type) | 9-36V DC (M12 type) |
| Mechanical | ||
| Dimensions (mm) | 296.2 x 226.7 x 45.5 | 363.4 x 277.9 x 45.2 |
| Mounting | VESA Mount / Panel Mount | VESA Mount / Panel Mount |
| Enclosure | Aluminium | Aluminium |
| Cooling System | Fanless Design | Fanless Design |
| Controls | ||
| Buttons | 1 x Power Button, 1 x Reset Button | 1 x Power Button, 1 x Reset Button |
| Accessories | ||
| Included | Quick Start Guide, M12 Cables (Power, Serial, USB/LAN), I/O Caps | Quick Start Guide, M12 Cables (Power, Serial, USB/LAN), I/O Caps |
| Certification | ||
| Certifications | CE, FCC, MIL-STD-810F/G | CE, FCC, MIL-STD-810F/G |
Ordering Information
As an official Winmate UK distributor, BVM offers a wide range of industrial Panel PCs. The products shown on our site represent only a small selection of Winmate’s extensive portfolio, which includes industry-specific all-in-one computers for military, medical, and marine applications. Our team can help you explore the full range to find the ideal solution for your project.
For full technical specifications, current pricing, and estimated lead times, please contact us.
We are ready to provide official datasheets and pricing for any of the models listed above.
To request a formal quote or discuss your specific requirements – including processor performance, memory, storage, I/O configuration, operating system, or customisations – our knowledgeable sales team is ready to provide expert guidance and ensure you select the most suitable Panel PC for your application.
Need a Custom Solution? If you can’t find an off-the-shelf system that meets your specific requirements, speak with our in-house design team. We specialize in designing and building new products from start to finish, ensuring the final solution is a perfect fit for your application.
Reach our expert sales team on 01489 780144 or email us at sales@bvmltd.co.uk or send a quote request via this page.
