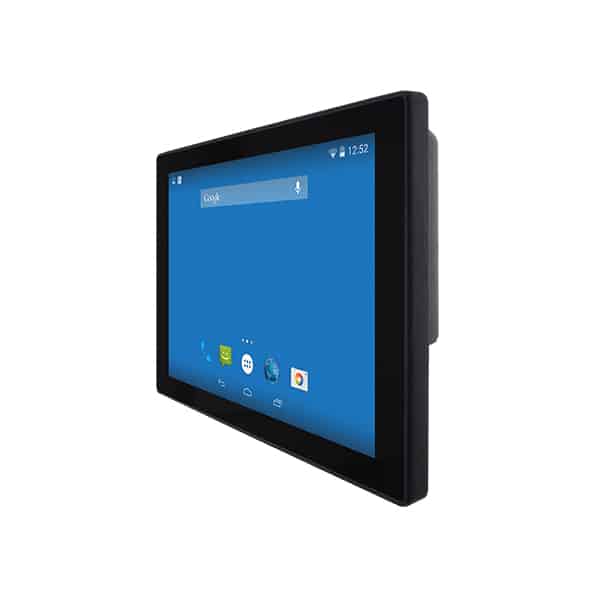

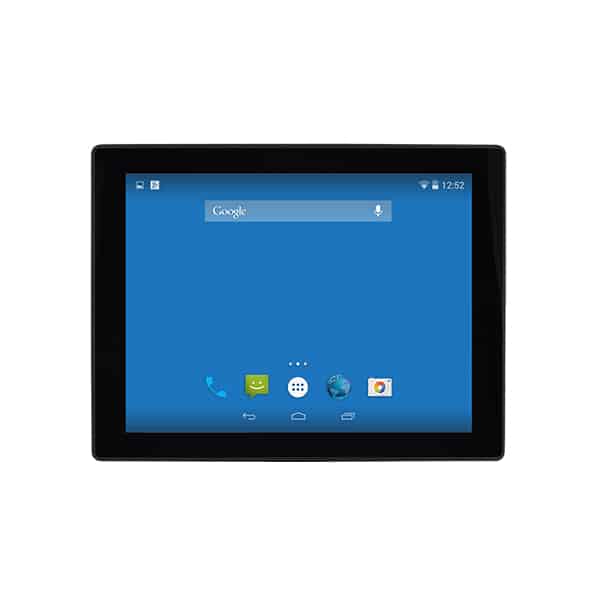

Winmate 7" - 15" G-WIN ARM GS Panel PC Series

Winmate 7″ – 15″ G-WIN ARM GS Panel PC Series

Product Name: Winmate G-WIN ARM GS Series Panel PC
Screen Size: 7″ – 15″ projected capacitive multi-touch display
CPU: ARM-based processors for efficient, low-power performance
RAM: Integrated LPDDR4 memory for fast and reliable operation
Expansion: Comprehensive I/O including LAN, RS232, USB, and Micro SD
Other Features: Fully sealed IP65 waterproof enclosure, fanless design, Android & Linux OS support

SKU: G-WIN ARM GS Series Categories: INDUSTRIAL PANEL PCS, Military and Defence Panel PCs - MIL-STD, Rugged Panel PCs Tags: Low Power, M12 Connectors, MIL-STD, OS: Android, OS: Linux, Powered by ARM, Rugged, Touchscreen, Wide Temp Brand: Winmate Inc

Description

The Winmate G-WIN GS-Series of ARM Panel PCs from BVM is engineered for exceptional energy efficiency and durability. These panel PCs leverage a range of powerful yet low-power ARM-based processors (including ARM A78/A55, A53, and NXP i.MX6), making them the perfect solution for applications where thermal management and minimal power consumption are critical. Each unit features a brilliant true-flat PCAP touchscreen and a fanless design, sealed in a full IP65-rated enclosure for complete protection against the elements. With support for Android and Linux operating systems, the GS-Series ARM Panel PCs are ideal for IoT/IIoT gateways, data acquisition, and HMI applications in challenging environments.

Key Features

Efficient ARM Processors: A choice of ARM-based CPUs delivers an excellent balance of performance and ultra-low power consumption for fanless operation.
Full IP65 Waterproof Enclosure: The rugged design is completely sealed against dust and water, ensuring reliable performance in wet and dirty environments.
Android & Linux Support: Optimized for modern embedded applications with support for Android or Linux operating systems.
Rich Onboard I/O: Features a comprehensive set of I/O ports, including LAN, RS232, USB, and Micro SD, to connect to a wide range of peripherals and sensors.
Onboard Memory & Storage: Integrated LPDDR4 RAM and eMMC storage provide a responsive and reliable all-in-one computing solution.

Disclaimer: The information provided on this page for guidance purposes only. For complete and detailed specifications, including all configurations and certifications, please contact us to request the official product datasheets.

Available Models

Model	Screen Size	Resolution	CPU	RAM / Storage	I/O Ports
W07MG3S-GST1/GSO1	7″	1024 x 600	ARM A78+A55	4GB / 32GB	LAN, RS232, USB, USB-C, Micro SD
W07IM3S-GST1/GSO1	7″	1024 x 600	ARM A53 Quad Core	4GB / 32GB	LAN, RS232, USB, Micro USB, Micro SD
W07FA3S-GSO1HB	7″	1024 x 600	NXP i.MX6 Dual Core	Varies	Varies by config
W10MG3S-GSH2	10.1″	1280 x 800	ARM A78+A55	4GB / 32GB	LAN, RS232, USB, USB-C, Micro SD
W10IM3S-GSH2	10.1″	1280 x 800	ARM A53 Quad Core	4GB / 32GB	LAN, RS232, USB, Micro USB, Micro SD
W10FA3S-GSH2	10.1″	1280 x 800	NXP i.MX6 Dual Core	Varies	Varies by config
R10FA3S-GST2	10.4″	1024 x 768	NXP i.MX6 Dual Core	1GB / 16GB	LAN, RS232, USB, OTG, Console, Micro SD
R12MG3S-GSM2(HB)	12.1″	1024 x 768	ARM A78+A55	4GB / 32GB	LAN, RS232, USB, USB-C, Micro SD
R12IM3S-GSM2(HB)	12.1″	1024 x 768	ARM A53 Quad Core	4GB / 32GB	LAN, RS232, USB, Micro USB, Micro SD
R12FA3S-GSM2(HB)	12.1″	1024 x 768	NXP i.MX6 Dual Core	1GB / 16GB	LAN, RS232, USB, OTG, Console, Micro SD
W12MG3S-GSB1	12.3″	1920 x 720	ARM A78+A55	Varies	Varies by config
R15MG3S-GSC3(HB)	15″	1024 x 768	ARM A78+A55	4GB / 32GB	LAN, RS232, USB, USB-C, Micro SD
R15IM3S-GSC3(HB)	15″	1024 x 768	ARM A53 Quad Core	4GB / 32GB	LAN, RS232, USB, Micro USB, Micro SD
R15FA3S-GSC3(HB)	15″	1024 x 768	NXP i.MX6 Dual Core	1GB / 16GB	LAN, RS232, USB, OTG, Console, Micro SD

Specification Comparison

The information provided in this table is for guidance. For complete and detailed specifications, including all models, configurations and certifications, please contact us to request the official product datasheet.

Feature	12.1″ Model	15.0″ Model
Display
Touch / Glass	PCAP Multi-Touch Protection Glass (Optional)	PCAP Multi-Touch Protection Glass (Optional) Anti-glare Coating (Optional)
Size	12.1 inches	15.0 inches
Resolution	1024 x 768	1024 x 768
Panel Brightness	500 nits (1000 nits Optional)	300 nits (1000 nits Optional)
Contrast Ratio	1000:1	2000:1
View Angles	89, 89, 89, 89	88, 88, 88, 88
Active Area (mm)	245.76 x 184.32	304.1 x 228.1
System
Processor	ARM 2xA78 @ 2.0GHz + 4xA55 @ 2.0GHz	ARM A53 Quad Core @ 2.0GHz
Memory	4GB LPDDR4	4GB LPDDR4
Storage	Onboard 32GB eMMC	Onboard 32GB eMMC
Operating System	Android 13 Linux Yocto/Ubuntu (Optional)	Android 11 (Upgradable) Linux Yocto/Ubuntu (Optional)
Environment
Operating Humidity	10% to 95% RH, Non-Condensing	10% to 95% RH, Non-Condensing
Operating Temp.	-15°C to 55°C	-15°C to 55°C
Storage Temp.	-30°C to 60°C	-30°C to 60°C
Shock	MIL-STD-810H Compliant	MIL-STD-810H Compliant
Vibration	MIL-STD-810H Compliant	MIL-STD-810H Compliant
IP Rating	IP65	IP65
I/O Ports
USB Port	1x USB 2.0 (M12), 1x USB Type-C	1x USB 2.0 (M12), 1x Micro USB
Serial Port	1x RS232 (M12 type) (Opt. 422/485)	1x RS232 (M12 type) (Opt. 422/485)
LAN	1x LAN 10/100/1000 Mbps (M12 type)	1x LAN 10/100/1000 Mbps (M12 type)
Audio	2 x Speaker	2 x Speaker
SD Card Slot	1 x Micro SD card slot	1 x Micro SD card slot (Max 32GB)
Power
Power Rating	12V DC (M12 type)	12V DC (M12 type)
Mechanical
Dimensions (mm)	296.2 x 226.7 x 45.5	363.4 x 277.9 x 45.2
Mounting	VESA Mount / Panel Mount	VESA Mount / Panel Mount
Enclosure	Metal Housing with Aluminium Bezel	Aluminium
Cooling System	Fanless Design	Fanless Design
Accessories
Included	Quick Start Guide, M12 Cables (Power, Serial, USB/LAN), I/O Caps	Quick Start Guide, M12 Cables (Power, Serial, USB/LAN), I/O Caps
Certification
Certifications	CE, FCC	CE, FCC

Ordering Information

As an official Winmate UK distributor, BVM offers a wide range of industrial Panel PCs. The products shown on our site represent only a small selection of Winmate’s extensive portfolio, which includes industry-specific all-in-one computers for military, medical, and marine applications. Our team can help you explore the full range to find the ideal solution for your project.

For full technical specifications, current pricing, and estimated lead times, please contact us.
We are ready to provide official datasheets and pricing for any of the models listed above.

To request a formal quote or discuss your specific requirements – including processor performance, memory, storage, I/O configuration, operating system, or customisations – our knowledgeable sales team is ready to provide expert guidance and ensure you select the most suitable Panel PC for your application.

Need a Custom Solution? If you can’t find an off-the-shelf system that meets your specific requirements, speak with our in-house design team. We specialize in designing and building new products from start to finish, ensuring the final solution is a perfect fit for your application.

Reach our expert sales team on 01489 780144 or email us at sales@bvmltd.co.uk or send a quote request via this page.
