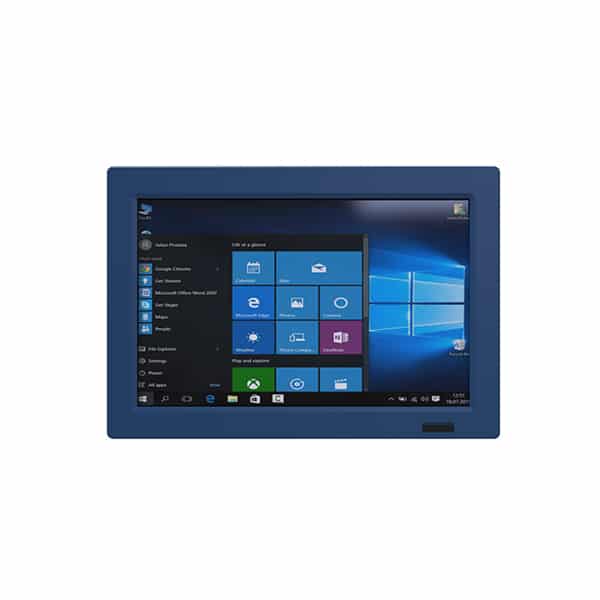

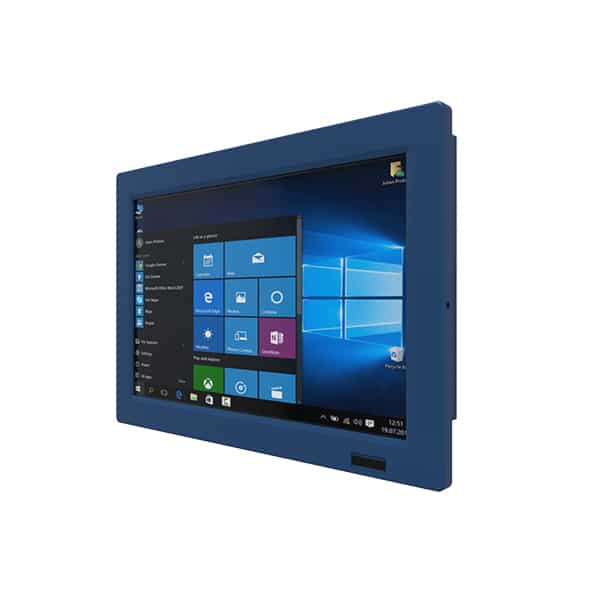

Winmate 8.4″ – 15″ G-WIN Vehicle Mount Panel PC Series
- Product Name: Winmate G-WIN Vehicle Mount Panel PC Series
- Screen Size: Available in 8.4″ to 15″ display options with standard and high-brightness sunlight-readable configurations
- CPU: Choice of Intel 12th Gen i5 or Celeron N6211 processors, fanless design
- RAM: Configurable memory options depending on model
- Expansion: Optional Wi-Fi with antenna support, ignition control, and vehicle-friendly wide-range DC input (9–36V / 10–60V)
- Other Features: IP65-rated aluminium housing with anti-corrosion treatment, MIL-STD-810 shock and vibration compliance, and resistive or anti-reflective touch options
Description
The Winmate G-WIN VM Series Vehicle Mount Panel PCs are purpose-built for logistics, warehousing, fleet management, and manufacturing environments where rugged performance is critical. Designed to be mounted directly onto forklifts, trucks, and industrial vehicles, these panel PCs deliver reliable computing power while withstanding shock, vibration, dust, moisture, and extreme temperatures. Built with aluminium housings, IP65-rated front bezels, and tested to MIL-STD-810G standards, the G-WIN VM Series ensures durability in harsh working environments. From efficient Intel Celeron processors to high-performance 12th Gen Intel Core i5 CPUs, the range offers flexible computing solutions to suit different application requirements.
Key Features
- Powerful Intel Processors: A wide selection of CPUs, including 12th Gen Intel i5 and efficient Celeron N6211 processors, to match any performance requirement.
- Rugged, IP65-Rated Construction: Features a durable aluminium housing with anti-corrosion treatments and a front bezel sealed to IP65 for dust and water resistance.
- MIL-STD-810 Compliant: Certified to withstand high levels of shock and vibration, ensuring reliability and longevity when mounted in moving vehicles.
- Wide Range DC Power with Ignition Control: A vehicle-friendly wide-range DC power input (e.g., 9-36V or 10-60V) with an optional ignition delay function prevents data loss from sudden power-off events.
- Versatile Touch & Display Options: Available with durable 5-wire resistive touchscreens, ideal for gloved use, or an optional anti-reflection protective glass. High-brightness, sunlight-readable screen options are available for most models.
- Wireless Connectivity: Most models can be equipped with optional Wi-Fi and antennas for seamless communication on the warehouse floor or in the field.
Disclaimer: The information provided on this page for guidance purposes only. For complete and detailed specifications, including all configurations and certifications, please contact us to request the official product datasheets.
Available Models
| Model | Screen Size | Resolution | CPU | Key Features |
| R08IE3S-VMU1 | 8.4″ | 800 x 600 | Intel® Celeron® N6211 | Resistive Touch, Front IP65, MIL-STD-810, 10-60V DC |
| R10IAD3S-VMT2(HB) | 10.4″ | 1024 x 768 | 12th Gen Intel® Core™ i5-1235U | High Brightness Opt., Wide Temp, 9-36V DC, EN50155 |
| R10IT3S-VMT2(HB) | 10.4″ | 1024 x 768 | Intel® Core™ i5-1135G7 | High Brightness Opt., Wide Temp, 9-36V DC, EN50155 |
| R10IE3S-VMT2(HB) | 10.4″ | 1024 x 768 | Intel® Celeron® N6211 | High Brightness Opt., Resistive Touch, WLAN Opt., 10-60V DC |
| W12IAD3S-VMM9(HB) | 12.1″ | 1280 x 800 | 12th Gen Intel® Core™ i5-1235U | High Brightness Opt., Wide Temp, 9-36V DC |
| W12IT3S-VMM9(HB) | 12.1″ | 1280 x 800 | Intel® Core™ i5-1135G7 | High Brightness Opt., Wide Temp, 9-36V DC |
| W12IE3S-VMM9(HB) | 12.1″ | 1280 x 800 | Intel® Celeron® N6211 | High Brightness Opt., Resistive Touch, WLAN Opt., 10-60V DC |
| R15IAD3S-VMC3(HB) | 15″ | 1024 x 768 | 12th Gen Intel® Core™ i5-1235U | High Brightness Opt., Wide Temp, GPS/WWAN/WLAN Opt. |
| R15IT3S-VMC3(HB) | 15″ | 1024 x 768 | Intel® Core™ i5-1135G7 | High Brightness Opt., Wide Temp, GPS/WWAN/WLAN Opt. |
| R15IE3S-VMC3(HB) | 15″ | 1024 x 768 | Intel® Celeron® N6211 | High Brightness Opt., Resistive Touch, Light Sensor, 9-36V DC |
Specification Comparison
The information provided in this table is for guidance. For complete and detailed specifications, including all models, configurations and certifications, please contact us to request the official product datasheet.
| Feature | 8.4″ Model (R08IE3S-VMU1) | 12.1″ Model (W12IT3S-VMM9(HB)) |
| System | ||
| Processor | Intel® Celeron® N6211 (up to 3.0GHz) | Intel® Core™ i5-1135G7 (up to 4.2GHz) |
| Memory | 4GB DDR4 (8GB / 16GB Optional) | 4GB DDR4 (8GB / 16GB / 32GB Optional) |
| Storage | 128GB M.2 2242 B-key SSD (up to 512GB Opt.) | 128GB M.2 2280 NVMe SSD (up to 2TB Opt.) |
| Operating System | Windows 10/11 IoT, Win 11 Pro, Linux (Optional) | Windows 10/11 IoT, Win 11 Pro, Linux (Optional) |
| WLAN / Bluetooth | Optional | Optional |
| Display | ||
| Touch / Glass | Resistive Touch (Opt.), Protection Glass (Opt.) | Resistive Touch (Opt.), Protection Glass (Opt.) |
| Size | 8.4 inches | 12.1 inches |
| Resolution | 800 x 600 | 1280 x 800 |
| Panel Brightness | 600 nits | 400 nits (High Brightness Optional) |
| Contrast Ratio | 600:1 | 1000:1 |
| View Angles | 75, 75, 60, 70 | 88, 88, 88, 88 |
| Environment | ||
| Operating Temp. | -10°C to 55°C | -10°C to 55°C |
| Storage Temp. | -30°C to 70°C | -30°C to 70°C |
| Shock / Vibration | MIL-STD-810G Compliant | MIL-STD-810G Compliant |
| IP Rating | Front IP65 | Front IP65 |
| I/O Ports | ||
| USB Port | 2 x USB 3.2 Gen2x1 (Type-A) | 2 x USB 3.2 Gen2x1 (Type-A) |
| Serial Port | 1x RS232/422/485, 1x RS232 | 1x RS232/422/485, 1x RS232 |
| LAN | 2 x 2.5 Giga LAN RJ45 | 2 x 2.5 Giga LAN RJ45 |
| Video | 1 x HDMI 2.0 (Optional) | 1 x HDMI 2.0 (Optional) |
| Expansion Slots | 1x M.2 2242 B-Key, 1x M.2 2230 E-Key | 1x M.2 2280 M-Key, 1x M.2 2230 E-Key |
| Power | ||
| Power Input | 10 ~ 60V DC, 3-Pin Terminal Block | 9 ~ 36V DC, 3-Pin Terminal Block |
| Mechanical | ||
| Dimensions (mm) | 277 x 219.5 x 59.6 | 310 x 215 x 52.7 |
| Weight | 2.2 kg | 2.8 kg |

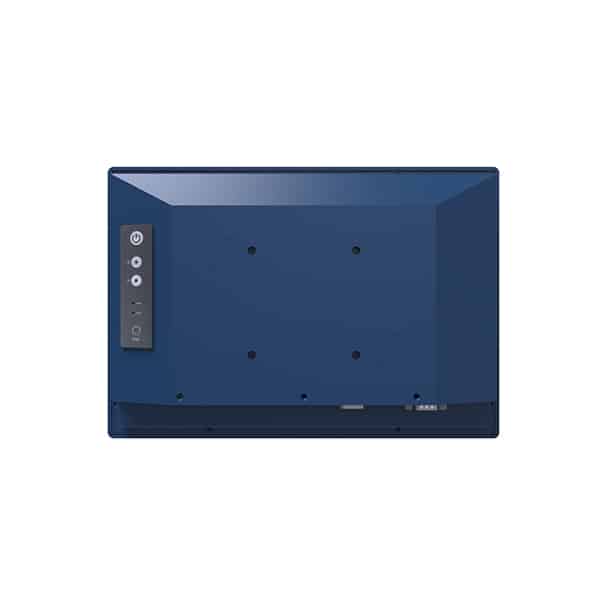

| Mounting | VESA Mount / Yoke Mount | VESA Mount |
| Enclosure | Aluminum Housing | Aluminum Housing |
| Controls | ||
| Buttons | Power, Reset, Brightness Up/Down | Power, Reset, Brightness Up/Down |
Ordering Information
As an official Winmate UK distributor, BVM offers a wide range of industrial Panel PCs. The products shown on our site represent only a small selection of Winmate’s extensive portfolio, which includes industry-specific all-in-one computers for military, medical, and marine applications. Our team can help you explore the full range to find the ideal solution for your project.
For full technical specifications, current pricing, and estimated lead times, please contact us.
We are ready to provide official datasheets and pricing for any of the models listed above.
To request a formal quote or discuss your specific requirements – including processor performance, memory, storage, I/O configuration, operating system, or customisations – our knowledgeable sales team is ready to provide expert guidance and ensure you select the most suitable Panel PC for your application.
Need a Custom Solution? If you can’t find an off-the-shelf system that meets your specific requirements, speak with our in-house design team. We specialize in designing and building new products from start to finish, ensuring the final solution is a perfect fit for your application.
Reach our expert sales team on 01489 780144 or email us at sales@bvmltd.co.uk or send a quote request via this page.
