Brand-new Slim Type Mini PC NUCS 1300/D4 BOX Series

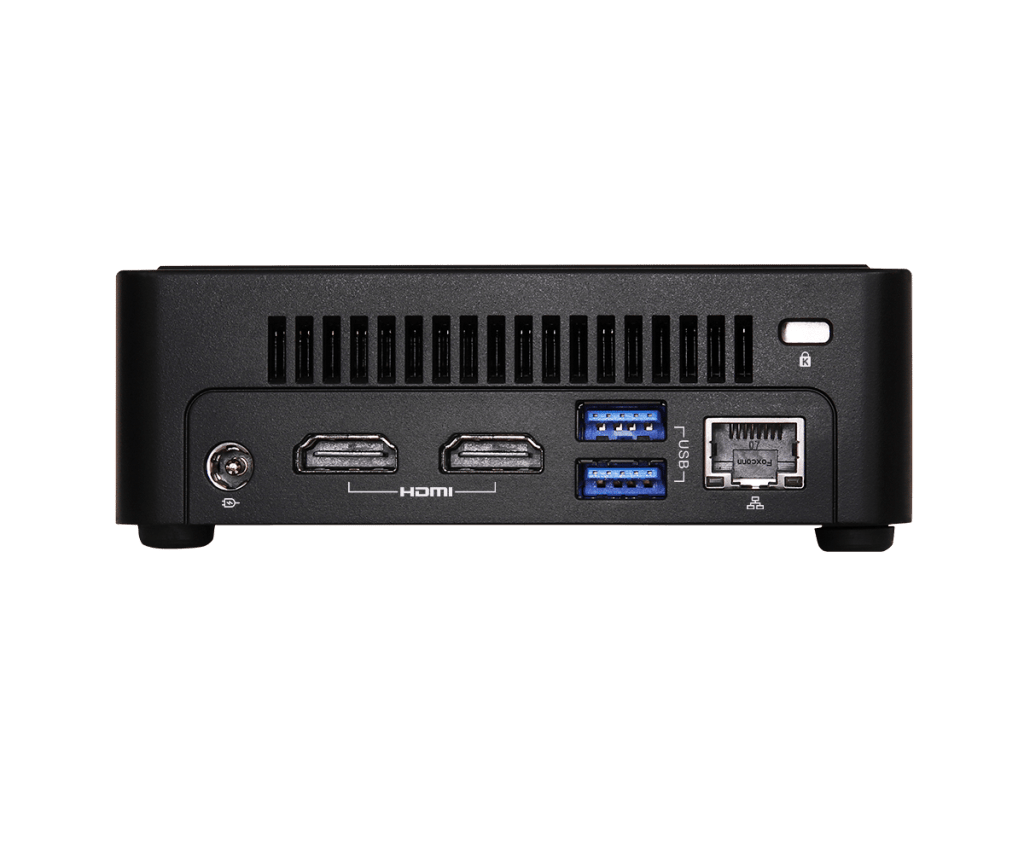

ASRock Industrial have released 4 new box PCs powered by 13th Gen Intel Core Processors (Raptor Lake-P). The NUCS 1300/D4 BOX Series includes the NUCS BOX-1360P/D4 and NUCS BOX-1340P/D4. These PCs feature two DDR4-3200 MHz memory slots (up to 64GB) and support 4K quad-displays through 2 X HDMI 2.0b ports and 2 X DP1.4a ports (from Type C).
Both solutions have 2.5G LAN and WiFi 6E for a reliable network connection, and for I/O and expansion, the 1360P/D4 and 1340P/D4 have 1 X USB4 port, 5 X USB 3.2 Gen2 ports (Type C and A), and 1 X M.2 Key M (2242/2280) for storage, as well as TPM 2.0 onboard and a 12~19V DC-in jack design. The NUCS 1300/D4 BOX Series has a tiny size of 110.0 x 117.5 x 38mm and are suitable for use in retail solutions like digital signage, kiosk, and POS.
Tiny but Mighty- NUC 1300/D5 BOX Series
The NUC 1300/D5 BOX Series includes the NUC BOX-1360P/D5 and NUC BOX-1340P/D5. They’re powered by 13th Gen (Raptor Lake-P) Intel Core i7/i5 Processors and use Intel’s performance hybrid architecture (with 4 P-cores and 8 E-cores) and dual channel DDR5-4800 MHz SO-DIMM memory (up to 64GB) for enhanced multitasking capabilities.
They also support up to 4K quad displays through 1 X HDMI 2.0b port, 1 X DP 2.1 port (from USB4), and 2 X DP 1.4a ports (one from Type C) with Intel Iris Xe Graphics, providing clear and vivid visuals. The NUC 1300/D5 BOX Series also has rich I/O connectivity with 2.5G dual-LAN and WiFi-6E, 1 X USB4 port, 4 X USB 3.2 Gen2 ports, and dual storage options with 1 X M.2 Key M (2242/2260/2280) and 1 X SATA 3.0.
All these features are packed into a compact shell measuring 110.0 x 117.5 x 47.85mm (W x D x H) with a fan-cooled barebone design, giving the PCs a reputation for being ‘tiny but mighty’. Additionally, there is a 19V/90W power adapter and a 12-19V DC-in jack designed for flexibility for inconsistent power input, as well as a TPM 2.0 onboard for hardware-based security.
NUC 1300 BOX Series: Key Features
Asrock NUC BOX-1300/D5
- Intel 13th Gen (Raptor Lake-P) Core Processor
- i7-1360P or i5-1340P
- 2 x 262-pin SO-DIMM up to 64GB DDR5 4800MHz
- 1 x USB4, 4 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0b, 1 x DP 2.1 (from USB4), 2 x DP 1.4a (1 from Type-C)
- TPM 2.0 onboard IC
- 19V/90W Power Adapter
- 110.0 x 117.5 x 47.85mm, Fanned Barebone
Asrock NUC BOX-1300/D4
- Intel 13th Gen (Raptor Lake-P) Core Processor
- i7-1360P or i5-1340P
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64GB
- 1 x USB4, 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)
- 1 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)
- TPM 2.0 onboard IC
- 12V~19V DC-In
- 110.0 x 117.5 x 38mm, Slim Type Fanned Barebone
