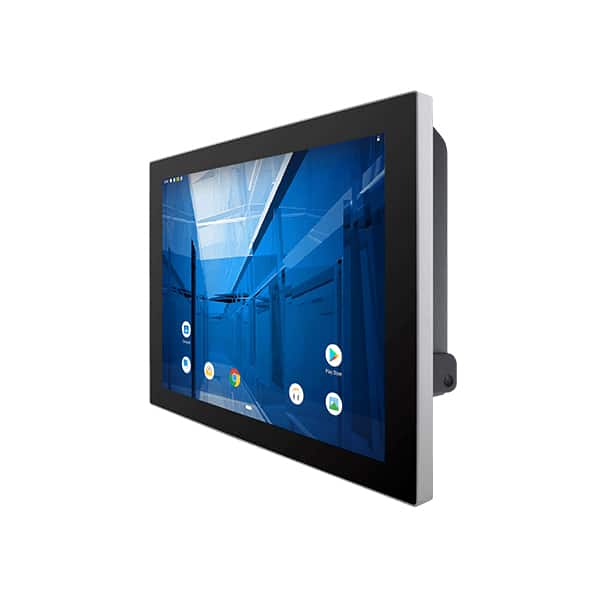

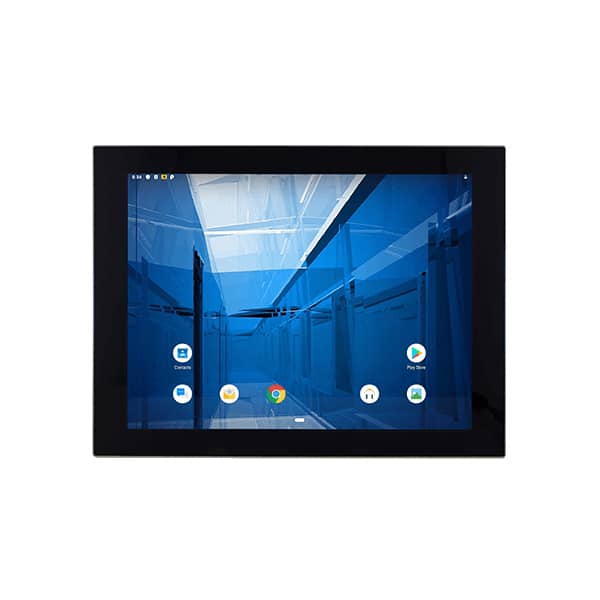

Winmate 7″ – 24″ G-WIN ARM GC Panel PC Series
- Product Name: Winmate G-WIN ARM GC Panel PC Series
- Screen Size: 7″ – 24″ projected capacitive multi-touch display
- CPU: ARM A78 + A55 processor for high performance with low power consumption
- RAM: Integrated memory designed for reliable embedded computing
- Expansion: Multiple I/O including USB Type-C, USB 2.0, RS232, and RJ45 LAN
- Other Features: IP65 front protection, true-flat design, fanless cooling, Android & Linux OS support
Description
The Winmate GC-Series of ARM Panel PCs from BVM is engineered for superior energy efficiency and modern application deployment. These panel PCs leverage the powerful and low-power ARM A78 + A55 big.LITTLE architecture, making them the perfect solution for thermally constrained environments. Each unit features a brilliant true-flat PCAP touchscreen and a silent, fanless design. The front bezel is IP65-rated for protection against dust and liquids. With native support for modern Android and Linux operating systems, the GC-Series ARM Panel PCs are perfect for IoT gateways, smart access control, and interactive information systems.
Key Features
- Modern ARM Architecture: The efficient ARM A78 + A55 processor delivers an excellent balance of high performance and ultra-low power consumption.
- Front IP65 & True-Flat Design: The sleek, edge-to-edge design is easy to clean and sealed to IP65 standards, making it suitable for a wide range of environments.
- Fanless & Low Power: The inherent efficiency of the ARM processor allows for a completely fanless design, ensuring silent and reliable long-term operation.
- Android & Linux Ready: Optimized for modern embedded applications with full support for Android or Linux operating systems.
- Versatile Connectivity: A rich selection of I/O, including USB Type-C, USB 2.0, RS232, and RJ45 LAN, provides flexible options for connecting peripherals.
Disclaimer: The information provided on this page for guidance purposes only. For complete and detailed specifications, including all configurations and certifications, please contact us to request the official product datasheets.
Available Models
| Model | Screen Size | Resolution | CPU | Key I/O |
| W07MG3S-GCT1/GCO1 | 7″ | 1024 x 600 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
| W10MG3S-GCH2 | 10.1″ | 1280 x 800 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
| R10MG3S-GCT2 | 10.4″ | 1024 x 768 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
| R12MG3S-GCM2 | 12.1″ | 1024 x 768 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
| W12MG3S-GCB1 | 12.3″ | 1920 x 720 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
| R15MG3S-GCC3 | 15″ | 1024 x 768 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
| R19MG3S-GCM1 | 19″ | 1280 x 1024 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
| W22MG3S-GCA3 | 21.5″ | 1920 x 1080 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
| W24MG3S-GCA2 | 24″ | 1920 x 1080 | ARM A78+A55 | USB-C, 2x USB, RS232, RJ45, Micro SD |
Specification Comparison
The information provided in this table is for guidance. For complete and detailed specifications, including all models, configurations and certifications, please contact us to request the official product datasheet.
| Feature | 7.0″ Model | 21.5″ Model |
| Display | ||
| Touch / Glass | PCAP Multi-Touch | PCAP Multi-Touch |
| Size | 7.0 inches | 21.5 inches |
| Resolution | 1024 x 600 | 1920 x 1080 |
| Panel Brightness | 320 nits | 250 nits |
| Contrast Ratio | 1000:1 | 3000:1 |
| View Angles | 75, 75, 75, 70 | 89, 89, 89, 89 |
| Active Area (mm) | 153.6 x 90 | 476.64 x 268.11 |
| System | ||
| Processor | ARM 2xA78 @ 2.0GHz + 4xA55 @ 2.0GHz | ARM A53 Quad Core @ 2.0GHz |
| Memory | 4GB LPDDR4 | 4GB LPDDR4 |
| Storage | Onboard 32GB eMMC | Onboard 32GB eMMC |
| Operating System | Android 13 Linux Yocto/Ubuntu (Optional) |
Android 11 (Upgradable) Linux Yocto/Ubuntu (Optional) |
| WLAN / Bluetooth | Optional | Optional |
| Environment | ||
| Operating Humidity | 10% to 90% (Non-Condensing) | 10% to 90% (Non-Condensing) |
| Operating Temp. | 0°C to 50°C | 0°C to 50°C |
| Storage Temp. | -20°C to 60°C | -20°C to 60°C |
| Shock / Vibration | MIL-STD-810H Compliant | MIL-STD-810H Compliant |
| IP Rating | Front IP65 | Front IP65 |
| I/O Ports | ||
| USB Port | 2x USB 2.0 (Type A), 1x USB-C (OTG) | 2x USB 2.0 (Type A), 1x Micro USB (OTG) |
| Serial Port | 1 x RS232/422/485 | 1 x RS232/422/485 |
| LAN | 1 x LAN 10/100/1000 Mbps | 1 x LAN 10/100/1000 Mbps |
| Video | 1 x Micro HDMI (Optional) | 1 x Micro HDMI (Optional) |
| Audio | 1 x Speaker (Optional) | 2 x Speaker (Optional) |
| SD Card Slot | 1 x Micro SD Card Slot | 1 x Micro SD Card Slot (Max 32GB) |
| Power | ||
| Power Rating | 12V DC with Terminal Block | 12V DC with Terminal Block (9-36V Opt.) |
| Adapter | 12V 50W | 12V 84W |
| Mechanical | ||
| Dimensions (mm) | 189.4 x 145.4 x 39.8 | 530 x 322 x 55 |
| Cut Out (mm) | 177 x 131 | 457 x 250 |
| Mounting | VESA Mount / Panel Mount | VESA Mount / Panel Mount |
| Enclosure | Aluminium | Metal Housing with Plastic Bezel |
| Cooling System | Fanless Design | Fanless Design |
| Controls & Accessories | ||
| Button | 1 x Power Button (Optional) | 1 x Power Button (Optional) |
| Included | Quick Start Guide, AC Adapter, Power Cord, Terminal Block Connector | Quick Start Guide, AC Adapter, Power Cord, Terminal Block Connector |
| Certification | ||
| Certifications | CE, FCC | CE, FCC |
Ordering Information
As an official Winmate UK distributor, BVM offers a wide range of industrial Panel PCs. The products shown on our site represent only a small selection of Winmate’s extensive portfolio, which includes industry-specific all-in-one computers for military, medical, and marine applications. Our team can help you explore the full range to find the ideal solution for your project.
For full technical specifications, current pricing, and estimated lead times, please contact us.
We are ready to provide official datasheets and pricing for any of the models listed above.
To request a formal quote or discuss your specific requirements – including processor performance, memory, storage, I/O configuration, operating system, or customisations – our knowledgeable sales team is ready to provide expert guidance and ensure you select the most suitable Panel PC for your application.
Need a Custom Solution? If you can’t find an off-the-shelf system that meets your specific requirements, speak with our in-house design team. We specialize in designing and building new products from start to finish, ensuring the final solution is a perfect fit for your application.
Reach our expert sales team on 01489 780144 or email us at sales@bvmltd.co.uk or send a quote request via this page.
