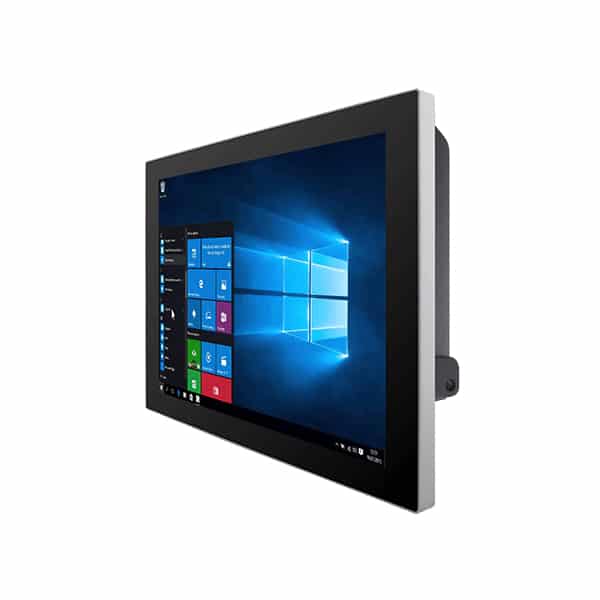

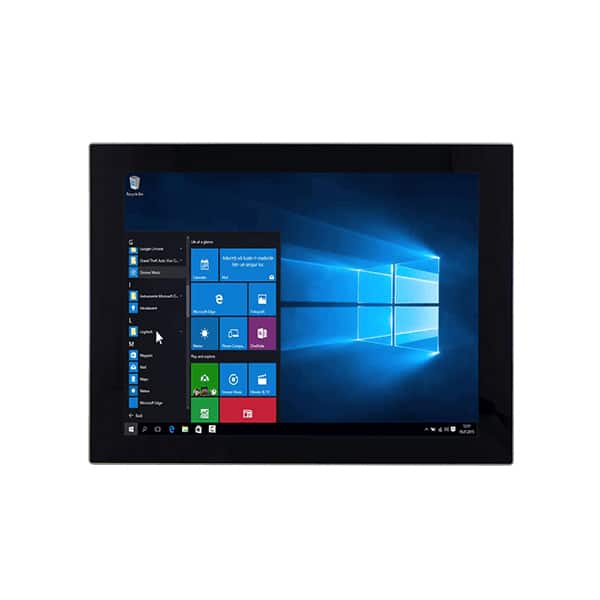

Winmate 7″ – 24″ G-WIN X86 GC Panel PC Series

Product Name: Winmate G-WIN X86 GC Panel PC Series
Screen Size: 7″ – 24″ projected capacitive multi-touch display
CPU: Intel 12th Gen Core or Celeron N6211 for energy-efficient applications
RAM: DDR4 memory options to support demanding industrial workloads
Expansion: Multiple I/O ports including USB 3.2, LAN, and serial interfaces
Other Features: IP65 front protection, true-flat design, fanless cooling system, Windows & Linux OS support

SKU: G-WIN X86 GC Series Categories: INDUSTRIAL PANEL PCS, Military and Defence Panel PCs - MIL-STD, Rugged Panel PCs Tags: Intel Alder Lake, Intel Elkhart Lake, IP65, MIL-STD, OS: Windows, OS: Windows 11, Powered by Intel, Rugged, Touchscreen, TPM 2.0, Wide Temp Brand: Winmate Inc

Description

The Winmate G-WIN GC-Series of x86 Panel PCs, available from BVM, delivers powerful and reliable computing for demanding industrial applications. Powered by high-performance 12th Gen Intel® Core™ and efficient Celeron® (Elkhart Lake) processors, these panel PCs offer excellent performance and compatibility with Windows and Linux. The series features a brilliant, edge-to-edge true-flat screen with responsive PCAP multi-touch. Housed in a rugged, fanless chassis with a front IP65-rated bezel, these panel PCs are built to withstand dust and water, making them the ideal choice for HMI, factory automation, and public-facing kiosk applications.

Key Features

High-Performance Intel Processors: Choose from 12th Gen Intel Core processors for demanding tasks or the efficient Celeron N6211 for low-power applications.
Front IP65 & True-Flat Design: The easy-to-clean, edge-to-edge front surface is sealed to IP65 standards, protecting against dust and water ingress.
Fanless Cooling System: A fanless design ensures silent, reliable 24/7 operation with minimal maintenance, even with powerful Core™ i-series CPUs.
Rich Connectivity: A comprehensive set of I/O ports, including high-speed USB 3.2, multiple LAN ports, and serial communication, allows for easy system integration.
Windows & Linux Ready: Designed for seamless integration into existing systems with full support for popular operating systems like Windows 10/11 IoT and Linux.

Disclaimer: The information provided on this page for guidance purposes only. For complete and detailed specifications, including all configurations and certifications, please contact us to request the official product datasheets.

Available Models

Model	Screen Size	Resolution	CPU	Key I/O
W07IE3S-GCT1/GCO1HB	7″	1024 x 600	Intel® Celeron® N6211	2x LAN, 1x COM, 2x USB 3.2, 1x HDMI
W10IE3S-GCH2	10.1″	1280 x 800	Intel® Celeron® N6211	Varies by configuration
R12IE3S-GCM2(HB)	12.1″	1024 x 768	Intel® Celeron® N6211	2x LAN, 1x COM, 2x USB 3.2, 1x HDMI
W12IE3S-GCB1	12.3″	1920 x 720	Intel® Celeron® N6211	Varies by configuration
R15IE3S-GCC3(HB)	15″	1024 x 768	Intel® Celeron® N6211	2x LAN, 1x COM, 2x USB 3.2, 1x HDMI
R19IAD7T-GCM1	19″	1280 x 1024	12th Gen Intel® Core™ i3/i5/i7/i9	4x USB 3.2, 2x Serial Ports
R19IE3S-GCM1	19″	1280 x 1024	Intel® Celeron® N6211	Varies by configuration
W22IAD7T-GCA3	21.5″	1920 x 1080	12th Gen Intel® Core™ i3/i5/i7/i9	4x USB 3.2, 2x Serial Ports
W22IE3S-GCA3	21.5″	1920 x 1080	Intel® Celeron® N6211	Varies by configuration
W24IAD7T-GCA2	24″	1920 x 1080	12th Gen Intel® Core™ i3/i5/i7/i9	4x USB 3.2, 2x Serial Ports
W24IE3S-GCA2	24″	1920 x 1080	Intel® Celeron® N6211	Varies by configuration

Specification Comparison

The information provided in this table is for guidance. For complete and detailed specifications, including all models, configurations and certifications, please contact us to request the official product datasheet.

Feature	7.0″ Model	21.5″ Model
Display
Touch / Glass	PCAP Multi-Touch	PCAP Multi-Touch
Size	7.0 inches	21.5 inches
Resolution	1024 x 600	1920 x 1080
Panel Brightness	320 nits	250 nits
Contrast Ratio	1000:1	3000:1
View Angles	75, 75, 75, 70	89, 89, 89, 89
Active Area (mm)	153.6 x 90	476.64 x 268.11
System
Processor	Intel® Celeron® N6211 (up to 3.0GHz)	Intel® Celeron® N6211 (up to 3.0GHz)
Memory	4GB DDR4 (8GB / 16GB Optional)	4GB DDR4 (8GB / 16GB Optional)
Storage	128GB M.2 SSD (256GB / 512GB Optional)	128GB M.2 SSD (256GB / 512GB Optional)
Ethernet Controller	2 x Intel® Ethernet Controller	2 x Intel® Ethernet Controller
Security	TPM 2.0	TPM 2.0
Operating System	Windows 10/11 IoT, Win 11 Pro, Linux (Optional)	Windows 10/11 IoT, Win 11 Pro, Linux (Optional)
Environment
Operating Humidity	10% to 90% (Non-Condensing)	10% to 90% (Non-Condensing)
Operating Temp.	0°C to 50°C	0°C to 50°C
Storage Temp.	-20°C to 60°C	-20°C to 60°C
Shock	MIL-STD-810G Compliant	MIL-STD-810G Compliant
Vibration	MIL-STD-810G Compliant	MIL-STD-810G Compliant
IP Rating	Front IP65	Front IP65
I/O Ports
USB Port	2 x USB 3.2 Gen2 x1 (Type-A)	2 x USB 3.2 Gen2 x1 (Type-A)
Serial Port	1 x RS232/422/485	1 x RS232/422/485
LAN	2 x 2.5 Giga LAN RJ45	2 x 2.5 Giga LAN RJ45
Video	1 x HDMI 2.0 (Optional)	1 x HDMI 2.0 (Optional)
Power
Power Rating	12V DC in	12V DC in
Mechanical
Dimensions (mm)	189.4 x 145.4 x 39.5	530.2 x 321.7 x 54.9
Mounting	VESA Mount / Panel Mount	VESA Mount / Panel Mount
Enclosure	Metal Housing with Aluminium Bezel	Metal Housing with Plastic Bezel
Cooling System	Fanless Design	Fanless Design
Controls & Accessories
Buttons	1 x Power Button, 1 x Reset Button	1 x Power Button, 1 x Reset Button
Included Accessories	User Manual, AC Adapter, Power Cable	User Manual, AC Adapter, Power Cable
Certification
Certifications	CE, FCC	CE, FCC

Ordering Information

As an official Winmate UK distributor, BVM offers a wide range of industrial Panel PCs. The products shown on our site represent only a small selection of Winmate’s extensive portfolio, which includes industry-specific all-in-one computers for military, medical, and marine applications. Our team can help you explore the full range to find the ideal solution for your project.

For full technical specifications, current pricing, and estimated lead times, please contact us.
We are ready to provide official datasheets and pricing for any of the models listed above.

To request a formal quote or discuss your specific requirements – including processor performance, memory, storage, I/O configuration, operating system, or customisations – our knowledgeable sales team is ready to provide expert guidance and ensure you select the most suitable Panel PC for your application.

Need a Custom Solution? If you can’t find an off-the-shelf system that meets your specific requirements, speak with our in-house design team. We specialize in designing and building new products from start to finish, ensuring the final solution is a perfect fit for your application.

Reach our expert sales team on 01489 780144 or email us at sales@bvmltd.co.uk or send a quote request via this page.
