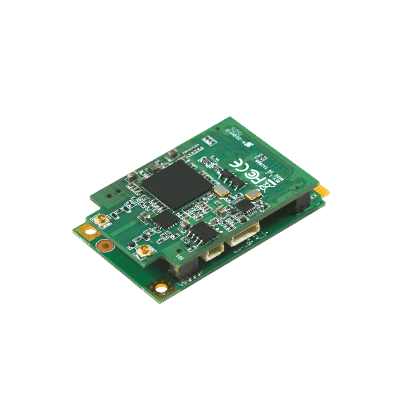

YUAN – SC5C0N1 MC SDI – Mini PCIe – HD Capture Solution – 1 Channel SDI 1080P60 H.264
Yuan – SC5C0N1 MC SDI – Mini PCIe – HD Capture Solution – Hardware Compression
Description
| Model | SC5C0N1 MC SDI |
|---|---|
| Max. FPS | 1920×1080p@60/50fps in → 1920×1080p@60/50fps out |
| Recording Mode | Hardware Compression, Real-Time Mode |
| Dimension | 30×50.95 ( mm ) |
| Interface | Minicard ( PCIe×1 ) |
| Video Input | 1×SDI |
| Display Video Format | YV12, NV12, YUY2, RGB24, RGB32 |
| Video RAW Data Resolution | 3G-SDI 1920×1080p@60/50fps HD-SDI SD-SDI |
| Recording Video Format | H.264 ( Hardware Compression ) |
| Recording Video Resolution | 3G-SDI 1920×1080p@60/50fps HD-SDI SD-SDI |
| Audio Input | 1×SDI Embedded Audio A Pair of RCA Audio Connector |
| Audio Format | Stereo / 16-bit / 32000 ~ 48000Hz |
| SDK | Support API : DirectShow, V4L2, FFmpeg, Gstreamer Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi |
| System Requirement | |
| OS Support | Windows 7 / Windows 8 / Windows 8.1 / Windows 10 Linux 2.6.14 or Higher ( 32-bit and 64-bit ) |
