Asrock Mini PC AMD Ryzen Embedded R1000 (R1606G) – iBOX-R1000M

Compare

Asrock – iBOX-R1000M – Mini PC is Powered by AMD Ryzen Embedded R1000 (R1606G) – AMD – Ryzen – R1606G – 2.6Ghz – Dual Core – 2400Mhz DDR4 – M.2 – HDMI DP

Description


THE WORLD’S FIRST AMD-POWERED 4X4 SOLUTION: iBOX-R1000

The iBOX-R1000, a turn-key rugged embedded PC built to be flexible and adaptable to a wide range of industry applications, including AI edge computing, vision applications and industrial IoT solutions.

iBOX-R1000

The iBOX-R1000 is the first AMD-powered 4″x4″ form factor solution in the world. It is a cost-effective and high-performance embedded, fanless computer for industrial applications powered by the robust AMD RyzenTM Embedded R1000 SoC. It runs on Microsoft Windows 10 and Linux kernel 4.18 and above. The Ryzen Embedded R1000 SoC supports dual channel DDR4 2400MHz and also ECC memory SO-DIMM up to 32GB. There are two ports for DisplayPort 1.4 and one for HDMI 2.0 output that can display three separate screens at the same time or be configured to one large screen. In addition, 4K video output is supported.

ASRock Industrial’s iBOX-R1000 comes in a ruggedized, metal chassis and employs a 25W fanless design for the toughest environments up to 50°C. It has two RJ45 Gigabit Ethernet ports, one USB2.0 and three USB3.1 connectors, one COM port for RS-232/422/485 and a power jack for the 12V adapter (included). LEDs indicate power on/off and HDD activity.

Inside the housing, there is one M.2 (Key M) to support SSD (2242 & 2260), one M.2 (Key E) 2230 for WiFi and Bluetooth, and one 2.5″ HDD/SSD space.



Overview

  • AMD Ryzen R1000 Series
  • Supports Dual Channel DDR4 SO DIMM 2400MHz, up to 32GB
  • 2 x Displayport, 1 x HDMI
  • 3 x USB 3.1, 2 x USB 2.0, 1 x COM
  • 1 x M.2 KEY M, 1 x M.2 KEY E
  • 2 x Realtek LAN
  • 12V DC-In



iBOX-R1000-3

Specification



Processor System
CPU
Ryzen R1000 Series
iBOX-R1000M R1606G, DC, 2.6/3.5GHz
iBOX-R1000VR1505G, DC, 2.4/3.3GHz
Memory
2 x DDR4 2400MHz up to 32GB
Chipset
N/A
Graphic
AMD Radeon Vega Graphics
LAN Chipset
2 x Realtek RTL8111G
Watch Dog
256 Segments, 0,1,2…255 Sec/min
Storage
Type
1 x 2.5″ HDD/SSD

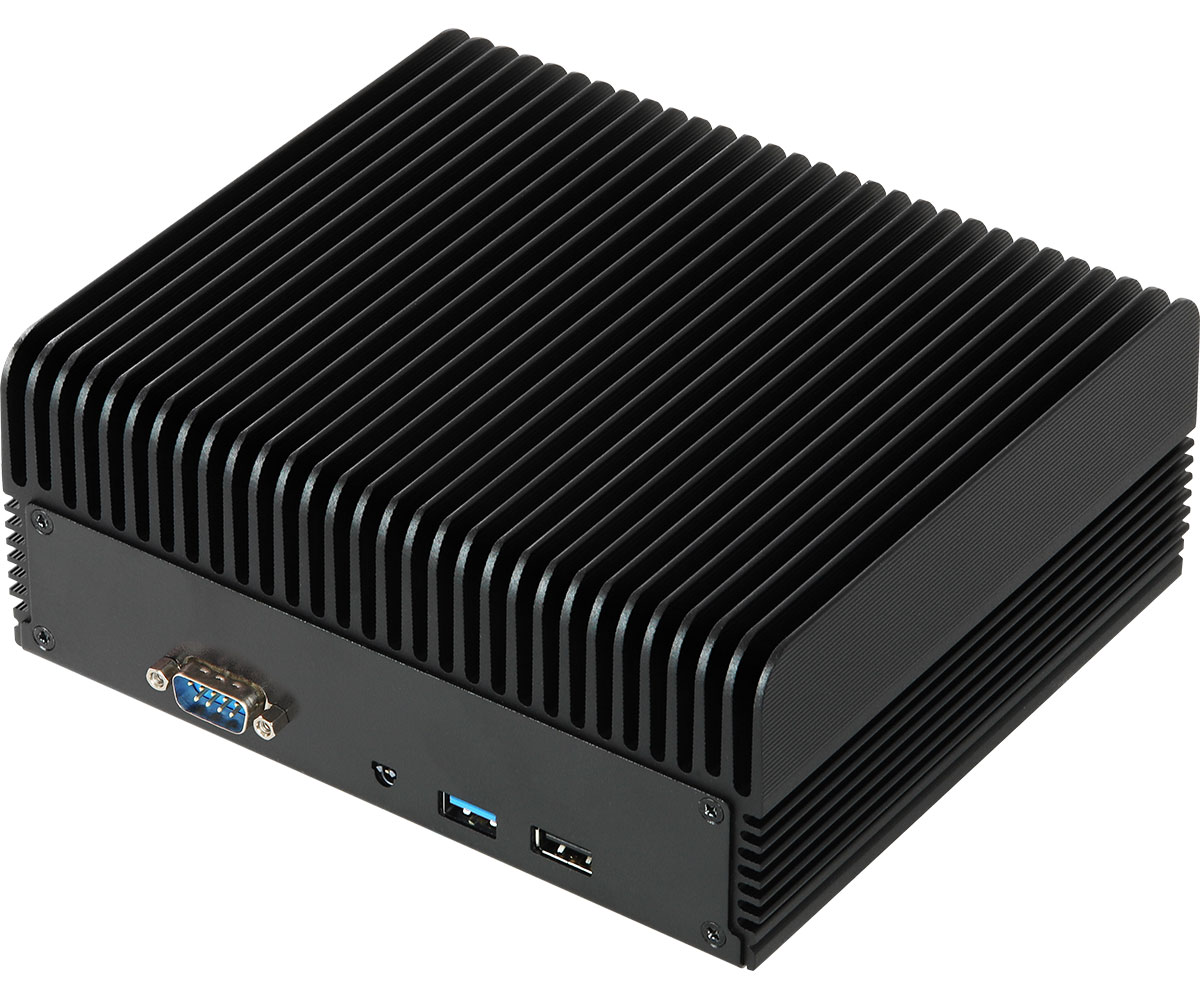

Front I/O
Front USB
1 x USB3.1, 2 x USB 2.0
Front Serial
1

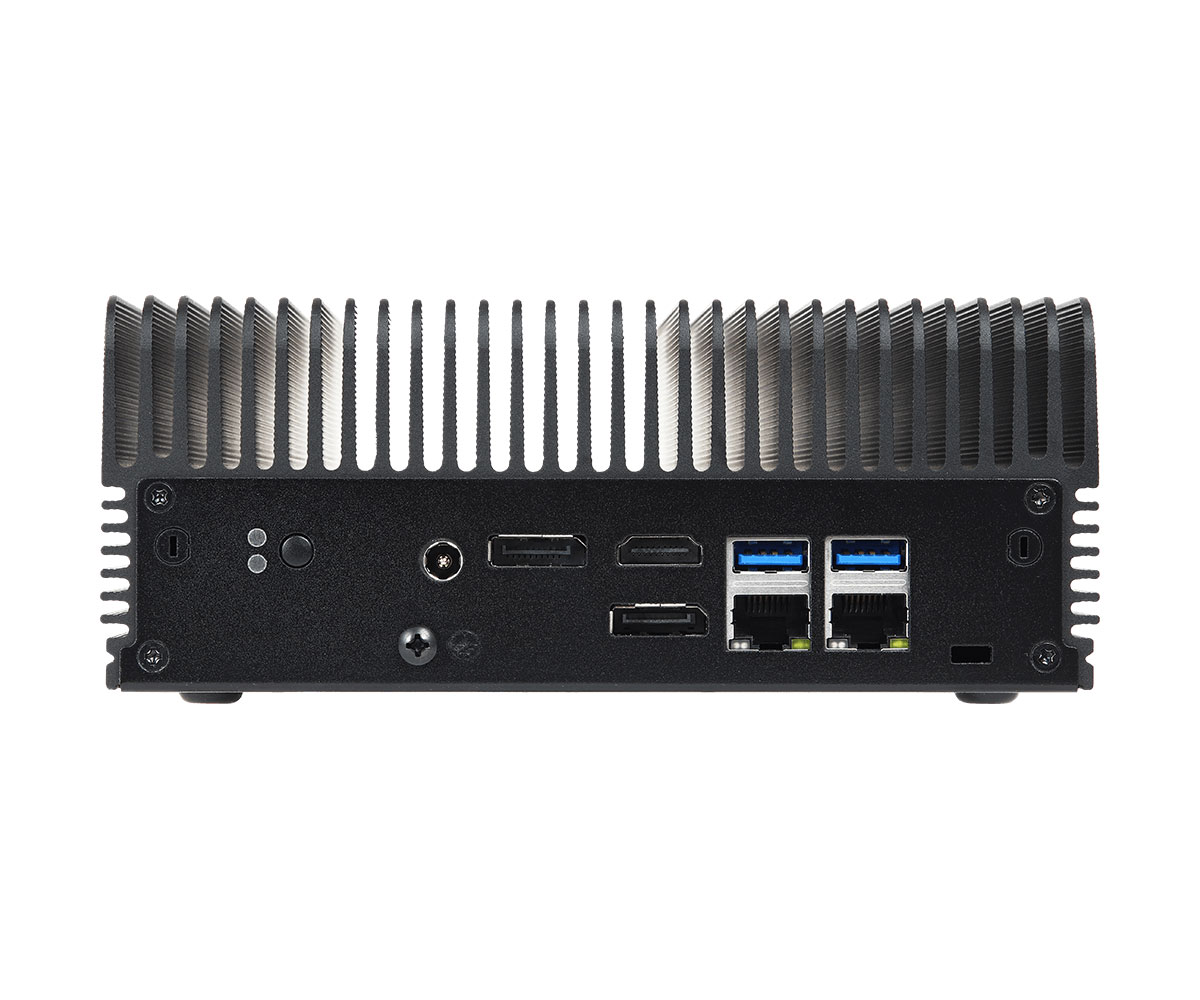

Rear I/O
HDMI
1
DisplayPort
2
Ethernet
2
USB
2 x USB 3.1
Audio
N/A
Serial
N/A
Environment
Operating Temp
0℃~50℃
Storage Temp
-40℃~85℃
Humidity
10%~90%
Mechanical
Material
Top cover -aluminum extrusion/ Basemetal
Dimension
171.8 x 150 x 69.8mm
Weight
1kg
Mounting
Wall & VESA mounting bracket
Others
OS Support
Windows 10
Certifications
CE, FCC Class A



iBOX-R1000-3


Datasheet

Download

If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can design a new product from start to finish.



Design | Develop | Test | Manufacture

Here’s a selection of our design, manufacturing

& associated services: –



Design to Order: OEM/ODM Embedded Product Design Services

For customers designing a brand-new product from scratch or working with an existing prototype.DesignToOrder

  • FREE Pre-design / Pre-sales advise
  • Prototyping – Custom PC Design, Custom Panel PC, Custom Racks or Custom Peli Case PC
  • Prototyping pre checks (chargeable one-time fee for existing prototype)
    • Hardware compatibility
    • Thermal testing
    • Software compatibility
  • Custom PCB / Board Design
  • Custom Chassis Design
  • Custom Cables
  • Custom Back Panels and Faceplates
  • Custom Cooling
  • Custom Metal Work (internal brackets, mounting brackets)
  • Touchscreen Integration and Display Enhancements
  • Software – Custom OS Image

Build to Order: Embedded System Integration and Customisation Services​

Take an existing system and we can:BuildToOrder

  • Custom specification (CPU, Ram, I/O, Storage)
  • Chassis customisation and branding
  • Custom BIOS
  • Software – Custom OS Image
  • Custom Packaging and branding
  • Integrating newly designed or existing hardware into a larger system

Build to order Racks and Towers, Peli Case PCs and Mini-ITX PCs

Windows IoT and Windows 10 Embedded: Integration and Embedded Software Services

Porting, Integration & DeploymentEmbeddedSoftware

  • Windows image capture from customers HDD
  • Linux image capture from customers HDD
  • Windows / Linux Deployment from customers image
  • Custom Windows images, create and deploy
  • Update management
  • Custom Linux and Android images?
  • Custom BIOS

Manufacturer : Asrock

CPU

  • Powered By : AMD
  • CPU Family : AMD Ryzen
  • CPU Generation : Ryzen R-Series
  • CPU Model : R1606G
  • CPU Speed : 2.6Ghz
  • CPU Cores : Dual Core

Memory

  • Memory Installed :
  • Memory Slots : 2
  • Memory Type : 2400Mhz DDR4

I/O and Expansion

  • Expansion Slots : M.2
  • LAN Ports : 2
  • Serial Ports : 1
  • USB 2 Ports : 2
  • USB 3 Ports :
  • USB 3.1 Ports : 3
  • Video Output : DisplayPort, HDMI
  • Multi Display : Triple Display
  • Wireless Connectivity :

Operating System

  • OS : Windows

Certifications

  • Certifications :

Industry

  • Industry : Digital Signage, Gaming and Casino, Industrial Automation and Control, Medical, Military, Transport - Road, Transport and Smart City

Features

  • 24/7 Use :
  • 4G-GPS :
  • Artificial Intelligence Use : Artificial Intelligence, Machine Learning, Machine Vision
  • ATEX :
  • High Performance :
  • Industrial :
  • In-Vehicle :
  • IoT : Yes
  • IP Rating :
  • Low Powered :
  • Mini-ITX :
  • Multi Displays : Triple
  • NUC : Yes
  • Other Features :
  • PoE :
  • Rugged :
  • Ryzen : Yes
  • System Type : Box PC
  • Touchscreen :
  • Whiskey Lake :
  • Wide Temp :
