Winmate 15 - 32" PCAP Rack Mount MIL-STD Certified Defence Displays

Winmate 15 – 32″ PCAP Rack Mount MIL-STD Certified Defence Displays

Product Name: Winmate PCAP Rack Mount MIL-STD Certified Defence Displays
Screen Size: 15″, 17″, 19″, 21.3″, 21.5″, 24″, 32″
Resolution: 1024×768, SXGA (1280×1024), Full HD (1920×1080) depending on model
Features: MIL-STD-810G/461E certified for durability in shock, vibration, and EMI/EMC environments, rack mount design with VESA support, PCAP multi-touch for precision control, MIL-DTL-38999/1 power connector, versatile AC 100–240V or optional 9–36V DC input, and OSD controls for easy display adjustments.

SKU: PCAP Rack Mount Categories: MIL-STD Defence Displays, Military and Defence Displays - MIL-STD-810 and MIL-STD 461 Tags: 9~36V, MIL-STD, Rugged, Touchscreen Brand: Winmate Inc

Description

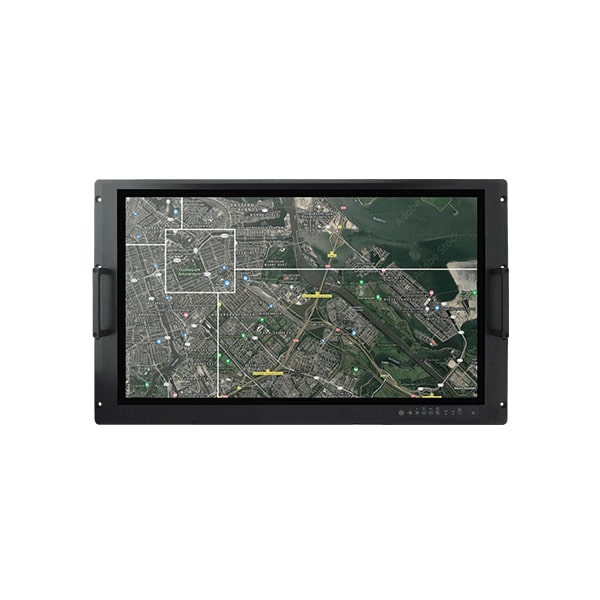

Engineered for the rigorous demands of the modern command centre, Winmate’s PCAP Rack Mount Defence Displays deliver uncompromising performance and durability. This series is fully compliant with MIL-STD-810G and MIL-STD-461E standards, ensuring reliability in the harshest operational environments. Featuring responsive PCAP multi-touch technology and a versatile rack mount design, these displays provide intuitive control and seamless integration into military vehicles and command-and-control systems. With a comprehensive range of sizes—from the 15-inch R15L600-MLA3FP and 17-inch R17L100-MLA1FP to the expansive 32-inch W32L100-MLA3FP—this series offers the perfect fit for any defence application.

Key Features

MIL-STD-810G/461E Certified: Proven to withstand extreme conditions, including shock, vibration, and temperature, while meeting strict standards for EMI/EMC.
Intuitive PCAP Multi-Touch: A highly responsive and accurate projected capacitive touchscreen allows for precise, multi-finger control, essential for complex applications.
Flexible Mounting: The standard rack mount mechanical design ensures easy installation into existing systems, with VESA mount support for added versatility.
Defence-Grade Connectivity: Equipped with a robust MIL-DTL-38999/1 power connector to guarantee secure and reliable power delivery in critical situations.
Versatile Power Options: Supports universal AC 100240V input, with an optional wide-range DC 936V input to suit various mobile and field applications.
User-Friendly Controls: Convenient on-screen display (OSD) controls allow for quick adjustments to brightness, contrast, and other display settings.

Specifications

Feature	R15L600-MLA3FP	R17L100-MLA1FP	R19L100-MLA3FP	R21L100-MLM1FP	W22L100-MLA3FP	W24L100-MLA2FP	W32L100-MLA3FP
Screen Size	15″	17″	19″	21.3″	21.5″	24″	32″
Resolution	1024 x 768	1280 x 1024	1280 x 1024	1600 x 1200	1920 x 1080	1920 x 1080	1920 x 1080
Touch Type	PCAP Multi-Touch	PCAP Multi-Touch	PCAP Multi-Touch	PCAP Multi-Touch	PCAP Multi-Touch	PCAP Multi-Touch	PCAP Multi-Touch
Mounting	Rack / VESA	Rack / VESA	Rack / VESA	Rack / VESA	Rack / VESA	Rack / VESA	Rack / VESA
Power Connector	MIL-DTL-38999/1	MIL-DTL-38999/1	MIL-DTL-38999/1	MIL-DTL-38999/1	MIL-DTL-38999/1	MIL-DTL-38999/1	MIL-DTL-38999/1
Power Input	AC 100-240V	AC 100-240V	AC 100-240V	AC 100-240V	AC 100-240V	AC 100-240V	AC 100-240V
DC Input (Opt.)	9-36V	9-36V	9-36V	9-36V	9-36V	9-36V	9-36V

Ordering Information

For pricing, availability, or to discuss custom requirements for the Winmate PCAP Rack Mount Defence Display series, please contact our dedicated sales team. Equip your command-and-control operations with a display built to perform under pressure.
