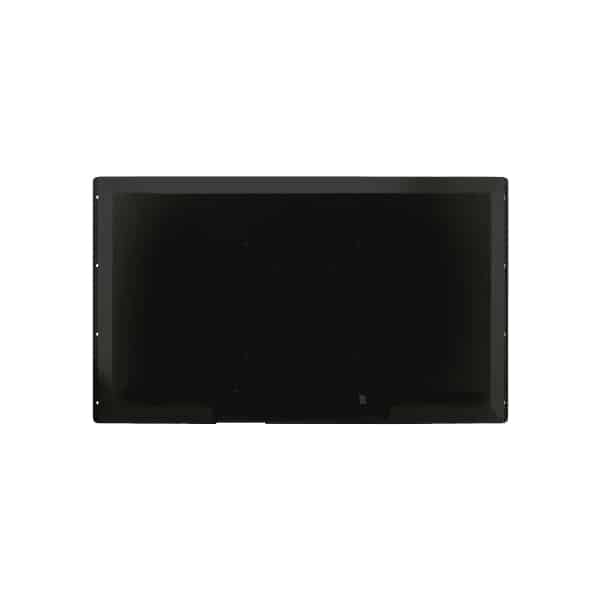

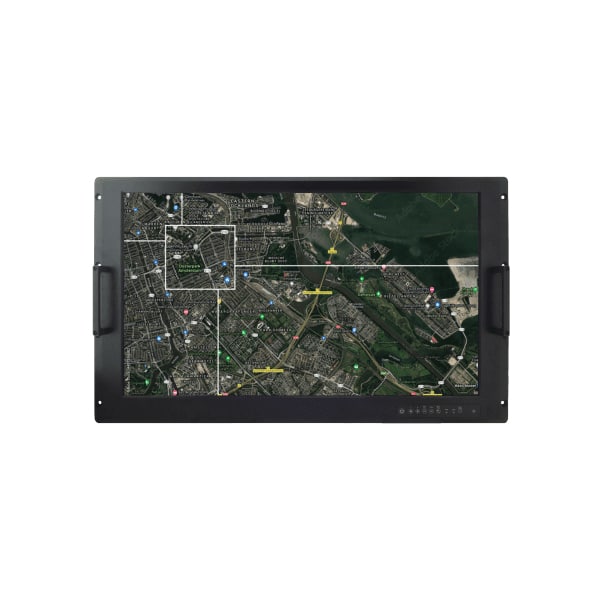

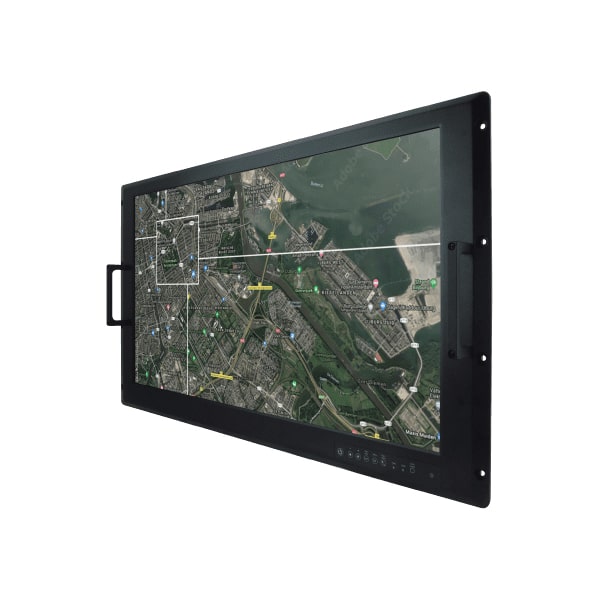

Winmate 17 - 32" Protective Glass Rack Mount MIL-STD Certified Defence Displays

Winmate 17 – 32″ Protective Glass Rack Mount MIL-STD Certified Defence Displays

Product Name: Winmate Protective Glass Rack Mount MIL-STD Certified Displays
Screen Size: 17″, 19″, 24″, 32″
Resolution: 1280 × 1024, WUXGA (1920 × 1200), Full HD (1920 × 1080) depending on model
Features: MIL-STD-810G/461E certified durability, AR protective glass with anti-reflective coating, built-in light sensor for automatic brightness control, rack mount and VESA mount support, defence-grade MIL-DTL-38999/1 power connector, universal AC 100–240V or optional 9–36V DC input, and optional resistive touchscreen.

SKU: Protective Glass Rack Mount Categories: MIL-STD Defence Displays, Military and Defence Displays - MIL-STD-810 and MIL-STD 461 Tags: 9~36V, MIL-STD, Rugged, Touchscreen Brand: Winmate Inc

Description

Winmate’s Rack Mount Defence Displays are engineered to deliver exceptional visual performance and rugged reliability for the most demanding military and defence environments. Certified to meet MIL-STD-810G and MIL-STD-461E standards, these displays are built to operate flawlessly under extreme conditions. Each monitor is equipped with anti-reflective (AR) protective glass, ensuring screen durability and optimal readability in high-glare situations. Available in a range of sizes, including the 17-inch R17L100-RKA1ML, 19-inch R19L100-RKA3ML, 24-inch W24L100-RKS1ML, and 32-inch W32L100-RKA3ML, this series provides a robust and scalable solution for any command-and-control application.

Key Features

MIL-STD Certified Durability: Fully compliant with MIL-STD-810G (environmental) and MIL-STD-461E (EMI/EMC) standards, guaranteeing performance in harsh operational conditions.
AR Protective Glass: Features a durable, anti-reflective glass screen that protects against impact and scratches while significantly reducing glare for clear viewing.
Intelligent Brightness Control: A built-in ambient light sensor automatically adjusts the display’s brightness, ensuring optimal visibility and reducing eye strain in changing light conditions.
Secure Defence-Grade Power: Utilizes a MIL-DTL-38999/1 military-grade power connector for a secure, vibration-proof connection, critical for mobile and field operations.
Flexible Integration: A standard rack mount mechanical design, combined with VESA mount support, allows for easy and versatile installation into consoles, vehicles, and command centres.
Optional Touchscreen: A resistive touch option is available to add hands-on, interactive control for applications requiring direct input

Specifications

Feature	R17L100-RKA1ML	R19L100-RKA3ML	W24L100-RKS1ML	W32L100-RKA3ML
Screen Size	17″	19″	24″	32″
Resolution	1280 x 1024	1280 x 1024	1920 x 1200	1920 x 1080
Protection	AR Protective Glass	AR Protective Glass	AR Protective Glass	AR Protective Glass
Touch (Optional)	Resistive	Resistive	Resistive	Not Specified
Mounting	Rack / VESA	Rack / VESA	Rack / VESA	Rack / VESA
Power Connector	MIL-DTL-38999/1	MIL-DTL-38999/1	MIL-DTL-38999/1	MIL-DTL-38999/1
Power Input	AC 100-240V	AC 100-240V	AC 100-240V	AC 100-240V
DC Input (Opt.)	9-36V	9-36V	9-36V	9-36V

Ordering Information

To learn more about the Winmate Rack Mount Defence Display series or to request a quote, please contact our sales team. We can help you select the right configuration, including optional features, to meet your specific operational needs.
