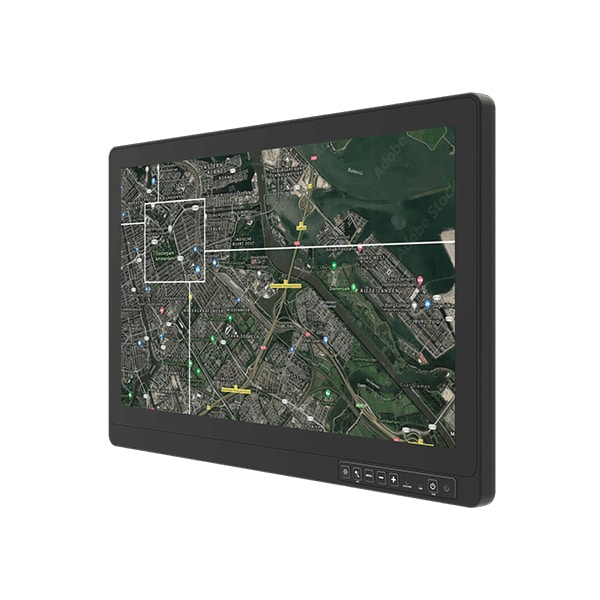

Winmate 8.4 – 21.5″ G-WIN NVIS Rugged MIL-STD-3009 Night Vision Displays
- Product Name: Winmate G-WIN NVIS Rugged MIL-STD-3009 Night Vision Displays
- Screen Size: 8.4″, 10.4″, 15″, 19″, 21.5″
- Resolution: 1024×768, SXGA 1280×1024, Full HD (1920×1080) depending on model
- Features: MIL-STD-3009 NVIS compliance for night vision, dual-mode day/night operation, rugged IP-rated aluminium housing with fanless design, wide operating temperature range, full IP67 protection on select models, touch options (5-wire resistive or P-CAP), and flexible 9–36V DC power input with optional ignition control.
Description
Winmate’s G-WIN NVIS Display Series includes models R08L100-VMN1-NI, R10L100-VMN1-NI, R15L100-67N1-NI, R19L100-67N1-NI, and W22L100-67N1-NI, offering screen sizes from 8.4″ up to 21.5″. Depending on the model, resolutions include XGA (1024×768), SXGA (1280×1024), and Full HD (1920×1080), providing sharp and reliable visuals for a wide range of mission-critical and industrial applications.
Designed to perform in demanding conditions, the G-WIN NVIS Display Series delivers MIL-STD-3009 NVIS compliance for seamless night vision integration, dual-mode day/night brightness functionality, and rugged aluminum construction with fanless cooling. The series features wide operating temperature ranges, IP-rated protection against dust and water (with selected models offering full IP67 immersion resistance), as well as advanced touchscreen options including 5-wire resistive for gloved use or projected capacitive multi-touch. Flexible 9–36V DC power input with optional ignition control makes the G-WIN NVIS Display Series an ideal choice for vehicle, defense, and aerospace environments.
Key Features
- MIL-STD-3009 NVIS Compliance: Guarantees compatibility with night vision equipment, preventing interference and ensuring operational safety in low-light scenarios.
- Dual-Mode Functionality: Effortlessly switch between a high-brightness day mode and a night vision-compatible NVIS mode for optimal viewing around the clock.
- Rugged and Reliable Construction: Featuring anti-corrosion aluminium housing and fanless designs, these displays are built for durability and silent operation.
- Extreme Environment Ready: With wide operating temperature ranges and IP-rated protection against dust and water, the G-WIN series is proven to perform in challenging conditions. The R15L100-67N1-NI, R19L100-67N1-NI, and W22L100-67N1-NI models offer full IP67-rated protection for total immersion resistance.
- Advanced Touch Technology: Options for responsive 5-wire resistive touch, ideal for gloved use, or projected capacitive (P-CAP) multi-touch for intuitive control.
- Flexible Power Input: A wide range of 9-36V DC power input makes these displays suitable for a variety of vehicular and mobile deployments. An optional ignition control function is also available for enhanced power management in vehicles.
Specifications
 |
 |
 |
 |
 |
|
| R08L100-VMN1-NI | R10L100-VMN1-NI | R15L100-67N1-NI | R19L100-67N1-NI | W22L100-67N1-NI | |
| Screen Size | 8.4″ | 10.4″ | 15″ | 19″ | 21.5″ |
| Resolution | 800 x 600 | 1024 x 768 | 1024 x 768 | 1280 x 1024 | 1920 x 1080 |
| Touch Type | 5-wire Resistive | 5-wire Resistive | P-CAP Multi-Touch | P-CAP Multi-Touch | P-CAP Multi-Touch |
| IP Rating | Front IP65 | Front IP65 | Full IP67 | Full IP67 | Full IP67 |
| Housing | Anti-Corrosion Aluminium | Anti-Corrosion Aluminium | Aluminium Die-Casting | Aluminium Compact Housing | Aluminium Die-Casting |
| Operating Temp. | -10°C to 60°C | -10°C to 60°C | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Power Input | 9-36V DC | 9-36V DC | 9-36V DC | 9-36V DC | 9-36V DC |
Ordering Information
To equip your operations with the unmatched visual performance of the Winmate G-WIN NVIS Display series, please contact our sales team for a quote or further details. Custom configurations and optional features are available to meet your specific mission requirements.
