APLEX ATEX Certified 21.5” i5-6300U IP66 Stainless Steel Panel PC
- Product Name: Aplex AEx-921AP
- Screen Size: 21.5″
- CPU: Intel 6th Gen. Core i5/i3 or Celeron Processors
- RAM: Up to 16GB DDR4 2400MHz
- Expansion: 1 x Mini-PCIe (full size)
- Other features: ATEX Certified, SUS316 Stainless Steel, Total IP66 Grade with M12 Waterproof Connector, Support Projected Capacitive Touch, ATEX Zone2, ATEX Zone 22, IECEx, and C1D2 Certified
Description

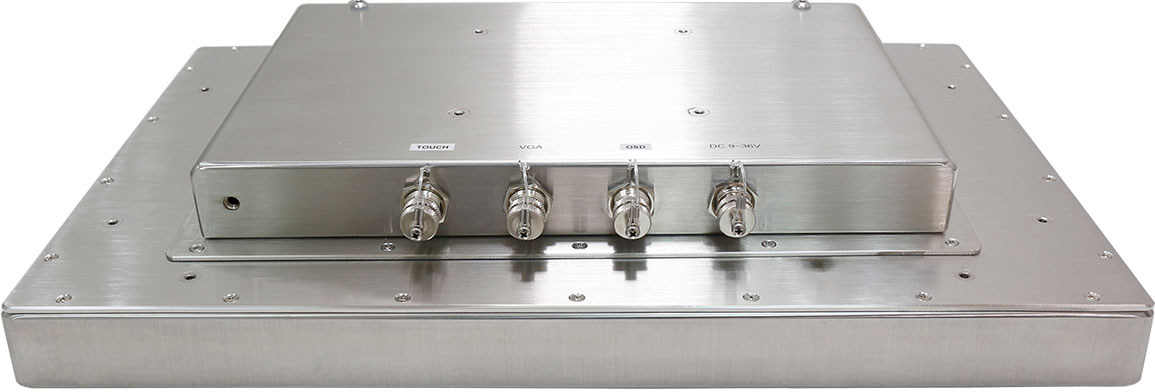

The ATEX Certified AEx series adopt stainless steel SUS316, IP66 dust and water-proof enclosures with M12 connectors, additionally providing the following features :-
Wide range power input (9V~36V DC)
Sunlight readability, up to 1000 nits brightness with AR/AG/Anti-UV glass
Operation with a wide temperature range (-20℃~60℃)
The AEx series is also capable of withstanding vibration, shock & corrosion and can be utilised in the harshest of environments where the presence of volatile gases or vapour substances are unavoidable.
Features
- 21.5″ TFT-LCD
- Intel 6th Gen. Core i5/i3 or Celeron Processors
- SUS316 Stainless Steel
- Total IP66 Grade with M12 Waterproof Connector
- Support Projected Capacitive Touch
- ATEX Zone2, ATEX Zone 22, IECEx and C1D2 Certified
Specification
|
System
|
|
CPU
Onboard 6th Gen Intel Core Core i3/i5, Celeron or Atom processor
|
|
System Chipset
SoC
|
| System Memory
iCore 1 x 260-pin SO-DIMM up to 16GB DDR4 2400MHz |
| System Memory
Celeron 1 x 4Gb DDR3 Atom 1 x 2Gb DDR3 |
|
USB
1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
|
| LAN
2 x M12 8-pin for LAN with waterproof cover and chain |
|
Power
1 x M12 3-pin for DC power connector with waterproof cover and chain
|
| Serial / Parallel
1 x M12 8-pin for COM1, RS-232/422/485,default RS-232, with waterproof cover and chain |
|
Storage Space
|
|
HDD/SSD
1 x 2.5” SATA HDD or SSD space, 1 x mSATA space
|
|
Expansion
|
|
Expansion slot
1 x Mini-PCIe (full size)
|
|
Display
|
|
LCD Size 15″ TFT-LCD
|
|
Max. resolution 1024 x 768 (HB 1000nits available)
|
|
LCD Size 15.6″ TFT-LCD
|
|
Max. Resolution 1280×1024
|
|
LCD Size 19″ TFT-LCD (HB 1000nits available)
|
|
Max. Resolution 1920×1080
|
|
LCD Size 21.5″ TFT-LCD
|
|
Max. resolution 1920×1080
|
|
Touch Screen(Option)
|
|
Touch Type
Projected Capacitive Touch
|
|
Interface
USB
|
| Light transmission(%)
90% |
|
Power
|
|
Power input
DC 9~36 V
|
|
Mechanical
|
|
Construction
316 Stainless Steel Chassis
|
|
IP rating
Total IP66 6 sides
|
| Mounting
VESA 100 x100 / Panel Mounting |
|
Dimension (mm)
99 x 324 x 70
|
| Net weight (Kgs)
9.7 |
|
Environment
|
|
Operating temperature (°C)
-20~60°C
|
|
Storage temperature (°C)
-30~70°C
|
| Storage humidity
10 to 90%@ 40°C, non-condensing |
|
Certification
CE / FCC Class A; ATEX Zone2 Ex nA ic IIC T4 Gc; Class I, Division2, Group ABCD T4; ANSI/ISA 12.12.01-2013; CSA Std. C22.2 No213-1987
|
| Operating System Support
Windows embedded 7 Windows embedded 8.1 Windows 10 IoT ENT LTSB |
Ordering Information
| AEX-915APH | 15″ XGA Fanless PC with Intel 6th Core i Processor, High brightness, 1 x SO-DIMM DDR4 slots, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-915AP(H)_V1.3.pdf |
| AEX-815PH | 15″ XGA Fanless PC with Intel N2930 Processor, High brightness, 4GB DDR3L RAM, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-815P(H)_V1.3.pdf |
| AEX-915AP | 15″ XGA Fanless PC with Intel 6th Core i Processor, 1 x SO-DIMM DDR4 slots, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-915AP(H)_V1.3.pdf |
| AEX-815P | 15″ XGA Fanless PC with Intel N2930 Processor, 4GB DDR3L RAM, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-815P(H)_V1.3.pdf |
| AEx-P526-01 | 15″ XGA IP65 Intel Atom D2550 1.8G CPU fan less panel PC, 2GB DDR3 memory, 32G SSD, resistive touch, DC 11~32V power input, 316 stainless steel enclosure | AEx-P526_V1.1.pdf |
| AEX-916AP | 15.6″ Full HD Fanless PC with Intel 6th Core i Processor, 1 x SO-DIMM DDR4 slots, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-916AP_V1.3.pdf |
| AEX-816P | 15.6″ XGA Fanless PC with Intel N2930 Processor, 4GB DDR3L RAM, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-816P_V1.3.pdf |
| AEX-919APH | 19″ SXGA Fanless PC with Intel 6th Core i Processor, High brightness, 1 x SO-DIMM DDR4 slots, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-919AP(H)_V1.3.pdf |
| AEX-819PH | AEX-819PH 19″ XGA Fanless PC with Intel N2930 Processor, High brightness, 4GB DDR3L RAM, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-819P(H)_V1.3.pdf |
| AEX-919AP | 19″ SXGA Fanless PC with Intel 6th Core i Processor, 1 x SO-DIMM DDR4 slots, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-919AP(H)_V1.3.pdf |
| AEX-921AP | 21.5″ FHD Fanless PC with Intel 6th Core i Processor, 1 x SO-DIMM DDR4 slots, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-921AP_V1.3.pdf |
| AEX-821P | 19″ XGA Fanless PC with Intel N2930 Processor, 4GB DDR3L RAM, Projected Capacitive touch, DC 9~36V power input, SS316 | AEx-821P_V1.3.pdf |
BVM Customisation Service
If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.
If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements. Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.
Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.
Design | Develop | Test | Manufacture
With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality
Here’s a selection of our design, manufacturing & associated services: –
|
|
|
ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:
 Testing |
 Materials Management |
 Logistics and Tracking |
 External Manufacturing |
| • Burn in Test • Temp / Thermal Testing • Environmental Testing • Safety Testing • Software Compatibility Test |
• Vendor Selection and Component Procurement • Product Traceability • Obsolescence, End of Life and Last Time Procurement Management • Simple to use on-line RMA System |
• Traceability of Shipments • Product Labelling • OEM/Branded Packaging • System Branding • Custom Labels |
• Surface Mount: – High Speed Placement • Conventional Through Hole Insertion & Assembly • Automated Optical Inspection • Bespoke PCB Test |
Click here to find out more.
Manufacturer : Aplex
Screen
- Screen Size : 21.5"
- Screen Resolution : 1920x1080
- Screen Brightness :
CPU
- Powered By : Intel
- CPU Family : iCore
- CPU Generation :
- CPU Model : i5-6300U
Memory
- Memory Installed :
- Memory Slots : 1
- Memory Type : 2400Mhz DDR4
I/O and Expansion
- Expansion Slots : Mini PCIe, mSATA, SATA
- LAN Ports : 2
- Serial Ports : 1
- USB 2 Ports : 2
- USB 3 Ports :
- USB 3.X / USB C / USB 4.0 Ports :
- Video Output : VGA
- Multi Display :
Operating System
- OS : Windows
Certifications
- Certifications : ATEX Zone 22, ATEX Zone2, C1D2, IECEx
Features
- 5G-4G-GPS :
- Artificial Intelligence Use :
- IP Rating : IP66
- Rugged : Yes
- System Type : Panel PC
- Wide Temp : Yes
