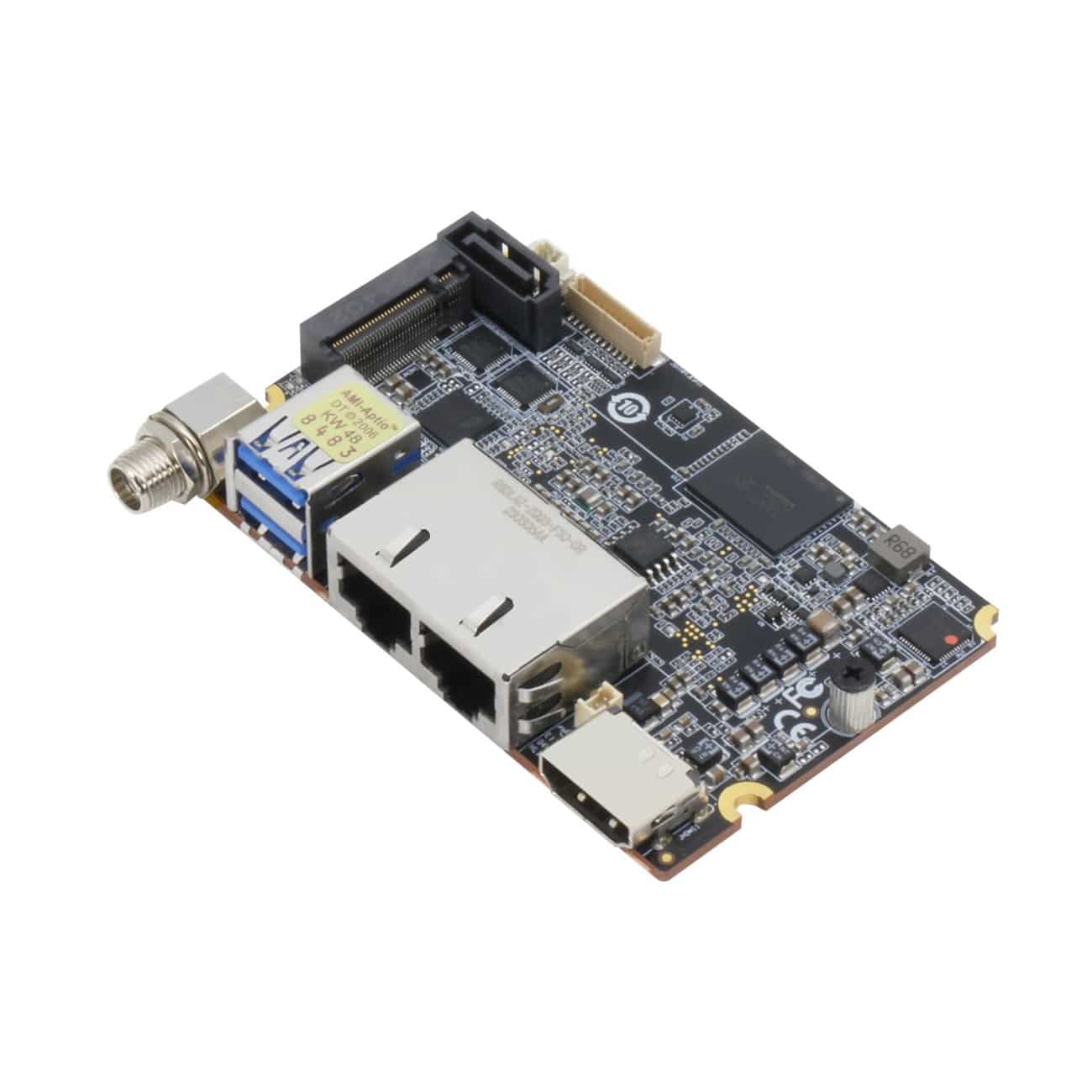

AAEON de next-RAP8 13th Gen i3/i5/i7 1.8″ Single Board Computer

  • Product Name: AAEON de next-RAP8
  • Motherboard Form Factor: 1.8″ Single Board Computer
  • CPU: Onboard 13th Gen Intel Core i3/i5/i7 Processor (TDP 15W)
  • RAM: Onboard LPDDR5x, up to 16GB
  • Expansion: M.2 2280 M-Key (PCIe x2), PCIe Gen 3 x4 via FPC
Clear
ADD TO QUOTE
SKU: de next-RAP8 Category: Tags: , , , , , , , , , , , Brand:

Description

The AAEON de next-RAP8 is a powerful and compact 1.8″ Single Board Computer designed for embedded and edge computing. Powered by 13th Gen Intel Core i3/i5/i7 processors, it features onboard LPDDR5x memory up to 16GB, dual Ethernet including 2.5GbE, multiple USB ports, and flexible expansion via M.2 and PCIe. Ideal for space-constrained industrial applications requiring high performance and connectivity.

Key Features

  • Onboard 13th Gen. Intel Core Series Processor, TDP 15W
  • Onboard LPDDR5x up to 16GB
  • HDMI 1.4b x 1, eDP x 1
  • 2.5GbE RJ45 x 1, GbE RJ45 x 1
  • USB 3.2 Gen 2 x 2, USB 2.0 x 4
  • M.2 2280 M-Key x 1 (PCIe [x2]), PCIe Gen 3 [x4] via FPC x 1
  • DC 12Vin
  • AAEON De Next Series
de next RAP8 1 de next TGU8 4
de next-RAP8 SBC de next-RAP8 + Bracket and Cooler

Specification

Category Specification
SYSTEM
Form Factor 86mm x 55mm, Single Board Computer
CPU 13th Gen Intel® Core™ Processors: i7-1365UE, i5-1335UE, i3-1315UE (up to 15W)
Chipset Integrated with Intel® SoC
Memory Type Onboard LPDDR5x, up to 16GB
BIOS UEFI
Wake on LAN Yes
Watchdog Timer 255 Levels
Security fTPM
RTC Battery Lithium Battery 3V/240mAh
Dimensions (L x W) 86mm x 55mm (3.38” x 2.17”)
OS Support Windows 10 (64-bit), Ubuntu 22.04.3 (Kernel 6.2)
POWER
Power Requirement +12V
Power Supply Type AT/ATX (Default: AT mode)
Connector DC Jack Connector
Power Consumption 38.16W (Typical), 39.16W (Max) with i7-1365UE & 16GB LPDDR4x
DISPLAY
Controller Intel® Iris® Xe
LVDS/eDP eDP 1.4 x 1, up to 3840 x 2160
Display Interface HDMI 1.2a x 1, up to 1920 x 1080 @60Hz
Multiple Display Up to Dual Displays
AUDIO
CODEC —
Audio Interface —
Speaker —
EXTERNAL I/O
Ethernet 1 x GbE (Intel® I219-LM), 1 x 2.5GbE (Intel® I226-LM)
USB USB 3.2 Gen 2 Type-A x 2
Serial Port —
Video HDMI 1.4b x 1
INTERNAL I/O
USB USB 2.0 x 4 (Pin Header)
Serial Port RS-232/422/485 x 2 (Pin Header)
Video eDP x 1
SATA SATA 6Gb/s x 1, +5V SATA Power Connector x 1
Audio —
DIO/GPIO 8-Bit
SMBus/I2C Optional
Touch —
Fan 4-Pin Smart Fan (Cooler version only)
SIM —
Front Panel Power LED, Power Button, Buzzer, Reset Button
Others —
EXPANSION
Mini PCI-E/mSATA —
M.2 M.2 2280 M-Key x 1 (PCIe x2)
PCIe PCIe Gen 3 x4 via FPC
Others —
ENVIRONMENT & CERTIFICATION
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Storage Temperature -40°C ~ 80°C (-40°F ~ 176°F)
Operating Humidity 0% ~ 90% RH, non-condensing
MTBF 1,679,950 hours
EMC CE/FCC Class A

Ordering Information

PART NUMBER DENEXT-RAP8-A10-0001 DENEXT-RAP8-A10-0002 DENEXT-RAP8-A10-0003
CPU Intel® Core™ i7- Intel® Core™ i5- Intel® Core™ i3-
1365UE 1335UE 1315UE
Memory Onboard LPDDR5x Onboard LPDDR5x Onboard LPDDR5x
16GB 16GB 16GB
Display eDP x 1 , eDP x 1 , eDP x 1 ,
HDMI x 1 HDMI x 1 HDMI x 1
Storage SATA 6.0 Gbps x 1 SATA 6.0 Gbps x 1 SATA 6.0 Gbps x 1
LAN 2.5GbE x 1, 2.5GbE x 1, 2.5GbE x 1,
GbE x 1 GbE x 1 GbE x 1
USB USB 3.2 Gen 2 x 2 , USB 3.2 Gen 2 x 2 , USB 3.2 Gen 2 x 2 ,
USB 2.0 x 4 USB 2.0 x 4 USB 2.0 x 4
COM Port RS232/422/485 x 2 RS232/422/485 x 2 RS232/422/485 x 2
Expansion M.2 2280 M-key x 1 , M.2 2280 M-key x 1 , M.2 2280 M-key x 1 ,
FPC Connector x 1 FPC Connector x 1 FPC Connector x 1
TPM fTPM fTPM fTPM
Power +12V in (DC Jack) +12V in (DC Jack) +12V in (DC Jack)
Operating Temperature 0°C ~ 60°C 0°C ~ 60°C 0°C ~ 60°C
Others GPIO 8 bits GPIO 8 bits GPIO 8 bits

BVM Customisation Service

If you cant find an off the shelf product that meets your specific requirements speak with our in house design team who can customize an existing product or design a new product from start to finish.



If you’re unable to find an off-the-shelf product that meets your specific requirements, don’t hesitate to contact our in-house design team. They possess the expertise to customise an existing product to your exact specifications or embark on a fresh design journey to create a customized solution tailored to your requirements. Our design professionals are dedicated to delivering exceptional results, ensuring that the final product not only meets but exceeds your expectations. When you collaborate with our team, you open the door to a world of possibilities, where innovation and creativity converge to bring your vision to life.

Whether it’s modifying an existing product or crafting an entirely new one, our design experts are committed to providing you with a comprehensive, end-to-end solution that perfectly suits your needs. Your satisfaction is our top priority, and we’re here to turn your ideas into reality.



Design | Develop | Test | Manufacture

With over three decades of experience in designing custom industrial and embedded computer and display solutions across a wide array of industries, we’re here to turn your ideas into reality



Here’s a selection of our design, manufacturing & associated services: –

Design to Order Banner

Design to Order: OEM/ODM Embedded Product Design Services

For customers designing a brand-new product from scratch or working with an existing prototype.

Build to Order Banner

Build to Order: Embedded Computer Design and Customisation Services​

Take an existing system and we can:

Build to Order: Racks and Towers, Peli Case PCs and Mini-ITX PCs

Embedded Software Banner

Embedded Software Services : Configuration, Integration and Deployment

Porting, Integration & Deployment



ALL OUR DESIGN AND MANUFACTURING SERVICES INCLUDE:

Testing

Testing
Lifecycle

Materials Management
Logistics

Logistics and Tracking
Manufacturing

External Manufacturing
• Burn in Test
• Temp / Thermal Testing
• Environmental Testing
• Safety Testing
• Software Compatibility Test		 • Vendor Selection and Component Procurement
• Product Traceability
• Obsolescence, End of Life and Last Time Procurement Management
• Simple to use on-line RMA System		 • Traceability of Shipments
• Product Labelling
• OEM/Branded Packaging
• System Branding
• Custom Labels		 • Surface Mount: – High Speed Placement
• Conventional Through Hole Insertion & Assembly
• Automated Optical Inspection
• Bespoke PCB Test



Click here to find out more.
