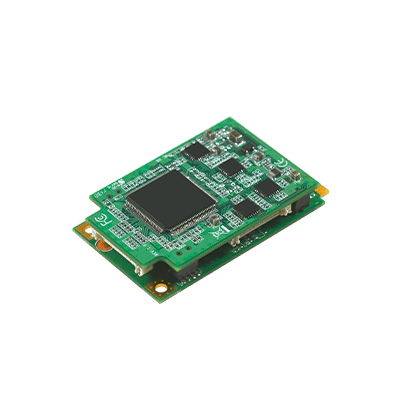

YUAN – SC3C0N4 MC – Mini PCIe – SD Capture Solution – 4 Channel COMPOSITE H.264

Yuan – SC3C0N4 MC – Mini PCIe – SD Capture Solution – Hardware Compression

Description

YUAN High-Tech, established in 1990, are an established video capture card provider for industrial applications, digital home entertainment, broadcasting, and surveillance markets. With their headquarters in Taipei, Taiwan, YUAN have been providing high-quality video/audio products for over30 years. Their focus is on serving system integrators and ODM’s on a global basis.

SC3C0N4 MC banner



Model SC3C0N4 MC
Max. FPS NTSC
120fps@960/720×480
PAL
100fps@960/720×576
Recording Mode Hardware Compression, Real-Time Mode
Dimension 30×50.95 ( mm )
Interface Minicard ( PCIe×1 )
ADC 10-Bit
Video Input 4×CVBS
Display Video Format YV12, NV12, YUY2, RGB24, RGB32
Display Video Resolution NTSC
960×480@29.97fps ( WD1 )
720×480@29.97fps ( D1 )
PAL
960×576@25fps ( WD1 )
720×576@25fps ( D1 )
Recording Video Format H.264 High Profile ( Hardware Compression )
Display Video Resolution NTSC

With WD1 NTSC Camera
960×480@29.97fps
720×480@29.97fps
704×240@29.97fps
480×240@29.97fps
352×240@29.97fps
240×120@29.97fps
176×120@29.97fps

With D1 NTSC Camera
720×480@29.97fps
704×240@29.97fps
480×240@29.97fps
352×240@29.97fps
240×120@29.97fps
176×120@29.97fps

PAL
With WD1 NTSC Camera
960×480@29.97fps
720×480@29.97fps
704×240@29.97fps
480×240@29.97fps
352×240@29.97fps
240×120@29.97fps
176×120@29.97fpsWith D1 NTSC Camera
720×480@29.97fps
704×240@29.97fps
480×240@29.97fps
352×240@29.97fps
240×120@29.97fps
176×120@29.97fps
Audio Input 4×Pin
Audio Format Mono / 16-Bit / 48000Hz
Multiple Cards
SDK Support API : DirectShow, V4L2, FFmpeg, Gstreamer
Support Language : C++, C#, .NET, Visual Basic, Qt, Delphi
System Requirement
OS Support Windows 7 / Windows 8 / Windows 8.1 / Windows 10
Linux 2.6.14 or Higher ( 32-bit and 64-bit )
