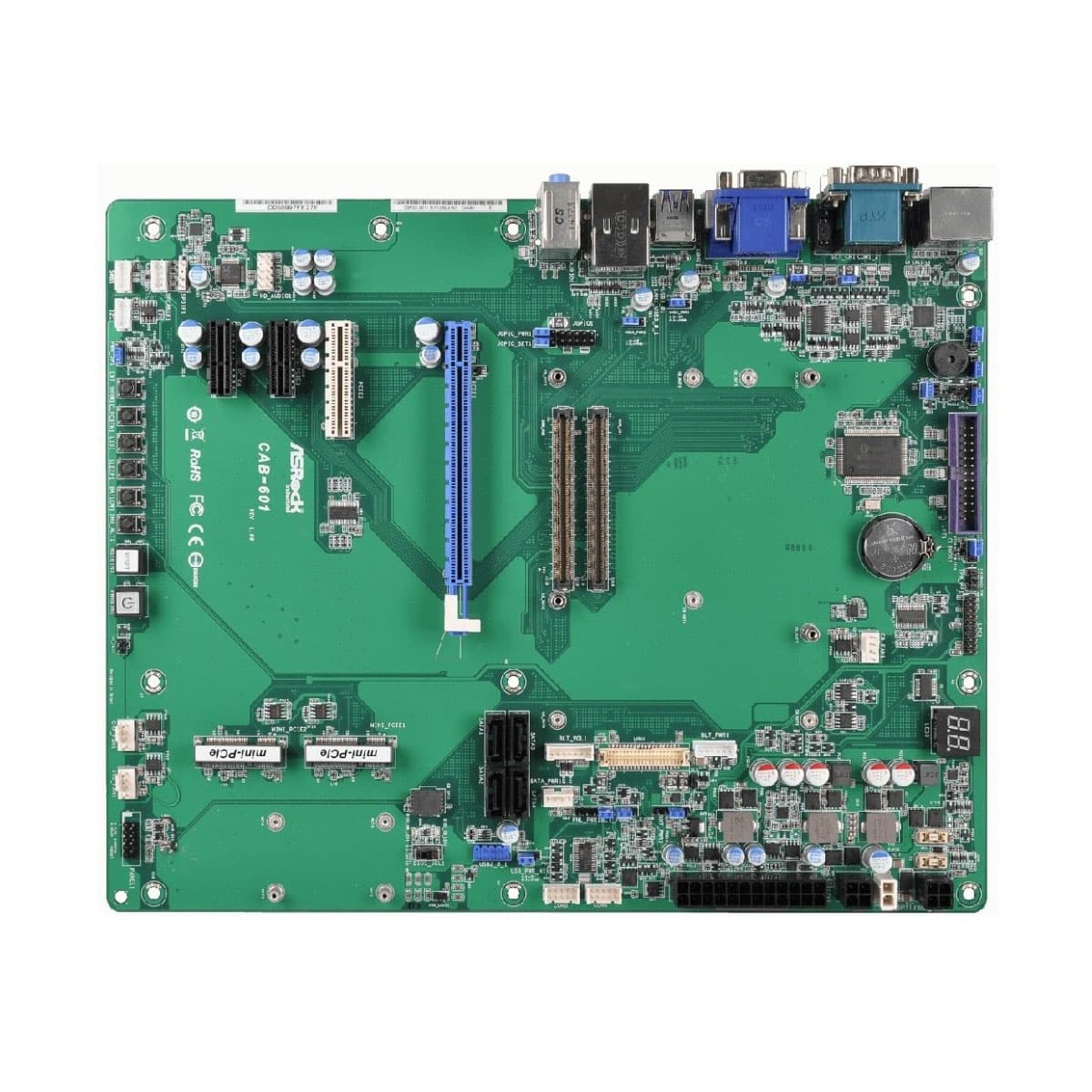

ASRock Industrial CAB-601 COM Express – ATX Carrier Board

  • Product Name: Asrock CAB-601
  • Motherboard Form Factor: ATX Carrier Board
  • CPU: Not specified
  • RAM: Not specified
  • Expansion: Supports COM Express Basic/Compact/Mini Module, 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1, 2 x M.2 Key E
  • Other features: COM Express Type 6 Pin Out, Supports 3 Digital Display Interfaces (DDI) with HDMI/DisplayPort output, 4 x USB3.2 (Gen2), 2 x USB 2.0, 4 x COM, 4 x SATA3, 1 x Intel 2.5 Gigabit LAN, ATX PWR (24+4-pin) and 9~24V DC-in (4-pin) co-design
Product Compare

Description

Features

  • COM Express Type 6 Pin Out
  • Supports COM Express Basic/Compact/Mini Module
  • Supports 3 Digital Display Interfaces (DDI) with HDMI/DisplayPort output
  • 1 x PCIe x16, 1 x PCIe x4, 2 x PCIe x1, 4 x USB3.2 (Gen2), 2 x USB 2.0, 2 x M.2 Key E, 4 x COM, 4 x SATA3
  • 1 x Intel 2.5 Gigabit LAN
  • ATX PWR (24+4-pin) and 9~24V DC-in (4-pin) co-design

Specifications

Form Factor
Dimensions ATX (9.6-in x 12-in)
Processor System
CPU By CPU Board
BIOS UEFI
Expansion Slots
PCIe 1 x PCI x16 slot, 1 x PCIe x4 slot, 2 x PCIe x1 slots
Mini-PCIe 1xhalf/full (supports PCIex1 & USB device) (Depend on COM-Express Module)
mSATA N/A
Memory
Technology By CPU Board
Max. By CPU Board
Socket By CPU Board
Graphics
Controller By CPU Board
VRAM By CPU Board
VGA By CPU Board
DVI N/A
LVDS By CPU Board
HDMI By CPU Board
DisplayPort By CPU Board
Multi Display By CPU Board
Ethernet
Ethernet By CPU Board
Controller By CPU Board
Storage
Max Data Transfer Rate By CPU Board
Rear I/O
VGA 1
DVI N/A
HDMI 1
DisplayPort 2
Ethernet 1
USB 4 x USB 3.0 Ports
Audio 3 (Mic-in, Line-in, Line-out)
Serial 2
PS2 1 x PS/2, By Carrier Board
Internal Connectors
USB 2 x USB 2.0
LVDS / inverter 1
eDP 1
VGA N/A
Serial 2 (TX/RX Only)
SATA 4
Parallel 1
mSATA N/A
IrDA N/A
GPIO 4 x GPI, 4 x GPO, By Carrier Board
SATA PWR Output 1, By Carrier Board
Speaker Header By Carrier Board
Watchdog Timer
Interval 1,2…255 Sec
Power Requirements
Input PWR 24-pin / 4-pin ATX PWR Con
Power On AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Environment
Temperature 0°C – 60°C
Storage Temp -40°C – 85°C



The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
